Tie Rod Repairable Food Grade All Stainless Steel Pneumatic Cylinders For Corrosion Resistance Applications 1

Tie Rod Repairable Food Grade All Stainless Steel Pneumatic Cylinders For Corrosion Resistance Applications 2

Tie Rod Repairable Food Grade All Stainless Steel Pneumatic Cylinders For Corrosion Resistance Applications 3

Tie Rod Repairable Food Grade All Stainless Steel Pneumatic Cylinders For Corrosion Resistance Applications 4

Tie Rod Repairable Food Grade All Stainless Steel Pneumatic Cylinders For Corrosion Resistance Applications 5

Tie Rod Repairable Food Grade All Stainless Steel Pneumatic Cylinders For Corrosion Resistance Applications

The NTA SMBB Series is an all stainless-steel tie rod pneumatic cylinder designed to work in the toughest wash down applications, shaft diameter ranges 32mm, 40mm, 50mm, 63mm, 80mm, 100mm, 125mm. NTA Stainless steel cylinders have long service life and deliver excellent performance in variety of industries and applications where corrosion resistance and clean surface is needed. The SMBB pneumatic cylinder components can be disassembled easily, that allows replacement of seals, tie rods, stainless steel air cylinder shaft, which promotes an extended operate life.

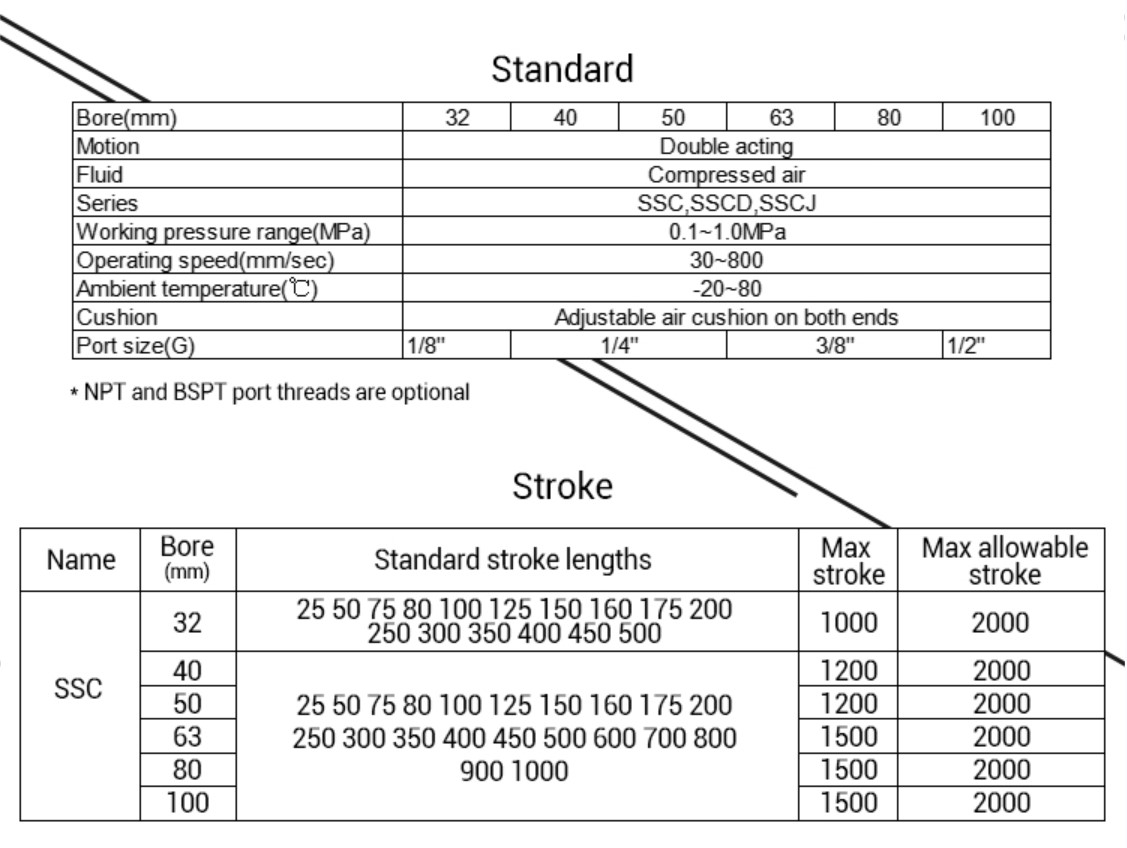

Brand Name: NTA

Cylinder standard: Tie rod all stainless steel cylinder

Bore ID range: 32mm~100mm

Motion: Double acting

Fluid: Compressed air

Working pressure: 14.5~145Psi

Cushion type: Adjustable air cushion

Ambient temperature: -10~70℃

Port size: 1/8'',1/4'',3/8'',1/2''NPT

Inquiry

Write a Review

Product feature

1.Repairable stainless steel cylinders
2.Bore diameter 32mm,40mm,50mm,63mm,80mm,100mm
3.Tie rod structure, high strength
4.Using stainless steel material for complete cylinder
5.Strong corrosion resistance, high acid and alkaline resistance
6.Smooth cushioning effect
7.Various stainless steel mounting parts for choice
8.High temperature, high corrosion resistance sealing is optional

Tie Rod Repairable Food Grade All Stainless Steel Pneumatic Cylinders For Corrosion Resistance Applications 6
