All Stainless Steel Compact Pneumatic Air Cylinders High Quality Corrosion Resistant for Chemical Food&Beverage Equipme 1

All Stainless Steel Compact Pneumatic Air Cylinders High Quality Corrosion Resistant for Chemical Food&Beverage Equipme 2

All Stainless Steel Compact Pneumatic Air Cylinders High Quality Corrosion Resistant for Chemical Food&Beverage Equipme 3

All Stainless Steel Compact Pneumatic Air Cylinders High Quality Corrosion Resistant for Chemical Food&Beverage Equipme 4

All Stainless Steel Compact Pneumatic Air Cylinders High Quality Corrosion Resistant for Chemical Food&Beverage Equipme 5

All Stainless Steel Compact Pneumatic Air Cylinders High Quality Corrosion Resistant for Chemical Food&Beverage Equipme

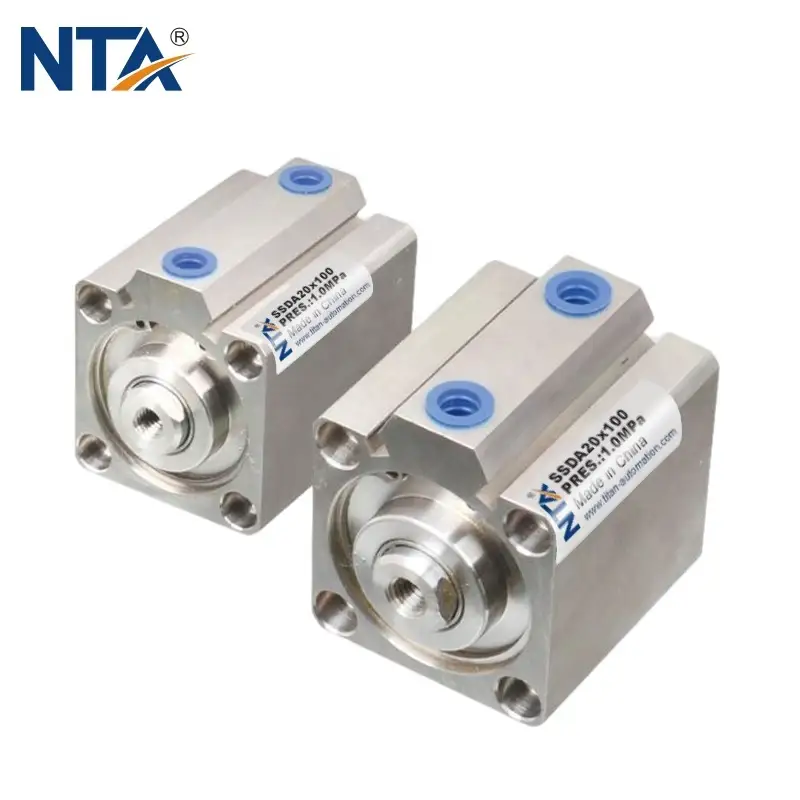

NTA series SSDA all stainless steel compact pneumatic cylinder is dimensionally interchangeable with AIRTAC SDA compact pneumatic cylinder, its stainless steel material provides satisfied corrosion resistance and support to work in tough caustic and washdown applications and require a short stroke within a very limited space. They have bumper cushions on both ends, they are easy to maintain and repair. There are two slots for pneumatic cylinder reed switches, you can choose pneumatic fitting, pneumatic solenoid valve, pneumatic cylinder flow control valve to use together with our cylinders to make a pneumatic cylinder control system.

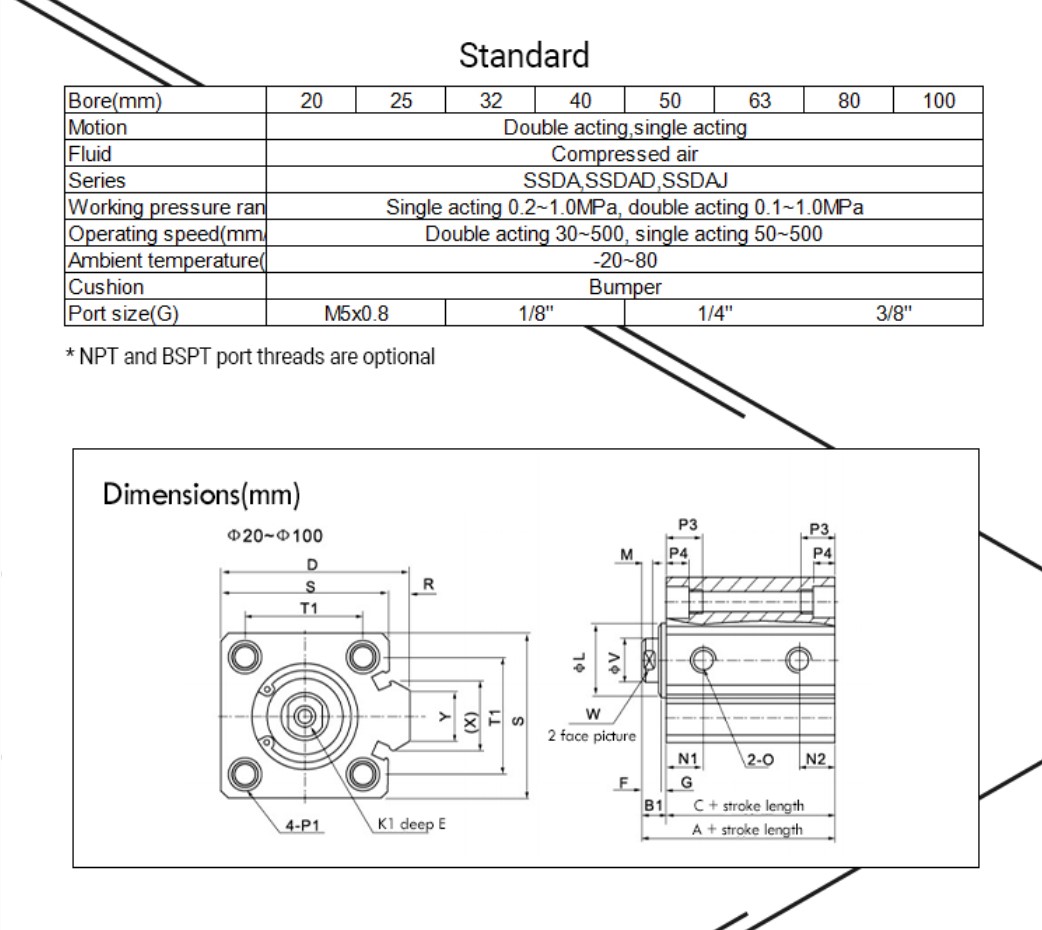

Brand Name: NTA

Cylinder standard: All stainless steel

Bore ID range: 20mm~100mm

Motion: Single acting/double acting

Fluid: Compressed air

Working pressure: 14.5~145Psi

Cushion type: Bumper

Ambient temperature: -10~70℃

Port size: M5x0.8, 1/8'', 1/4'', 3/8''

Inquiry

Write a Review

Product feature

1.Repairable stainless steel cylinders

2.Using seal rings from big brands
3.Using stainless steel material for complete cylinder
4.Strong corrosion resistance, high acid and alkaline resistance

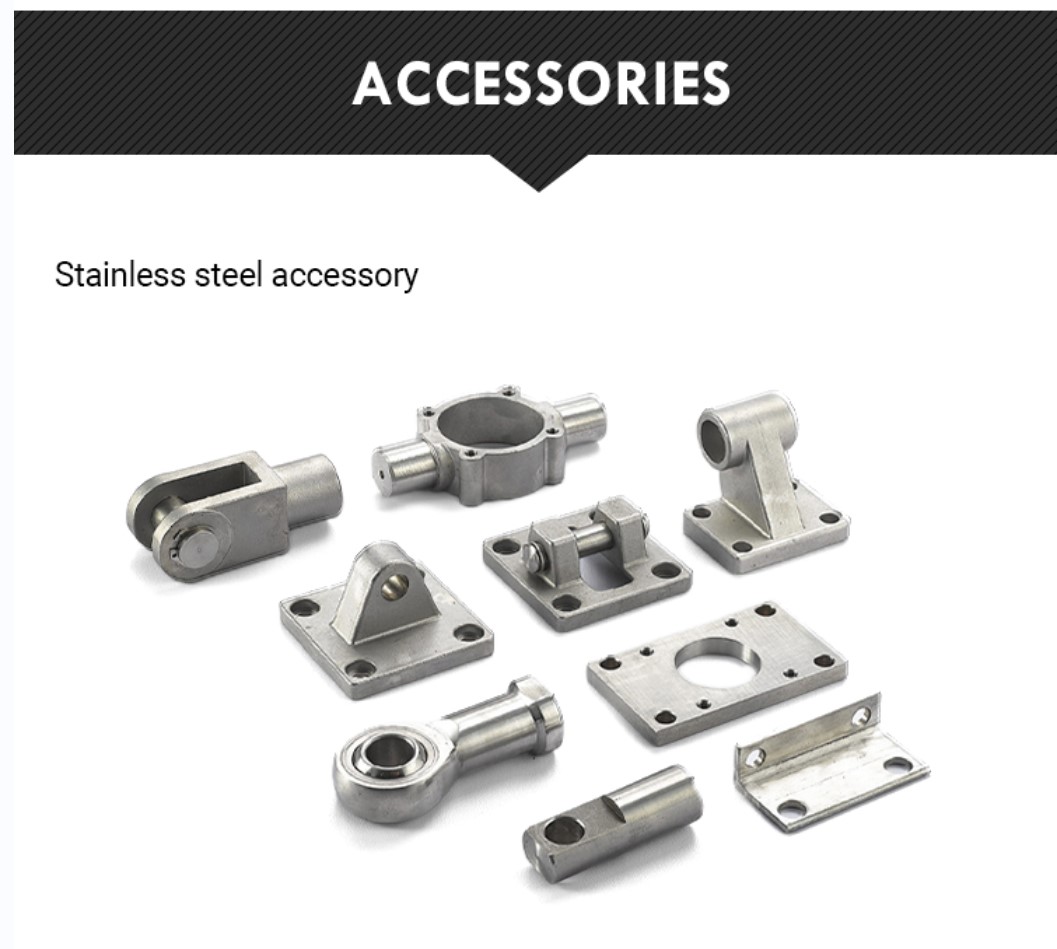

5.Various stainless steel mounting parts for choice
6.High temperature, high corrosion resistance sealing is optional
7.After 3 times of precision grinding and burnishing, barrel inner wall friction factor reaches 0.02

All Stainless Steel Compact Pneumatic Air Cylinders High Quality Corrosion Resistant for Chemical Food&Beverage Equipme 6
