NFPA Interchangeable Pneumatic Cylinders, 1.5" ~ 5" Size

Repairable, pneumatic heavy-duty cylinder conforming to NFPA, with tie rods, NPT cylinder connections, piston rod threads in inches, and all other dimensions in inches too. The cost-optimized design makes this an ideal choice for OEM machinery manufacturers. Sturdy construction with stainless steel tie rods makes this cylinder highly suitable for industries like construction, agriculture, packaging, and the automotive industry.

Competitive interchangeability with NFPA aluminum cylinders
Larger wear band achieves longer cylinder life than competitive cylinders
File-hard, high-strength aluminum alloy tube provides a smooth, corrosion-free sealing surface and excellent abrasion resistance
High-strength steel piston rod has a ground, polished, and hard chrome-plated surface providing maximum bushing and seal life
Improved port design allows increased flow rate
Easy to install with over 16 available mounting styles, plus a wide range of standard fittings and rod ends
Equipped for magnetic position detectors

Brand Name: NTA

Cylinder standard: NFPA

Bore ID range: 1.5in~5.0in

Motion: Double/single acting

Fluid: Compressed air

Working pressure: 14.5~145Psi

Cushion type: Adjustable air cushion/fixed cushion

Ambient temperature: -10~70℃

Port size: 3/8'',1/2''NPTF

Inquiry

download

NFPA Cylinder Catalog.pdf

Write a Review

NFPA Cylinder Highlights

This Professional NFPA Cylinders is Titan Automation's cost optimized NFPA interchangeable pneumatic cylinder. The corrosion resistant and robust design along with a wide range of options makes it ideal for OEMs. Titan Automation manufacturer this range of NFPA cylinders in the China providing reliable quality and delivery you can count on.

• 303 stainless steel, hard chrome-plated piston rod
• Anodized aluminum body and end caps
• Low friction Nitrile seals
• Premium lubrication for maintenance-free performance
• Oil-impregnanted piston rod bushing and seals
• Air cushioning and magnetic piston are standard

Give us a call today and let our experts at Pneumatic Cylinders & Couplers help get you set up with our custom Stainless Steel NFPA Cylinders.

NFPA Interchangeable Pneumatic Cylinders, 1.5 ~ 5 Size 5

NFPA interchange cylinder

Titan Automation interchangeable cylinders at a glance, key product feature overview

NFPA Interchangeable Pneumatic Cylinders, 1.5 ~ 5 Size 6

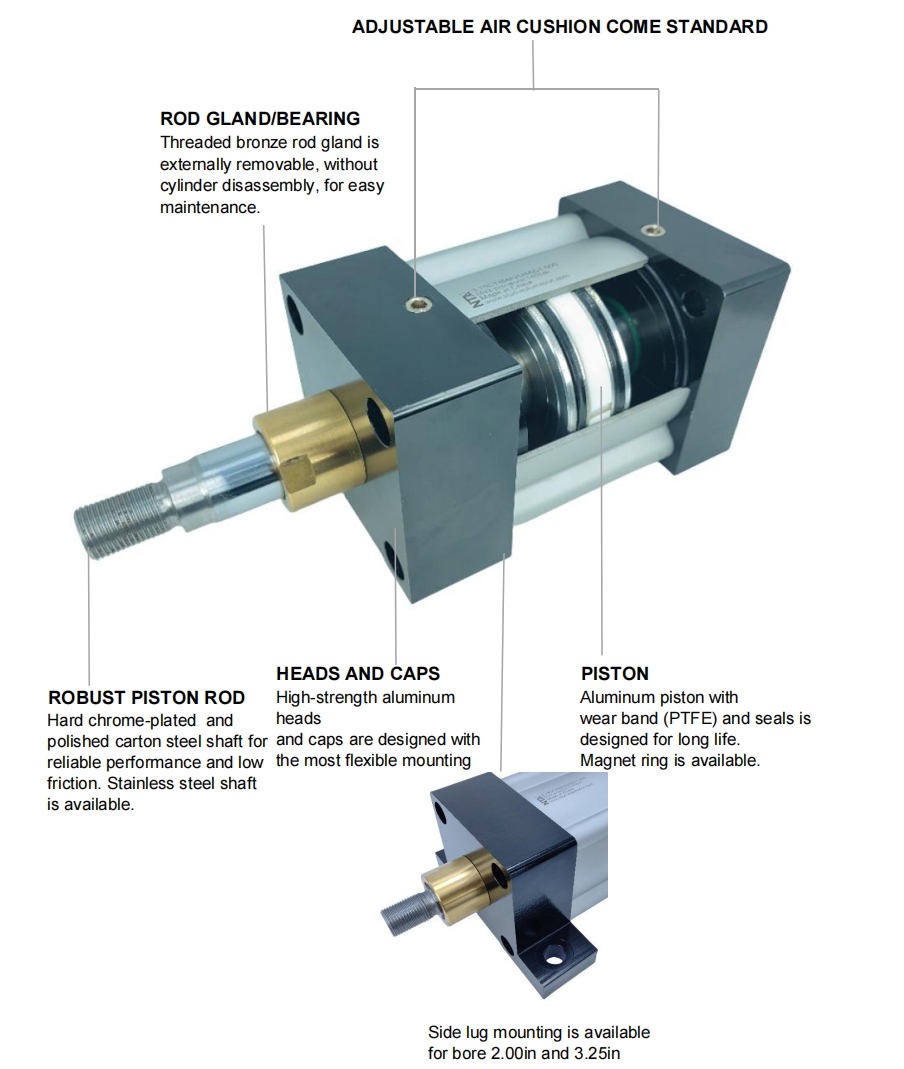

Key Features Overview

1. Built-in value:
• Adjustable air cushions come standard
• Magnetic piston for position sensing standard

2. Robust piston rod:
• Hard chrome-plated 303 stainless steel shaft
• Roll-formed rod thread enables high strength connections

3. Anodized barrel
• Hard anodized ID provides smooth, low friction surface for piston seal. Improving performance and cycle life
• Clear anodized OD offers additional corrosion resistance

4. Corrosion resistant design:
• Anodized aluminum barrel and end caps
• Stainless steel tie-rods and piston rod
• Composite rod bushing

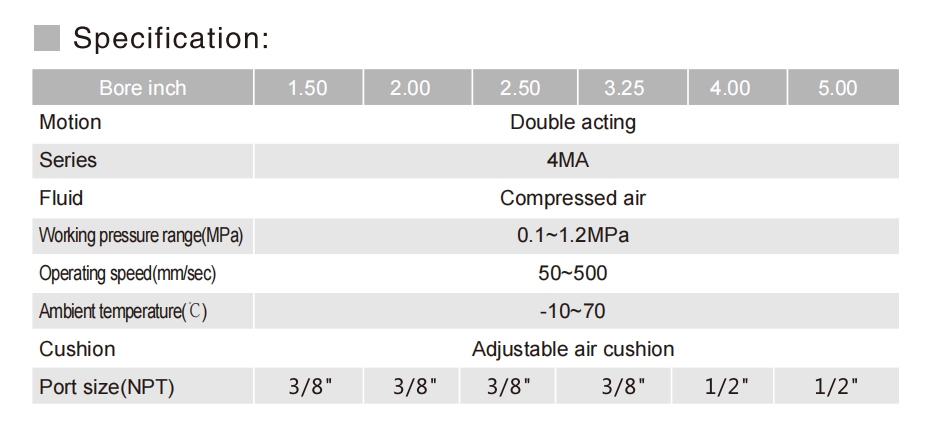

Specifications

Performance and reliability

Superior performance due to 303 stainless steel piston rod, stainless steel tie-rods and anodized aluminum housing and end caps provide corrosion resistance and long life.

Oil-impregnated piston rod bushing and low friction seals create a pneumatic cylinder withefficient performance, superior service life and reliability.

Premium lubrication and hard anodized cylinder ID provides excellent running characteristics and outstanding efficiency.

NFPA Interchangeable Pneumatic Cylinders, 1.5 ~ 5 Size 7

NFPA Interchangeable Pneumatic Cylinders, 1.5 ~ 5 Size 10

Applications:

NFPA-standard cylinders serve as integral components in diverse industries, contributing to precise motion control and automation. These cylinders find application in various sectors, including:

Sustainable Energy: Deployed in wind turbines and solar power systems for accurate positioning and maintenance.

Telecommunications: Utilized for efficient movement in antenna positioning systems and satellite dish adjustments.

Biotechnology: Applied in laboratory automation and medical diagnostic equipment for precise sample handling.

Semiconductor Manufacturing: Employed in wafer handling and semiconductor processing equipment for controlled movements.

Maritime Industry: Used in shipbuilding and maintenance for precise control in lifting and positioning heavy components.

Entertainment Technology: Incorporated in stage automation for smooth and controlled movements in theaters and concert venues.

Textile Machinery: Deployed in textile manufacturing for precise control in processes such as weaving and fabric handling.

Research and Development: Utilized in laboratories and research facilities for controlled movements in testing and experimentation.

Rail Transportation: Applied in rail systems for controlled door movements, braking, and other critical functions.

Environmental Monitoring: Utilized in environmental monitoring equipment for precise sensor adjustments and data collection.

NFPA-compliant cylinders play a crucial role in enhancing automation, efficiency, and precision across a wide range of industries.
