DZ Safe On-Off Valve

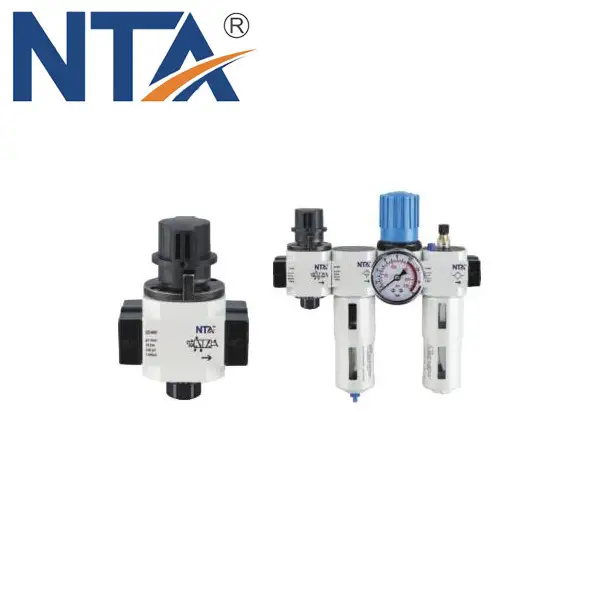

DR regulator is an ecnomic replacement of FESTO D seriesLR/LRS regulator made in China,  it saves space and require less piping. Easy to hold when unlocked. it is a reliable compressed air preparation for applications in uncritical environments, freely combinable within the NTA D series FRL. Port thread M5, 1/8'', 1/4'', 3/8'', 1/2'', 3/4'', 1''. Working pressure from 0.15MPa to 1.2MPa, max input air pressure at 1.6MPa. Max flowrate from 500L/min to 11500L/min. The complete series of regulator is offered with pressure gauge. Panel mounting and fixed bracket mounting is optional.

0.15~1.2MPa
                               500~11500 L/min
                               Compressed air
                               M5 ·G1/8·G1/4·G3/8·G1/2·G3/4·G1

DFR Filter regulator is an Integrated filter and regulator units, it is an ecnomic replacement of FESTO D series FRL LFR/LFRS filter regulator made in China,  it saves space and require less piping. Easy to hold when unlocked. it is a reliable compressed air preparation for applications in uncritical environments, freely combinable within the NTA D series FRL. DFR 200 to DFR600 have a metal bow guard, port thread M5, 1/8'', 1/4'', 3/8'', 1/2'', 3/4'', 1''. Working pressure from 0.15MPa to 1.2MPa, max input air pressure at 1.6MPa. Max flowrate from 500L/min to 11500L/min. Grade of filtration 40 µm and 5 µm optional. Differential pressure drain and auto drain are available, special guide structure makes the flowing gas spin properly to seperate the water from compressed air and filter solid particals efficiently.  The complete series of filter regulator is offered with pressure gauge.

0~1.2MPa
                               Compressed air
