DR Regulator

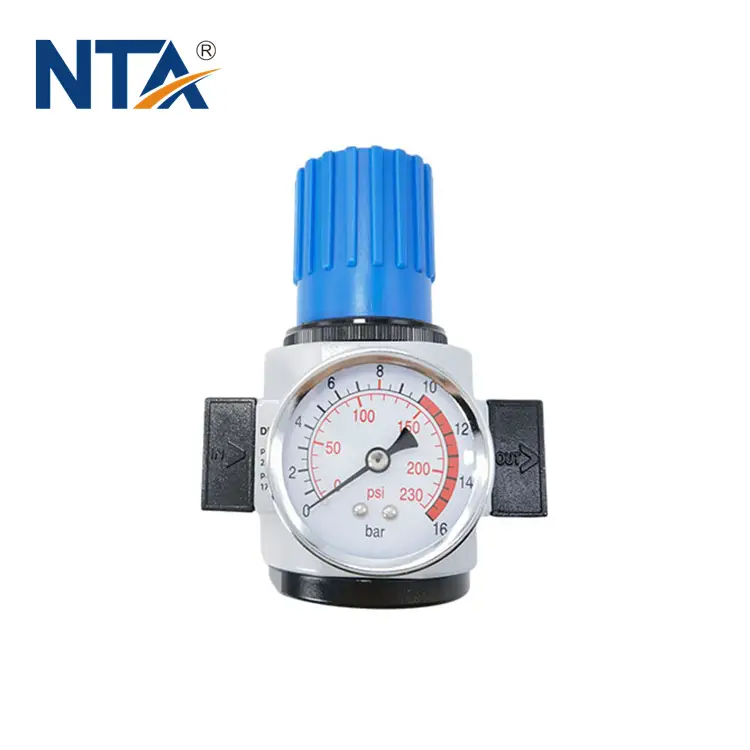

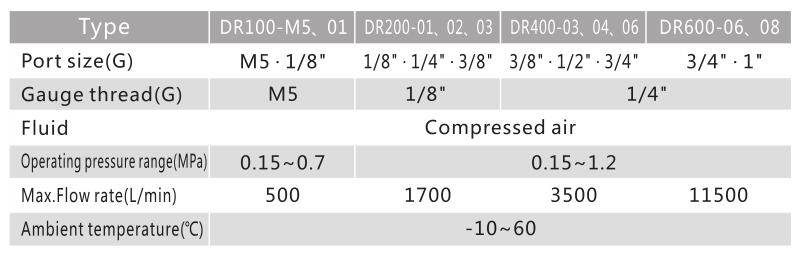

DR regulator is an ecnomic replacement of FESTO D seriesLR/LRS regulator made in China, it saves space and require less piping. Easy to hold when unlocked. it is a reliable compressed air preparation for applications in uncritical environments, freely combinable within the NTA D series FRL. Port thread M5, 1/8'', 1/4'', 3/8'', 1/2'', 3/4'', 1''. Working pressure from 0.15MPa to 1.2MPa, max input air pressure at 1.6MPa. Max flowrate from 500L/min to 11500L/min. The complete series of regulator is offered with pressure gauge. Panel mounting and fixed bracket mounting is optional.
