MSQ Slotted(non return) Brass/Metal Elbow Type/Universal Type/Push-lock Type Throttle Control Valve 1
MSQ Slotted(non return) Brass/Metal Elbow Type/Universal Type/Push-lock Type Throttle Control Valve 1

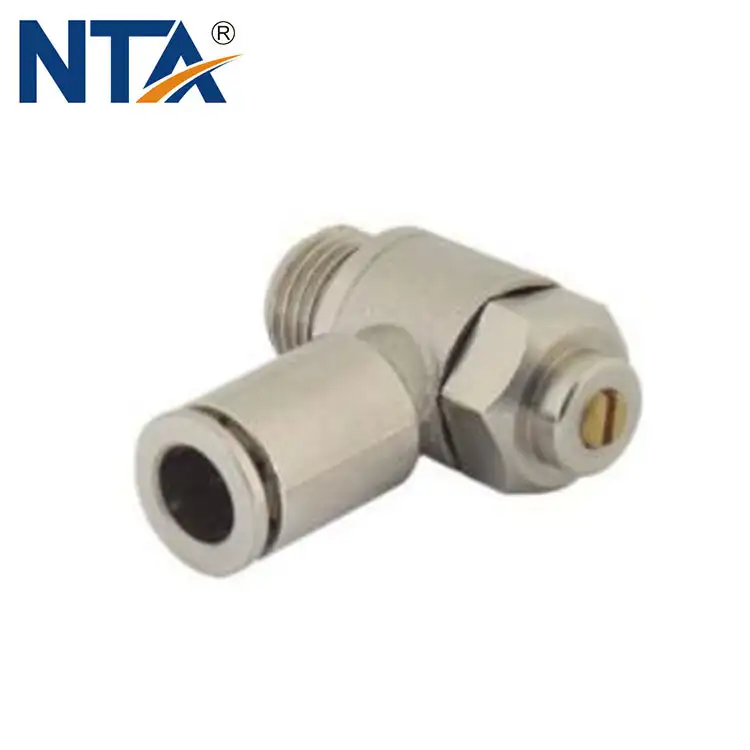

MSQ Slotted(non return) Brass/Metal Elbow Type/Universal Type/Push-lock Type Throttle Control Valve

NTA MSQ slottednon return brass/metal elbow type/universal type/push-lock type throttle control valve/air flow control valve/pneumatic flow control valve/air flow controller/flow control regulator is used to control action speed of pneumatic cylinder/pneumatic actuators by control air flowrate in the pneumatic system, it precisely permit the optimal rate of airflow for the smooth cylinder movement of driving devices, the compact design provides a comparable range of speed as the conventional speed control do. Electroless nickel plated type is standard. Uni-directional airflow is available for either exhaust or inlet flow control methods. 360°swivel piping is possible. It is suitable for use with nylon and urethane tube, large retaining force, it can be used for a wide range of pressures from a low vaccum up to a high pressure of 1.6MPa/232PSI, long lifetime, air through and break life cycle number reaching 17.4 million cycles, it is 2.8 to 348 times of lifetime from other Chinese fitting suppliers0.05 to 6.3 millions cycles.  The air fitting structurepush in fitting/one touch fitting  is quick installation, simple and flexible, space-saving, easy to connect tube by one touch.

Workingpressure
0~1.6MPa
TubeOD
4, 6, 8, 10, 12, 14, 16mm
Fluid
Air
Lifetime
Longlifetime16MillionCycles(closewithFESTO)

    Ой ...!

    Нет данных о продукте.

    перейдите на домашнюю страницу

    Спецификация

    MSQ 参数.jpg



    Рекомендуется
    MSL-G Brass/Metal Elbow Type/Universal Type/Push-lock Type Throttle Control Valve/Air Flow Control Valve
    NTA MSL-G G thread/BSPP male thread, brass/metal elbow type/universal type/push-lock type throttle control valve/air flow control valve/pneumatic flow control valve/air flow controller is used to control action speed of pneumatic cylinder/pneumatic actuators by control air flowrate in the pneumatic system, it precisely permit the optimal rate of airflow for the smooth cylinder movement of driving devices, the compact design provides a comparable range of speed as the conventional speed control do. Electroless nickel plated type is standard. Uni-directional airflow is available for either exhaust or inlet flow control methods. 360°swivel piping is possible. It is suitable for use with nylon and urethane tube, large retaining force, it can be used for a wide range of pressures from a low vaccum up to a high pressure of 1.6MPa/232PSI, long lifetime, air through and break life cycle number reaching 17.4 million cycles, it is 2.8 to 348 times of lifetime from other Chinese fitting suppli...
    SA встроенный тип/универсальный тип/клапан управления дроссельной заслонкой типа Type-Lock/клапан управления потоком воздуха/пневматический клапан потока потока
    NTA SA встроенный встроенный тип/универсальный тип/тип клапана дроссельной заслонки дроссельной заслонки/клапана управляющего клапана пневматического потока/контроллер воздушного потока используется для контроля скорости действия пневматического цилиндра/пневматического приступа. Используя в ограниченном пространстве, компактная конструкция обеспечивает сопоставимый диапазон скорости, как это делает обычный контроль скорости. Универсальный воздушный поток доступен для методов управления выхлопной точкой или впускной потоком. Поворотный трубопровод 360 °. Он подходит для использования с нейлоновой и уретановой трубкой, большой подпорной силой, он может использоваться для широкого спектра давлений от низкого ваккума до высокого давления 1,2 млн./174 фунтов на дюйм, длительный срок службы, воздух через и разбивает число жизненных циклов, достигающих 17,4 миллиона циклов, это 2,8 до 348 раза времени жизни от других китайских поставщиков .0.05
    SL-G Elbow Type/Universal Type/Push-lock Type Throttle Control Valve/Air Flow Control Valve/Pneumatic Flow Control Valve
    NTA SL-G G thread/BSPP male thread, elbow type/universal type/push-lock type throttle control valve/air flow control valve/pneumatic flow control valve/air flow controller is used to control action speed of pneumatic cylinder/pneumatic actuators by control air flowrate in the pneumatic system, it precisely permit the optimal rate of airflow for the smooth cylinder movement of driving devices, the compact and light body permits use in confined space, the compact design provides a comparable range of speed as the conventional speed control do. Electroless nickel plated type is standard. Uni-directional airflow is available for either exhaust or inlet flow control methods. 360°swivel piping is possible. It is suitable for use with nylon and urethane tube, large retaining force, it can be used for a wide range of pressures from a low vaccum up to a high pressure of 1.2MPa/174PSI, long lifetime, air through and break life cycle number reaching 17.4 million cycles, it is 2.8 to 348 times ...
    MSLL Universal Brass Elbow/Universal Type/Push-lock Type Throttle Control Valve/Air Flow Control Valve
    NTA MSLL universal brass speed controller/universal push-lock type throttle control valve/air flow control valve/pneumatic flow control valve/air flow controller/flow control regulator is used to control action speed of pneumatic cylinder/pneumatic actuators by control air flowrate in the pneumatic system, it precisely permit the optimal rate of airflow for the smooth cylinder movement of driving devices, the compact design provides a comparable range of speed as the conventional speed control do. Electroless nickel plated type is standard. Uni-directional airflow is available for either exhaust or inlet flow control methods. 360°swivel piping is possible. It is suitable for use with nylon and urethane tube, large retaining force, it can be used for a wide range of pressures from a low vaccum up to a high pressure of 1.6MPa/232PSI, long lifetime, air through and break life cycle number reaching 17.4 million cycles, it is 2.8 to 348 times of lifetime from other Chinese fitting suppli...
