Low Profile Pneumatic Compact Cylinder SDA  for Robotics and Automation 1
Low Profile Pneumatic Compact Cylinder SDA  for Robotics and Automation 1

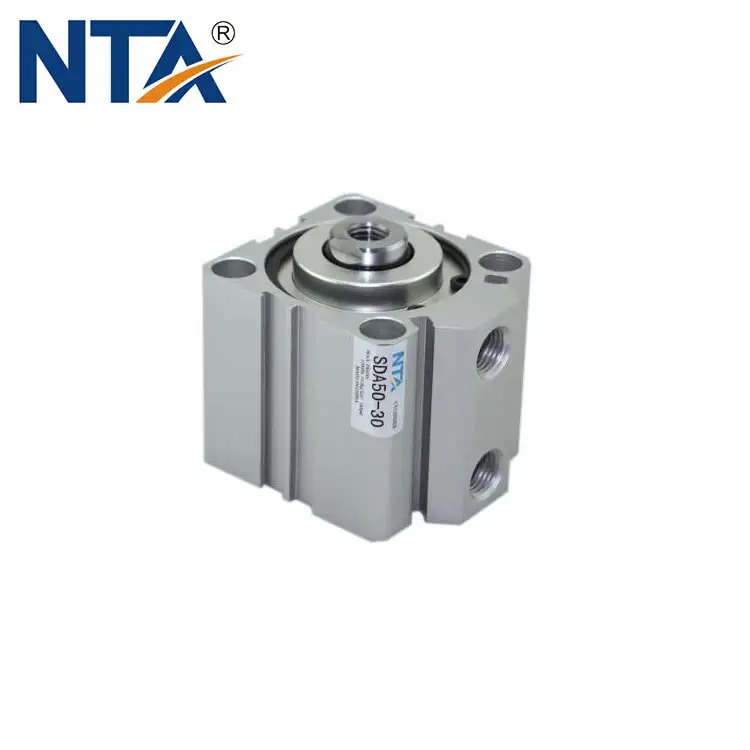

Low Profile Pneumatic Compact Cylinder SDA for Robotics and Automation

 NTA series SDA square compact pneumatic cylinder is a light weight, space saving, it is designed for applications where cylinder length is critical. It is ideal for simple assembly and clamping movements, narrow installation space, and short strokes.Bore diameter ranges from 12mm to100mm, stroke length from 5mm to 50mm.NTA series SDA flat pneumatic cylinder designed for innovative, compact structure and easy to clean.The sensors can be mounted quickly and easily on 4 surfaces and over the complete cylinder lengths.Cylinder barrel consists of a extruded aluminium profile, front and rear covers are pressed in the barrel, it is easy to clean and preventing the accumulation of dusts.Threaded through-holes in 4 corners allow to install short stroke pneumatic cylinder directly to equipments, all range with built in magnet on piston so you can use auto swtiches to control extending or retracting.Mounting options: Clevis foot mounting, direct mounting.Welcome to contact sales@titan-automation.com
Bore ID range
12mm~100mm
Motion
Double acting
Fluid
Compressed air
Working pressure
0.1~1.0MPa

    oops...!

    no product data.

    Go to homepage

    Specification

    Low Profile Pneumatic Compact Cylinder SDA  for Robotics and Automation 2

    Low Profile Pneumatic Compact Cylinder SDA  for Robotics and Automation 3

    How to order


    Drawings

    Low Profile Pneumatic Compact Cylinder SDA  for Robotics and Automation 5

    Low Profile Pneumatic Compact Cylinder SDA  for Robotics and Automation 6

    Low Profile Pneumatic Compact Cylinder SDA  for Robotics and Automation 7

    Low Profile Pneumatic Compact Cylinder SDA  for Robotics and Automation 8

    Low Profile Pneumatic Compact Cylinder SDA  for Robotics and Automation 9

    Low Profile Pneumatic Compact Cylinder SDA  for Robotics and Automation 10







    Recommended
    Single Acting Double Acting Compact Pneumatic Cylinder CQ2 Series
    NTA Series CQ2 square body economical space saving compact air cylinder is suitable for a variety of applications,compact extruded cylinder barrels and end caps are hard anodized, extruded aluminum and are factory lubricated for best performance and reliability.The cylinders are compact and up to 30% lighter than interchangeable cylinders from other pneumatic parts suppliers. Auto switch mounting slots are built on 4 sides of the bodies, all series include a built-in magnet in the piston, steel piston rod is hard chrome plated.They can be used for clamping, ejecting, blocking, pushing/pulling, lifting, pick-up motion, product assembly, stamping, and tensioning applications. Our double-acting compact air ram cylinders use compressed air for both the extension and retraction of the piston, single-acting compact cylinder pneumatic use compressed air for extension and spring force to retract piston or the opposite way.
    Square Flat Pneumatic Cylinder NTC Compact Air Cylinder for Tight Spaces
    NTA series NTC square flat air cylinders with their square and compact design can be used in various of applications. Their smooth cylinder body together made by hard anodized aluminium material, include a clean appearance and no spaces for dirt and debris to collect, make the cylinder ideal for the beverage industry, machine tool manufacturing, packaging, printing, food processing and some other applications with high requirements of limited cylinder size. They are dimensionally interchangeable with Bimba flat pneumatic cylinder. You can use cylinders together with our air directional valves, pneumatic push in fittings, speed contollers and other pneumatic parts.
    Multi-pressure Compact Pneumatic Cylinder NTA SDAT for Industrial Processes
    NTA series SDAT multi force compact air cylinder is a cylinder design defined by a series of compact air cylinders by connecting two,three or MAX four pistons in series, the force of the cylinder can be multiplied accordingly. SDAT high force pneumatic pusher cylinder provides 2,3 or 4 times of force by connecting 2,3 or 4 cylinders,the accumulative force is transmitted to the first piston rod. It uses PU or NBR sealings to reach good sealing performance, both with magnet ring or without magnet ring types are optional, auto switch slots are located on 4 surfaces.  Both front cap and rear cap has a fixed bumper to reduce the impact force for cylinder. Welcome to contact us for more prices.
    High Force Multi-position Compact Cylinder NTA SDAP Automation of Machines
    NTA series SDAP multi-position tandem compact air cylinder is connected by two SDA compact cylinders arranged in linear for doubling the pushing force in both directions of stroke.Both of the tandem have magnetic pistons and can be sensed by pneumatic cylinder auto switch. The sensors can be easily mounted on 4 cylinder surfaces without any other accessories. Only one piston rod is visible with this cylinder, it moves to different locations in one direction. Welcome to visit www.titan-automation.com
