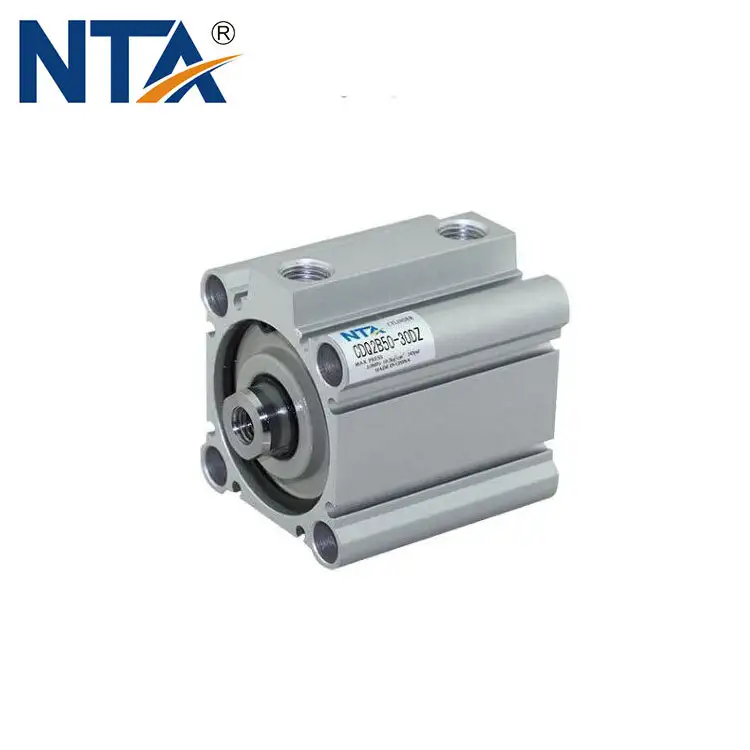

Single Acting Double Acting Compact Pneumatic Cylinder CQ2 Series
Single Acting Double Acting Compact Pneumatic Cylinder CQ2 Series
  • Single Acting Double Acting Compact Pneumatic Cylinder CQ2 Series
  • Single Acting Double Acting Compact Pneumatic Cylinder CQ2 Series

Single Acting Double Acting Compact Pneumatic Cylinder CQ2 Series

NTA Series CQ2 square body economical space saving compact air cylinder is suitable for a variety of applications,compact extruded cylinder barrels and end caps are hard anodized, extruded aluminum and are factory lubricated for best performance and reliability.The cylinders are compact and up to 30% lighter than interchangeable cylinders from other pneumatic parts suppliers. Auto switch mounting slots are built on 4 sides of the bodies, all series include a built-in magnet in the piston, steel piston rod is hard chrome plated.They can be used for clamping, ejecting, blocking, pushing/pulling, lifting, pick-up motion, product assembly, stamping, and tensioning applications. Our double-acting compact air ram cylinders use compressed air for both the extension and retraction of the piston, single-acting compact cylinder pneumatic use compressed air for extension and spring force to retract piston or the opposite way.
SEND INQUIRY NOW
Bore ID range
12mm~125mm
Motion
Double acting
Fluid
Compressed air
Working pressure
0.1~1.0MPa
SEND INQUIRY NOW
  • Product Details

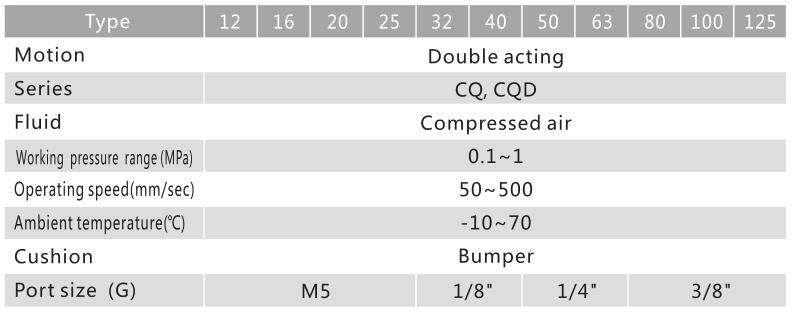

Specification

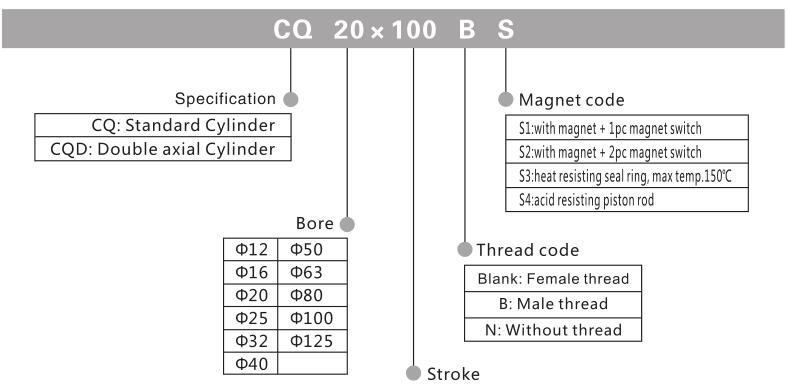

How to order

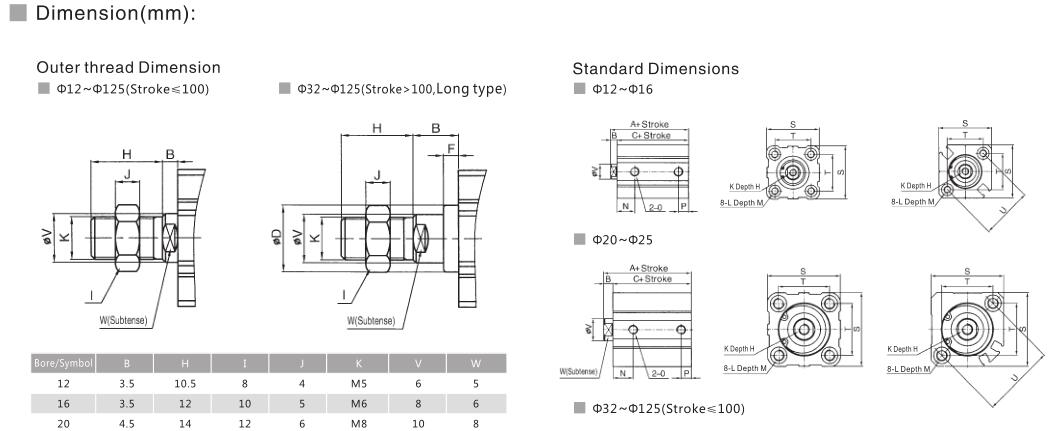

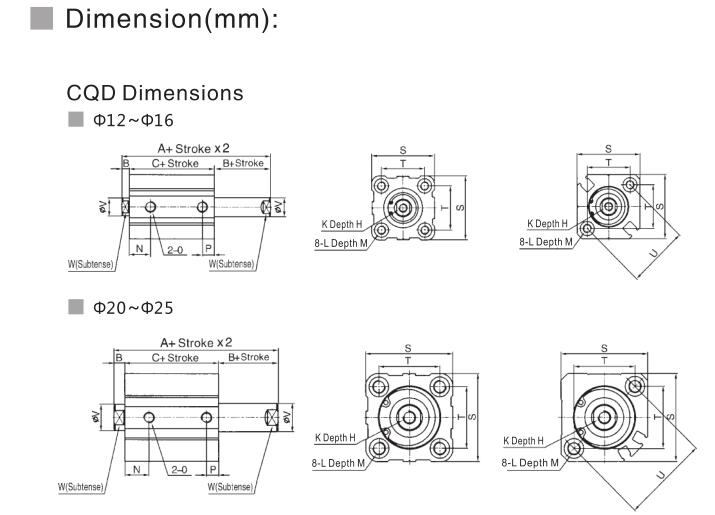

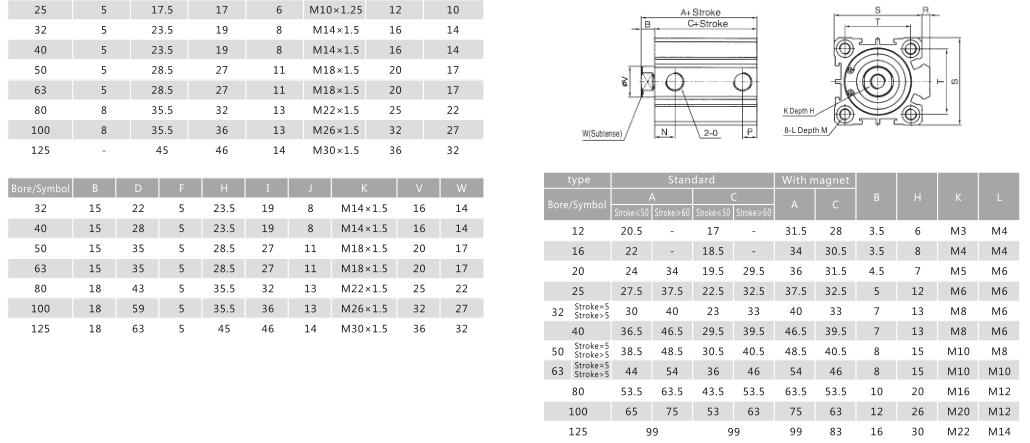

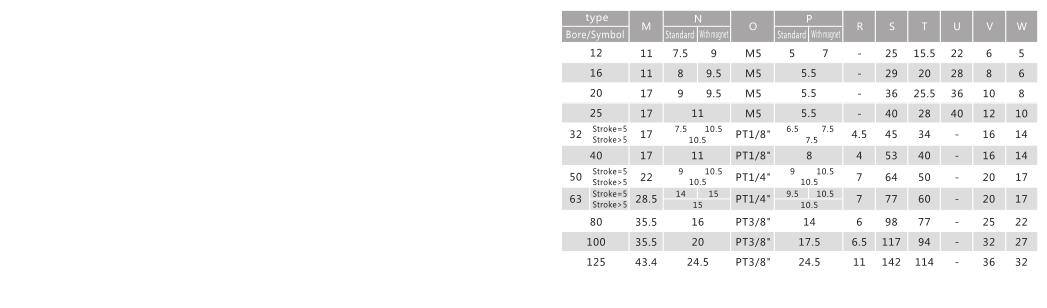

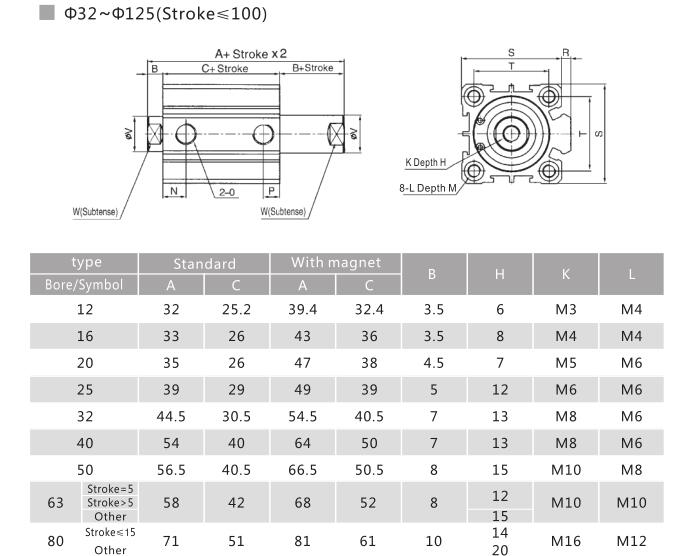

Drawings
