AC Filter Regulator+Lubricator

NTA AW Filter regulator is an Integrated filter and regulator units, it is an ecnomic replacement of SMC modular FRL AW filter regulator made in China,  it saves space and require less piping. Easy to hold when unlocked. it is a reliable compressed air preparation for applications in uncritical environments, freely combinable within the NTA A series FRL. AW2000 to AW5000 have a metal bow guard, port thread M5, 1/8'', 1/4'', 3/8'', 1/2'', 3/4'', 1''. Working pressure from 0.05MPa to 1.0MPa, max input air pressure at 1.5MPa. Grade of filtration 40 µm and 5 µm optional. Manual drain and auto drain are available, special guide structure makes the flowing gas spin properly to seperate the water from compressed air and filter solid particals efficiently.  The complete series of filter regulator is offered with pressure gauge.

NTA AL lubricator is an ecnomic replacement of SMC A series FRL AL lubricator made in China,  it saves space and require less piping. It is a reliable compressed air preparation for applications in uncritical environments, freely combinable within the NTA A series FRL. AL 2000 to AL5000 have a metal bow guard, port thread M5, 1/8'', 1/4'', 3/8'', 1/2'', 3/4'', 1''. Working pressure from 0.05MPa to 1.0MPa, max input air pressure at 1.5MPa.Fixed bracket mounting is optional.

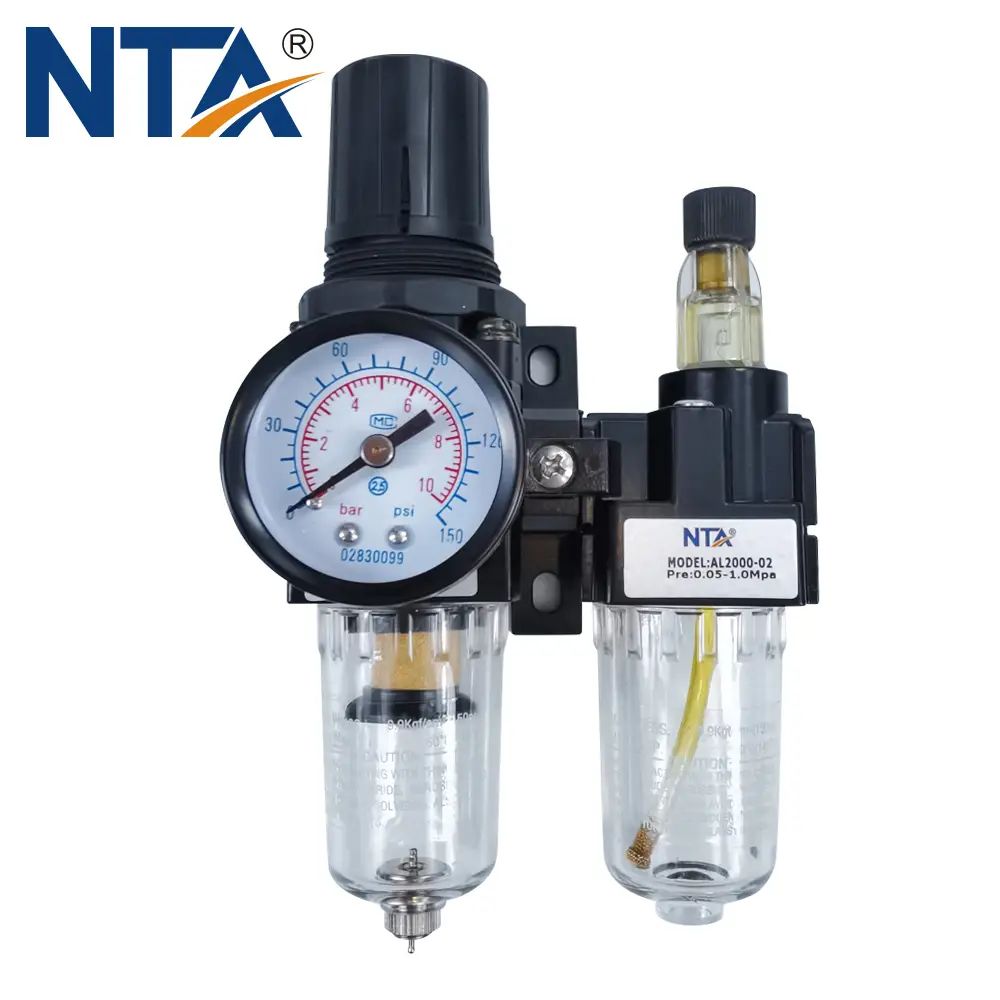

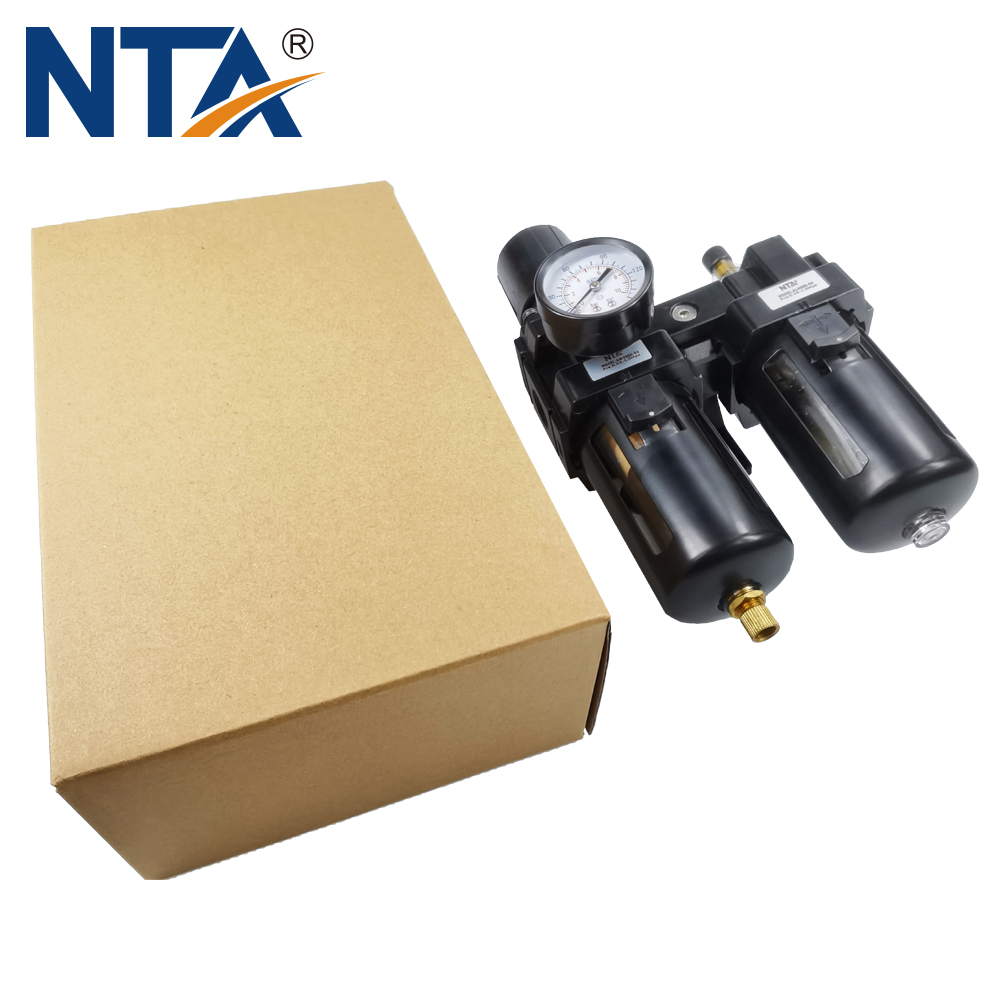

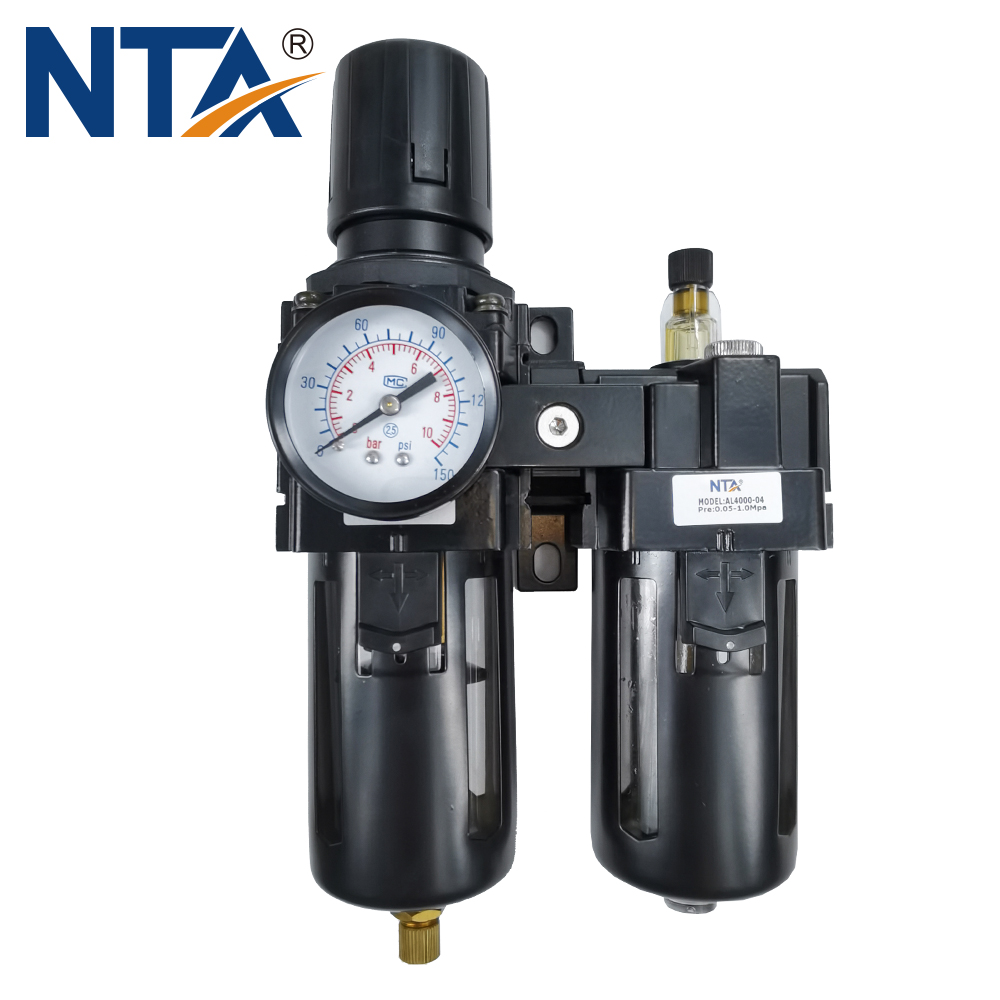

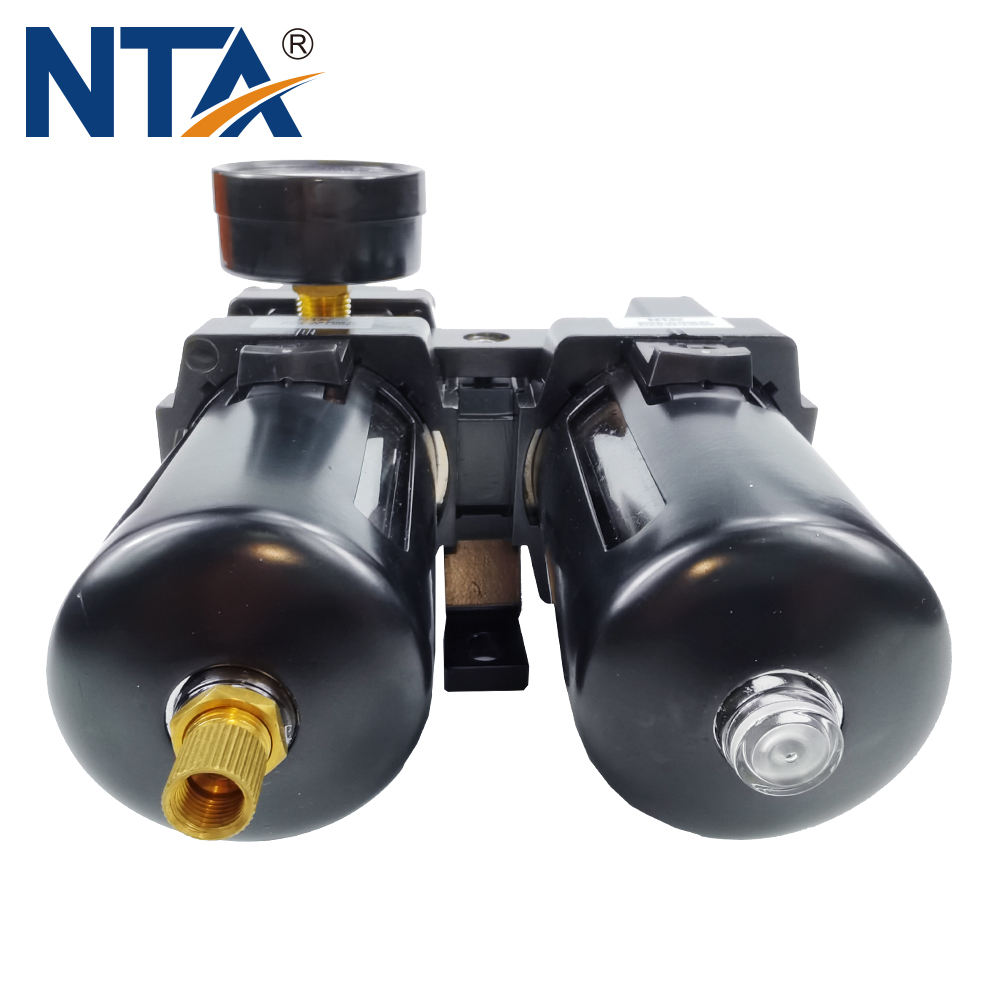

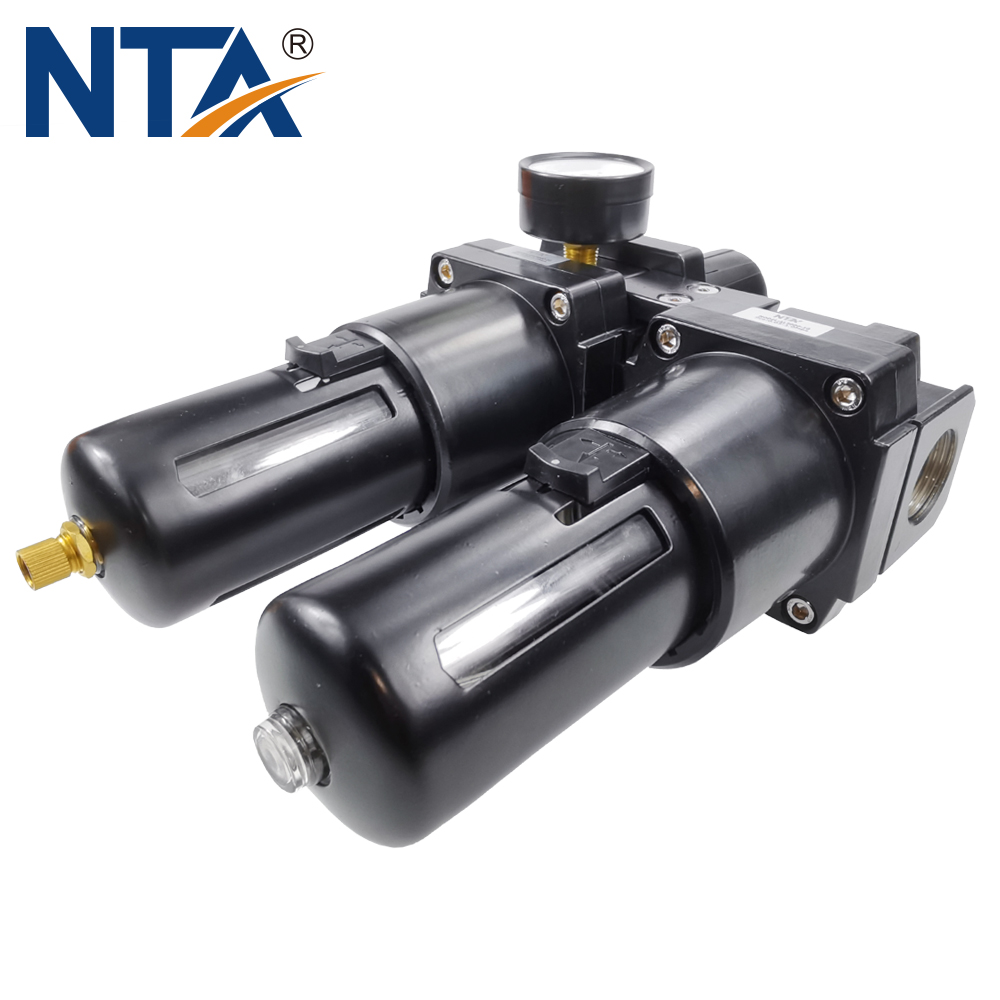

NTA AC Filter regulator lubricator is an Integrated filter, regulator and lubricator units, it is an ecnomic replacement of SMC modular FRL AC filter regulator lubricator made in China,  it saves space and require less piping. Easy to hold when unlocked.  it is a reliable compressed air preparation for applications in uncritical environments, freely combinable within the NTA A series FRL.  AC 2000 to AC5000 have a metal bow guard, port thread M5, 1/8'', 1/4'', 3/8'', 1/2'', 3/4'', 1''. Working pressure from 0.05MPa to 1.0MPa, max input air pressure at 1.5MPa. Grade of filtration 40 µm and 5 µm optional. Manual drain and auto drain are available, special guide structure makes the flowing gas spin properly to seperate the water from compressed air and filter solid particals efficiently.  The complete series of filter regulator lubricator is offered with pressure gauge.

NTA AR regulator is an ecnomic replacement of SMC series AR regulator made in China,  it saves space and require less piping. Easy to hold when unlocked. It is a reliable compressed air preparation for applications in uncritical environments, freely combinable within the NTA A series FRL. Port thread M5, 1/8'', 1/4'', 3/8'', 1/2'', 3/4'', 1''. Working pressure from 0.05MPa to 1.0MPa, max input air pressure at 1.5MPa. The complete series of regulator is offered with pressure gauge. Panel mounting and fixed bracket mounting is optional.
