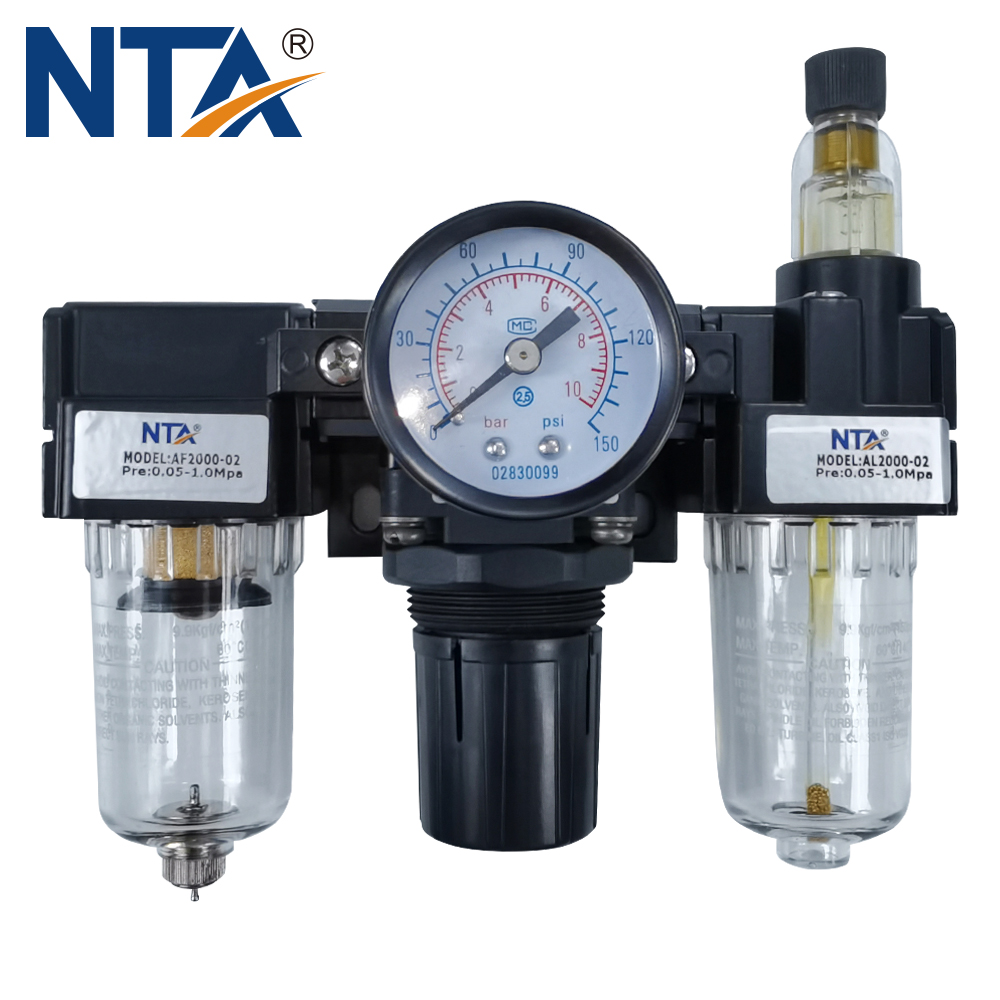

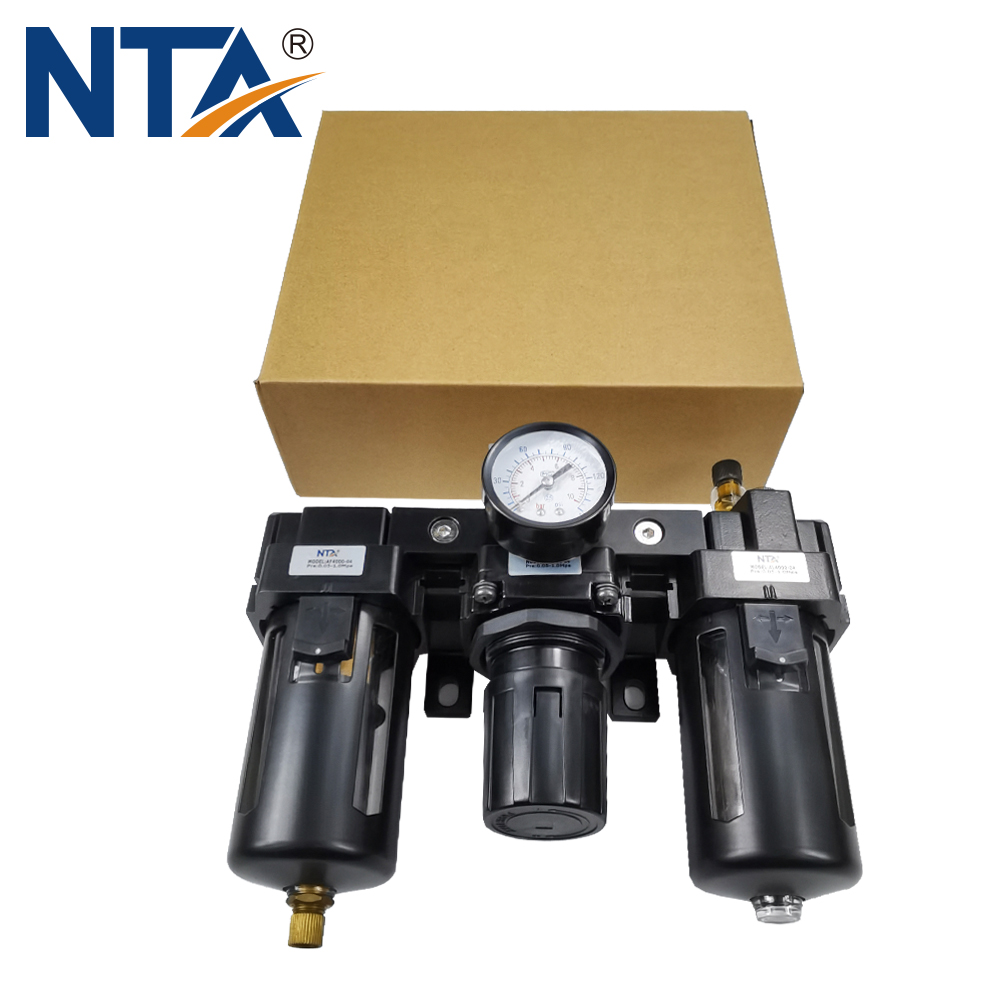

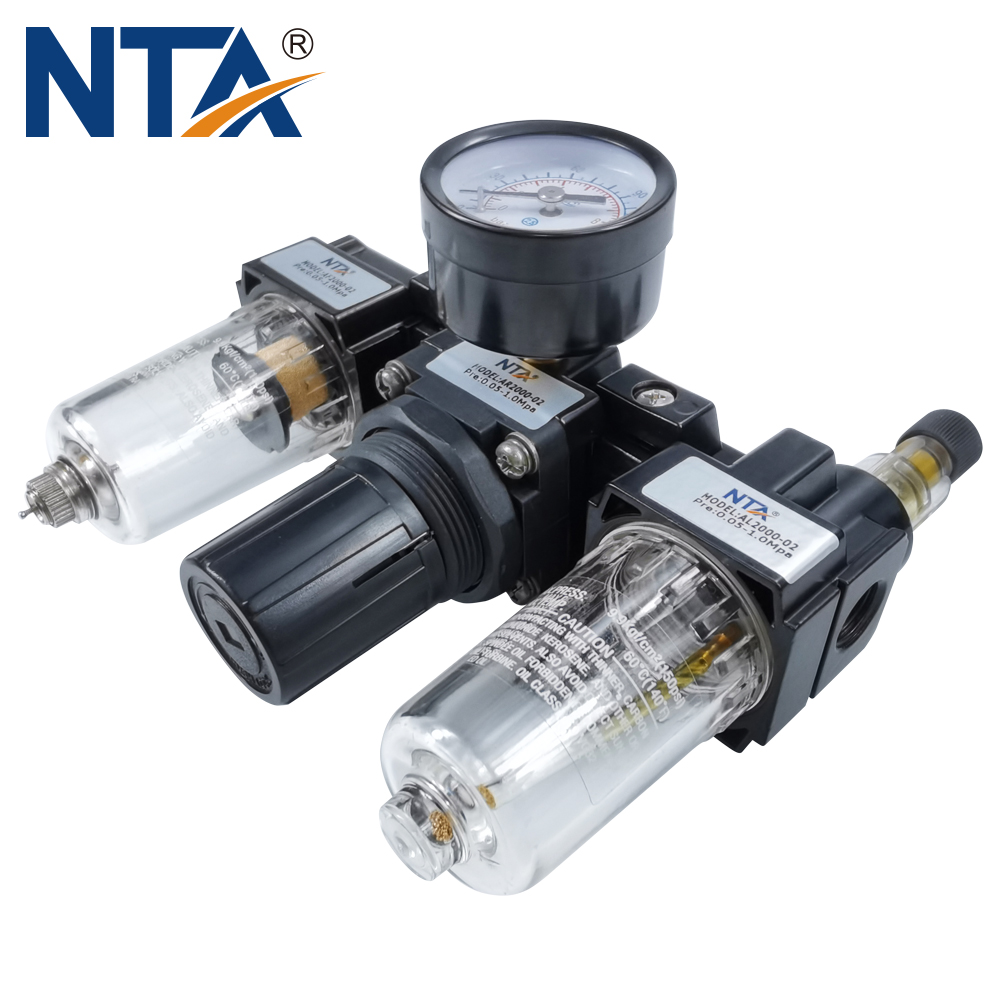

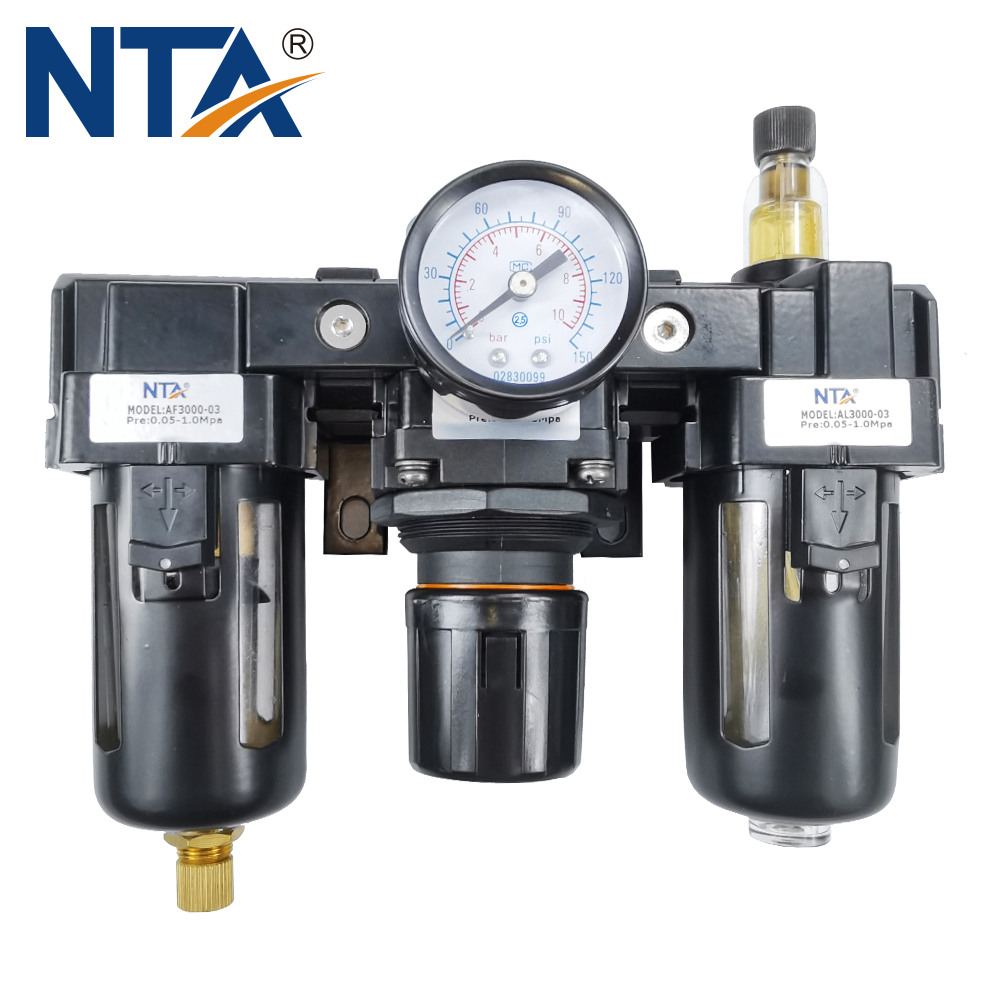

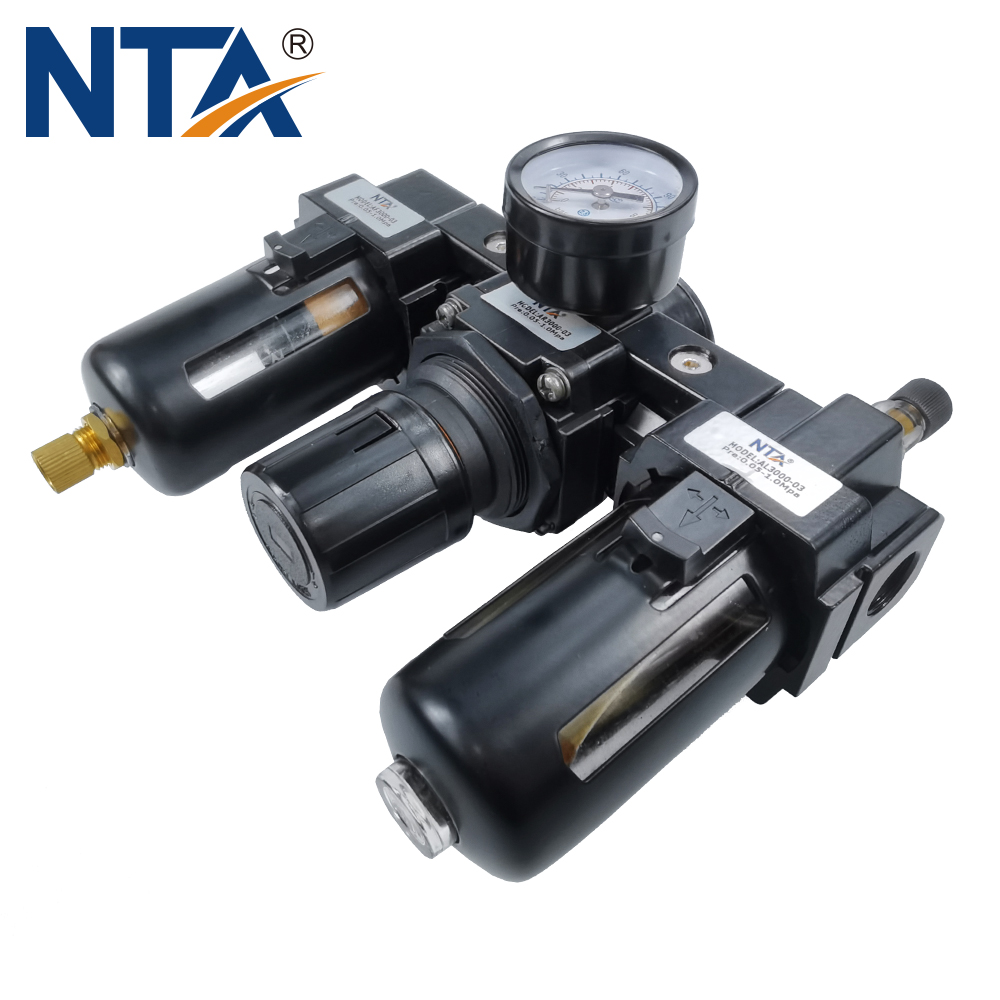

AC Filter+Regulator+Lubricator

NTA AC Filter regulator lubricator is an Integrated filter, regulator and lubricator units, it is an ecnomic replacement of SMC modular FRL AC filter regulator lubricator made in China, it saves space and require less piping. Easy to hold when unlocked. it is a reliable compressed air preparation for applications in uncritical environments, freely combinable within the NTA A series FRL. AC 2000 to AC5000 have a metal bow guard, port thread M5, 1/8'', 1/4'', 3/8'', 1/2'', 3/4'', 1''. Working pressure from 0.05MPa to 1.0MPa, max input air pressure at 1.5MPa. Grade of filtration 40 µm and 5 µm optional. Manual drain and auto drain are available, special guide structure makes the flowing gas spin properly to seperate the water from compressed air and filter solid particals efficiently. The complete series of filter regulator lubricator is offered with pressure gauge.
