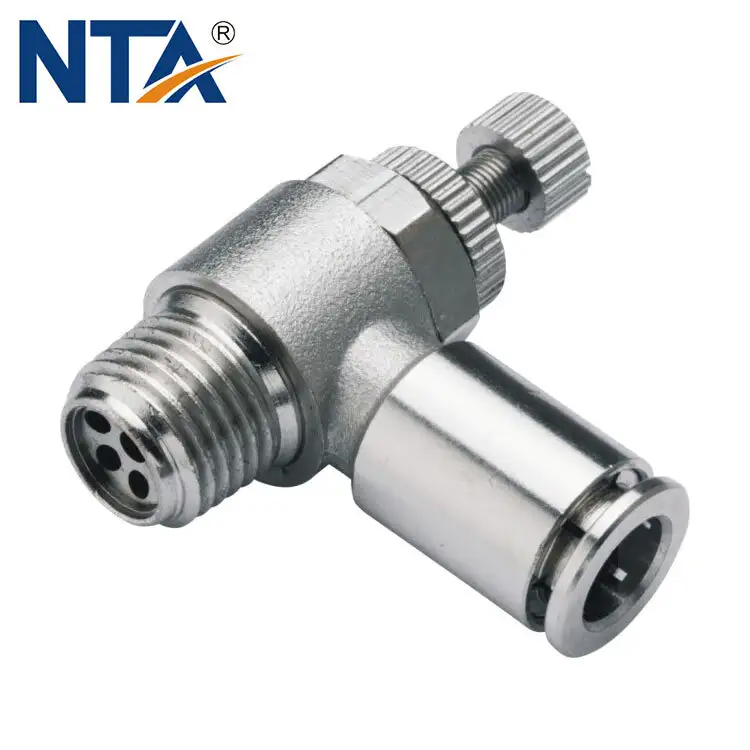

MSL Brass/Metal Elbow Type/Universal Type/Push-lock Type Throttle Control Valve/Air Flow Control Valve 1
MSL Brass/Metal Elbow Type/Universal Type/Push-lock Type Throttle Control Valve/Air Flow Control Valve 1

MSL Brass/Metal Elbow Type/Universal Type/Push-lock Type Throttle Control Valve/Air Flow Control Valve

NTA MSL R thread/BSPT male thread, brass/metal elbow type/universal type/push-lock type throttle control valve/air flow control valve/pneumatic flow control valve/air flow controller is used to control action speed of pneumatic cylinder/pneumatic actuators by control air flowrate in the pneumatic system, it precisely permit the optimal rate of airflow for the smooth cylinder movement of driving devices, the compact design provides a comparable range of speed as the conventional speed control do. Electroless nickel plated type is standard. Uni-directional airflow is available for either exhaust or inlet flow control methods. 360°swivel piping is possible. It is suitable for use with nylon and urethane tube, large retaining force, it can be used for a wide range of pressures from a low vaccum up to a high pressure of 1.6MPa/232PSI, long lifetime, air through and break life cycle number reaching 17.4 million cycles, it is 2.8 to 348 times of lifetime from other Chinese fitting suppliers0.05 to 6.3 millions cycles.  The air fitting structurepush in fitting/one touch fitting  is quick installation, simple and flexible, space-saving, easy to connect tube by one touch.

Workingpressure
0~1.6MPa
TubeOD
4, 6, 8, 10, 12mm
Fluid
Air
Lifetime
Longlifetime16MillionCycles(closewithFESTO)

    oops...!

    no product data.

    Go to homepage


    MSL Brass/Metal Elbow Type/Universal Type/Push-lock Type Throttle Control Valve/Air Flow Control Valve 2




    Recommended
    MSQ Slotted(non return) Brass/Metal Elbow Type/Universal Type/Push-lock Type Throttle Control Valve
    NTA MSQ slottednon return brass/metal elbow type/universal type/push-lock type throttle control valve/air flow control valve/pneumatic flow control valve/air flow controller/flow control regulator is used to control action speed of pneumatic cylinder/pneumatic actuators by control air flowrate in the pneumatic system, it precisely permit the optimal rate of airflow for the smooth cylinder movement of driving devices, the compact design provides a comparable range of speed as the conventional speed control do. Electroless nickel plated type is standard. Uni-directional airflow is available for either exhaust or inlet flow control methods. 360°swivel piping is possible. It is suitable for use with nylon and urethane tube, large retaining force, it can be used for a wide range of pressures from a low vaccum up to a high pressure of 1.6MPa/232PSI, long lifetime, air through and break life cycle number reaching 17.4 million cycles, it is 2.8 to 348 times of lifetime from other Chinese fi...
    MSL-G Brass/Metal Elbow Type/Universal Type/Push-lock Type Throttle Control Valve/Air Flow Control Valve
    NTA MSL-G G thread/BSPP male thread, brass/metal elbow type/universal type/push-lock type throttle control valve/air flow control valve/pneumatic flow control valve/air flow controller is used to control action speed of pneumatic cylinder/pneumatic actuators by control air flowrate in the pneumatic system, it precisely permit the optimal rate of airflow for the smooth cylinder movement of driving devices, the compact design provides a comparable range of speed as the conventional speed control do. Electroless nickel plated type is standard. Uni-directional airflow is available for either exhaust or inlet flow control methods. 360°swivel piping is possible. It is suitable for use with nylon and urethane tube, large retaining force, it can be used for a wide range of pressures from a low vaccum up to a high pressure of 1.6MPa/232PSI, long lifetime, air through and break life cycle number reaching 17.4 million cycles, it is 2.8 to 348 times of lifetime from other Chinese fitting suppli...
    SA In-line Type/Universal Type/Push-lock Type Throttle Control Valve/Air Flow Control Valve/Pneumatic Flow Control Valve
    NTA SA in-line type/universal type/push-lock type throttle control valve/air flow control valve/pneumatic flow control valve/air flow controller is used to control action speed of pneumatic cylinder/pneumatic actuators by control air flowrate in the pneumatic system, easy to mount, it reduces labor time, light weight, good reproducibility of flow rate, easy to insert and remove tubes, the compact and light body permits use in confined space, the compact design provides a comparable range of speed as the conventional speed control do. Uni-directional airflow is available for either exhaust or inlet flow control methods. 360°swivel piping is possible. It is suitable for use with nylon and urethane tube, large retaining force, it can be used for a wide range of pressures from a low vaccum up to a high pressure of 1.2MPa/174PSI, long lifetime, air through and break life cycle number reaching 17.4 million cycles, it is 2.8 to 348 times of lifetime from other Chinese fitting suppliers0.05...
    SL-G Elbow Type/Universal Type/Push-lock Type Throttle Control Valve/Air Flow Control Valve/Pneumatic Flow Control Valve
    NTA SL-G G thread/BSPP male thread, elbow type/universal type/push-lock type throttle control valve/air flow control valve/pneumatic flow control valve/air flow controller is used to control action speed of pneumatic cylinder/pneumatic actuators by control air flowrate in the pneumatic system, it precisely permit the optimal rate of airflow for the smooth cylinder movement of driving devices, the compact and light body permits use in confined space, the compact design provides a comparable range of speed as the conventional speed control do. Electroless nickel plated type is standard. Uni-directional airflow is available for either exhaust or inlet flow control methods. 360°swivel piping is possible. It is suitable for use with nylon and urethane tube, large retaining force, it can be used for a wide range of pressures from a low vaccum up to a high pressure of 1.2MPa/174PSI, long lifetime, air through and break life cycle number reaching 17.4 million cycles, it is 2.8 to 348 times ...
