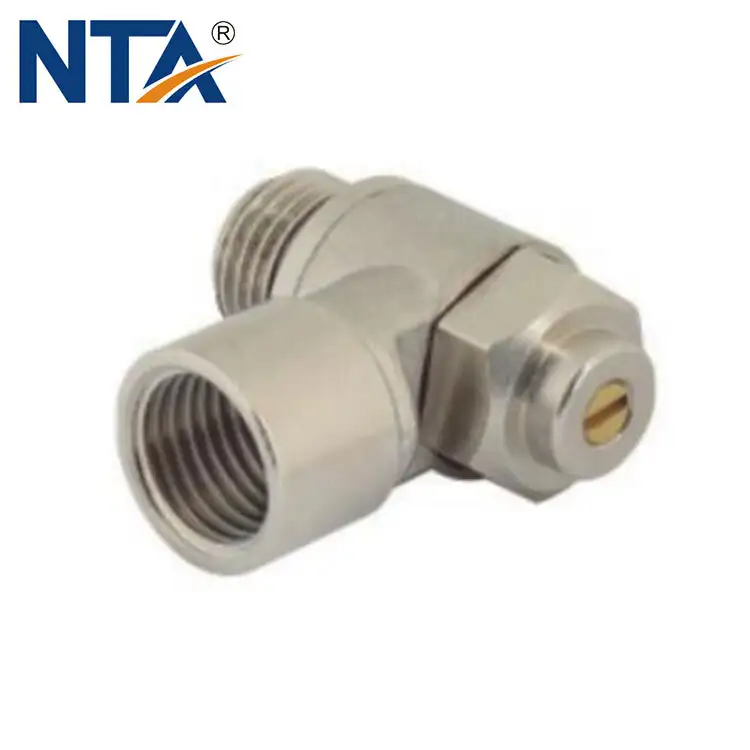

MSQF-G Female Slotted(non return) Brass/Metal Elbow Type/Universal Type/Push-lock Type Throttle Control

NTA MSQF-G female slottednon return brass/metal elbow type/universal type/push-lock type throttle control valve/air flow control valve/pneumatic flow control valve/air flow controller/flow control regulator is used to control action speed of pneumatic cylinder/pneumatic actuators by control air flowrate in the pneumatic system, it precisely permit the optimal rate of airflow for the smooth cylinder movement of driving devices, the compact design provides a comparable range of speed as the conventional speed control do. Electroless nickel plated type is standard. Uni-directional airflow is available for either exhaust or inlet flow control methods. 360°swivel piping is possible. It is suitable for use with nylon and urethane tube, large retaining force, it can be used for a wide range of pressures from a low vaccum up to a high pressure of 1.6MPa/232PSI, long lifetime, air through and break life cycle number reaching 17.4 million cycles, it is 2.8 to 348 times of lifetime from other Chinese fitting suppliers0.05 to 6.3 millions cycles. The air fitting structurepush in fitting/one touch fitting is quick installation, simple and flexible, space-saving, easy to connect tube by one touch.

Workingpressure

0~1.6MPa

Femalethread

M5, 1/8, 1/4, 3/8, 1/2

Fluid

Air

Lifetime

Longlifetime16MillionCycles(closewithFESTO)

Inquiry

Write a Review

NTA flow control regulators offer precise adjustment, accuracy and compactness providing the solution for all applications. Those flow control regulators are available with polymer, nickel-plated brass or aluminium bodies, external or recessed adjustment screws. By allowing a higher maximum flow than standards regulators and precise adjustement, this range of products helps you improve your productivity and performance with accuracy.

Features/Benefits:

- Improved Productivity

• Higher maximum flow than standard regulators

• Full flow with minimum pressure drop (model 7060)

• Optimal control of the cylinder rod speed

• 100% leak-tested in production

• Date coding to guarantee quality and traceability

• Reduce compressed air and energy consumption

- Accuracy & Performance

• Precise adjustment for accurate flow regulation from initial to maximum opening

• Constant cylinder rod displacement speed

• Long-term stability of flow

• Reduced weight (polymer version)

• Mechanical strength and corrosion resistance with nickel-plated brass version

- Ergonomics & Large Range

• External adjustment screw: easy to adjust without tooling and lockable

• Recessed adjustment screw: more compact and protects the adjustment mechanism

• Uni-directional: exhaust or inlet

• Bi-directional: adjustment of air flow in both directions

• 360° positioning

• NPT version on request

Markets:

• Factory Automation

• Vehicle Assembly Facilities

• Food and Beverage

• Semiconductor

• Wearing Apparel

• Packaging Machinery

• Rail

Applications:

• Pneumatic Cylinder Control

• Low Pressure Compressed Air Flow Regulation

Technologies:

• Flow control

• Bi-directional regulator

• Uni-directional regulator

• Pneumatic controls

• Swivel Outlet

Technical Characteristics:

• Fluids: Compressed Air. Other fluids: contact us

• Materials: Nickel-plated brass, technical polymer, stainless steel, NBR

• Pressure: Vacuum to 10 bar

• Temperature: 0°C to +70°C

Regulations:

• DI: 2002/95/EC (RoHS)

• RG: 1907/2006 (REACH)

• DI: 97/23/EC (PED)

Product Types:

• Flow Regulator with Recessed Adjustment Screw Exhaust / Supply, Male BSPP and Metric Thread

• Bi-Directional Flow Regulator with Recessed Adjustment Screw, Male BSPP and Metric Thread

• Compact Flow Regulator Exhaust / Supply, Male BSPP / BSPT Thread

• Bi-Directional Compact Flow Regulator, Male BSPP / BSPT Thread

• Miniature Flow Regulator Exhaust, Male BSPP and Metric Thread / BSPT

• Miniature Flow Regulator Supply, Male BSPP and Metric Thread / BSPT

• Bi-Directional Miniature Flow Regulator, Male BSPP and Metric Thread

• Compact Flow Regulator Swivel Outlet Exhaust / Supply, Male BSPP / BSPT Thread

• Compact Flow Regulator Swivel Outlet Exhaust, Male BSPT Thread

• Miniature Swivel Outlet Flow Regulator Exhaust / Supply, Male BSPP and Metric Thread / BSPT

• In-Line One-Way Flow Regulator

• Bi-Directional In-Line Flow Regulator

• Panel-Mountable In-Line One-Way Flow Regulator

• In-Line One-Way Flow Regulator, Female BSPP Thread

• Joining Clips

• Straight Flow Regulator Exhaust, Male BSPP Thread

• Compact Plug-In Flow Regulator, Exhaust / Supply

• Miniature Plug-In Flow Regulator, Exhaust / Supply

• Flow Regulator, Exhaust, Male BSPP and Metric Thread

• Flow Regulator, Exhaust, Male/Female BSPP and Metric Thread

• Flow Regulator with Brass Compression Fitting, Exhaust, Male BSPP Thread

• Compact Flow Regulator, Exhaust / Supply, Male BSPP Thread

• Compact Flow Regulator, Male BSPP Thread

• Miniature Flow Regulator Exhaust, Male BSPP and Metric Thread

• Compact Flow Regulator Exhaust / Supply, Male/Female BSPP Thread

• Miniature Flow Regulator Exhaust, Male/Female BSPP and Metric Thread

• Flow Regulator Exhaust, with Brass Compression Fitting, Male BSPP Thread

• Panel-Mountable In-Line Flow Regulator, Female BSPP and Metric Thread

How to order
