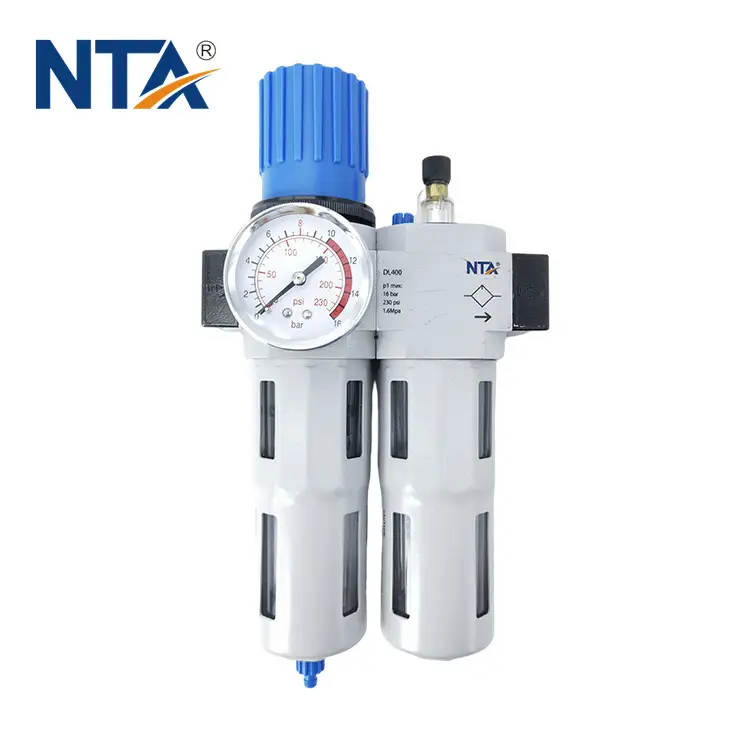

DC Filter Regulator+Lubricator

DC Filter regulator+lubricator is an Integrated filter regulator and lubricator units, it is an ecnomic replacement of FESTO D series FRL FRC/FRCS filter regulator and lubricator made in China,  it saves space and require less piping. Easy to hold when unlocked. it is a reliable compressed air preparation for applications in uncritical environments, freely combinable within the NTA D series FRL. DC 201 to DC601 have a metal bow guard, port thread M5, 1/8'', 1/4'', 3/8'', 1/2'', 3/4'', 1''. Working pressure from 0.15MPa to 1.2MPa, max input air pressure at 1.6MPa. Max flowrate from 500L/min to 11500L/min. Grade of filtration 40 µm and 5 µm optional. Differential pressure drain and auto drain are available, special guide structure makes the flowing gas spin properly to seperate the water from compressed air and filter solid particals efficiently.  The complete series of filter regulator is offered with pressure gauge.

Workingpressure
0.15~1.2MPa
Maxflowrate
500~11500L/min
Fluid
Compressedair
Filterprecision
5μm or 40μm
Portsizte
M5/·G1/8·G1/4·G3/8·G1/2·G3/4·G1

    oops...!

    no product data.

    Go to homepage

    Specification

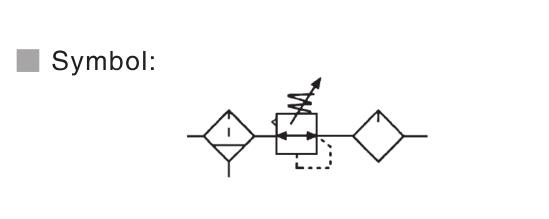

    DC Filter Regulator+Lubricator 6

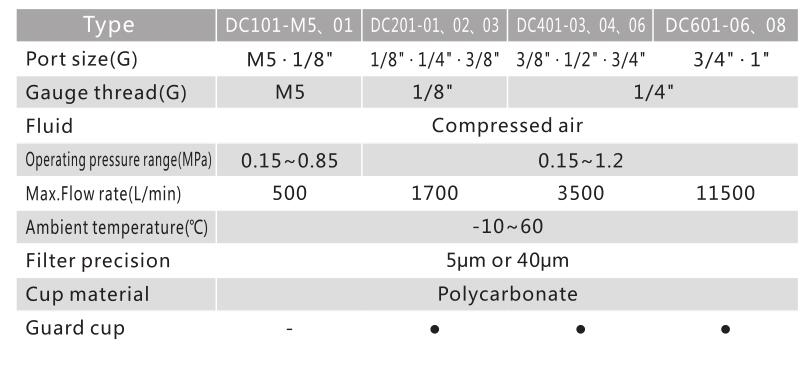

    DC Filter Regulator+Lubricator 7

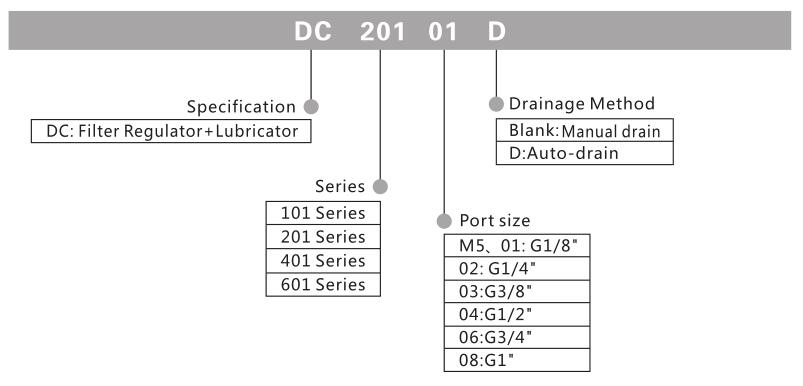

    How to order


    Drawings

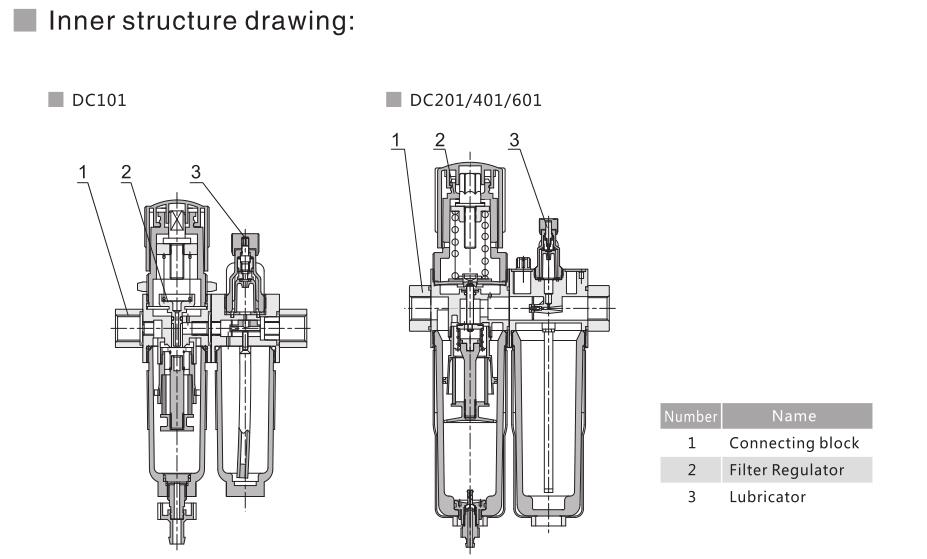

    DC Filter Regulator+Lubricator 9

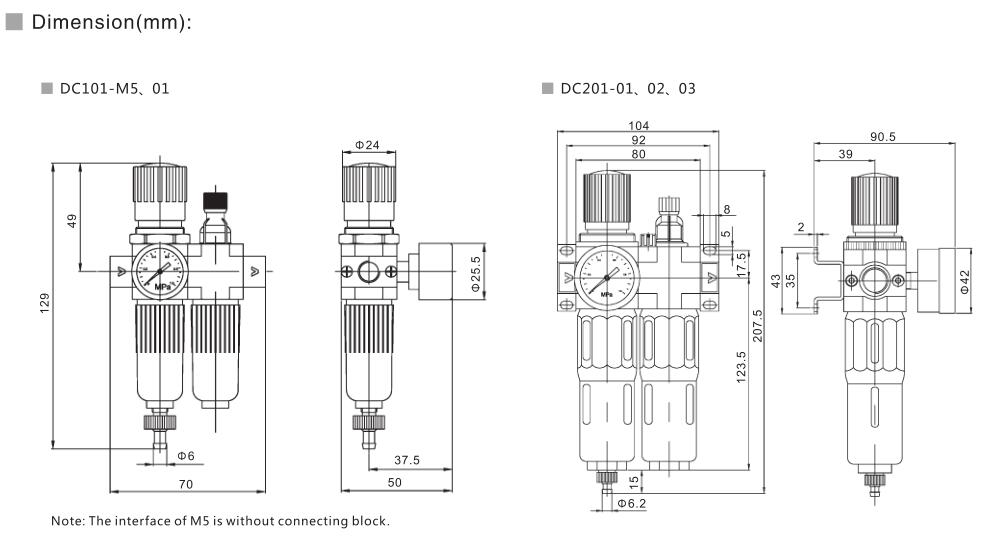

    DC Filter Regulator+Lubricator 10

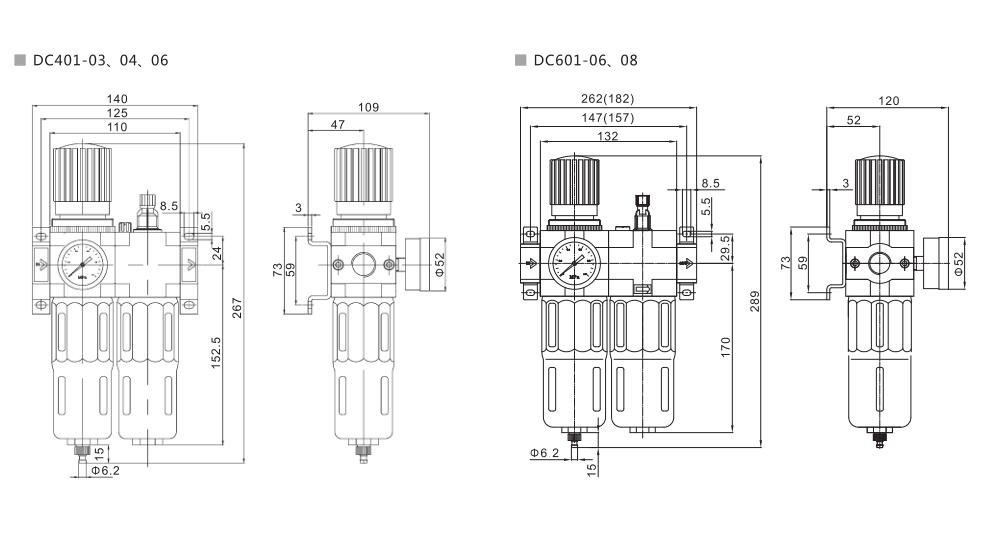

    DC Filter Regulator+Lubricator 11
