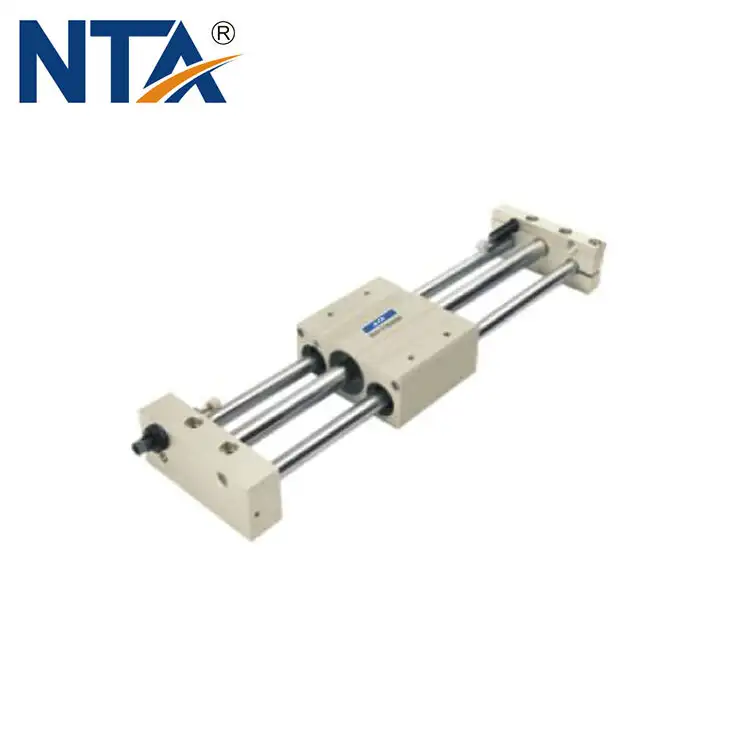

Magnetic Pneumatic Cylinder NTA CY1S

NTA CY1S magnetically coupled guiding type rodless cylinder has no piston rod, upgraded bearing performance and reduced sliding resistance. No mechanical connection between piston and slide block, it provides an excellent sealing performance. The action of the piston is transmitted to external slide block through magnetic coupling force without piston rod. The designing is space saving, and max stroke lenghth could be longer than ordinary cylinder. Both ends of the cylinder is equiped with adjustable buffer and fixed buffer device.The piston chamber seperated from slide block to prevent dirty getting into the pneumatic system which prolong cylinder life. CY1S rodless cylinder pneumatic only uses material from our quanlity approved suppliers. Welcome to contact NTA team for rodless cylinder price, sales@titan-automation.com, telephone&whatsapp number 008613616569784

Bore ID range

15mm~40mm

Motion

Double acting

Fluid

Compressedair

Working pressure

0.18~0.7MPa

Cushion

Adjustable oil shock absorber

Inquiry

Write a Review

Specification

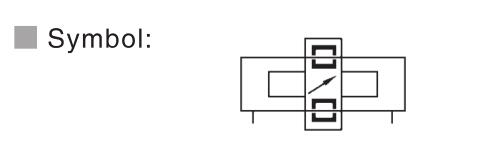

Magnetic Pneumatic Cylinder NTA CY1S 2

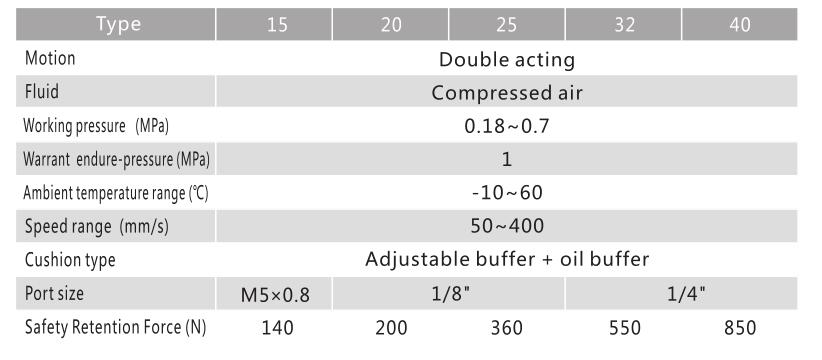

Magnetic Pneumatic Cylinder NTA CY1S 3

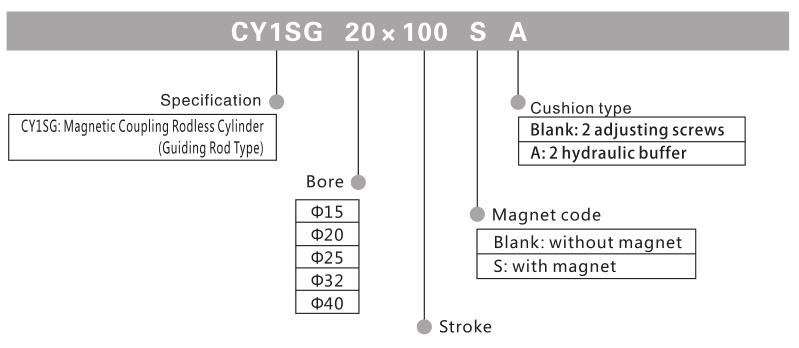

How to order


Drawings

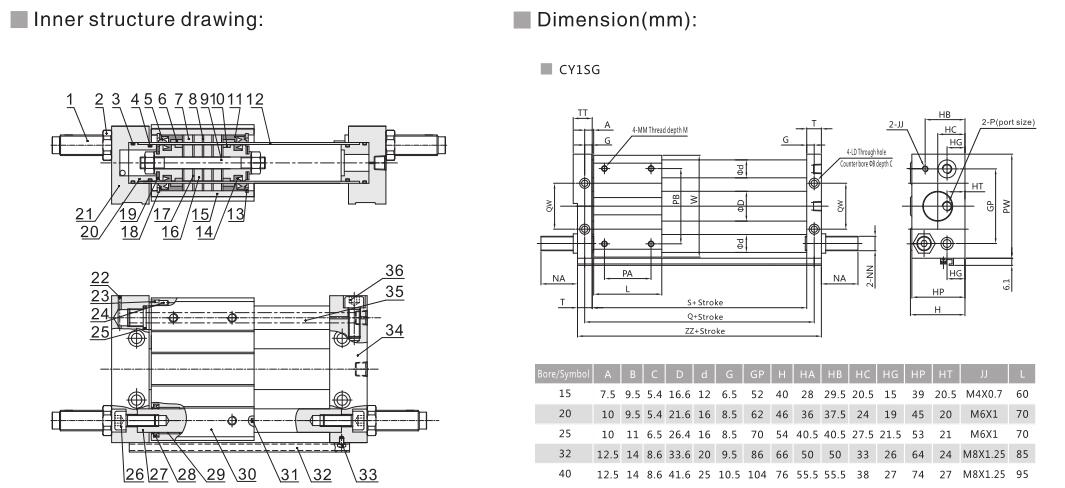

Magnetic Pneumatic Cylinder NTA CY1S 5

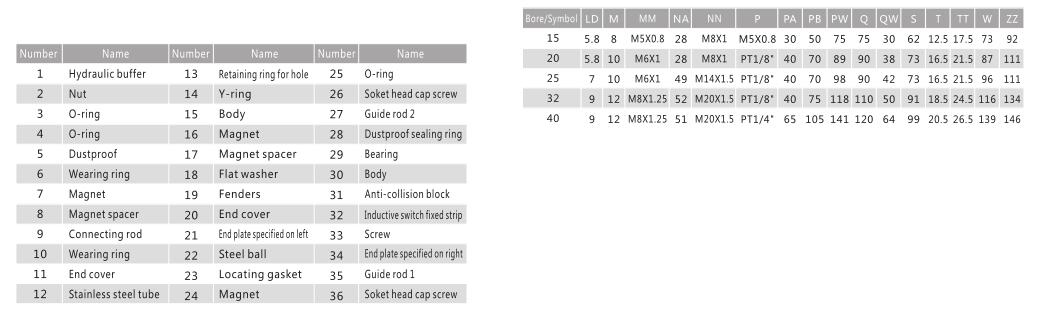

Magnetic Pneumatic Cylinder NTA CY1S 6
