U Series FRL
HOME > PRODUCTS > Air Preparation > U Series FRL
VR

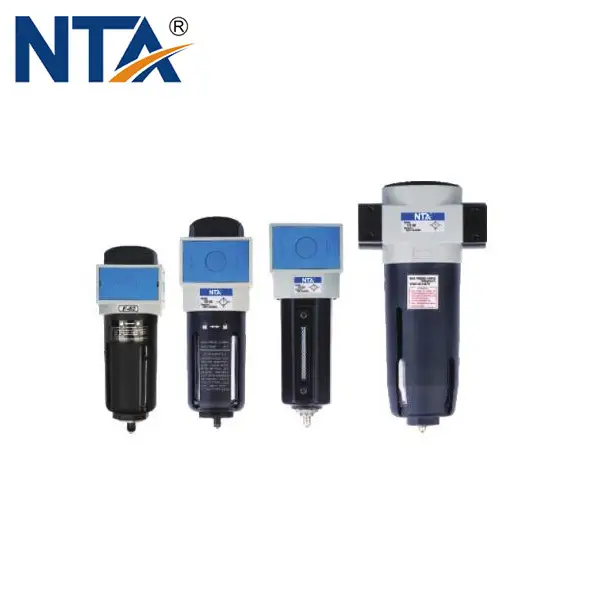

U Series Filter

U Series Filter

NTA UF Filter is a filter unit made in China, it saves space and require less piping.  it is a reliable compressed air preparation for applications in uncritical environments, freely combinable within the NTA U series FRL. Polycarbonate or metal bow guard are optional for UF-02 to UF-08, port thread 1/4'', 3/8'', 1/2'', 3/4'', 1''. Working pressure from 0.05MPa to 0.85MPa. Max flowrate from 1850L/min to 8100L/min. Grade of filtration 40 µm and 5 µm optional. Differential pressure drain and auto drain are available, special guide structure makes the flowing gas spin properly to seperate the water from compressed air and filter solid particals efficiently.
SEND INQUIRY NOW
Workingpressure
0.15~0.85MPa
Maxflowrate
1850~8100L/min
Fluid
Compressedair
Filterprecision
5μm or 40μm
Portsizte
G1/4·G3/8·G1/2·G3/4·G1
SEND INQUIRY NOW
  • Product Details

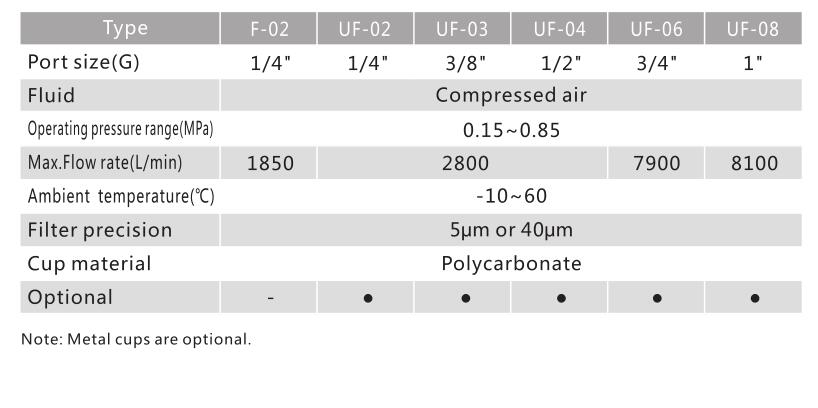

Specification

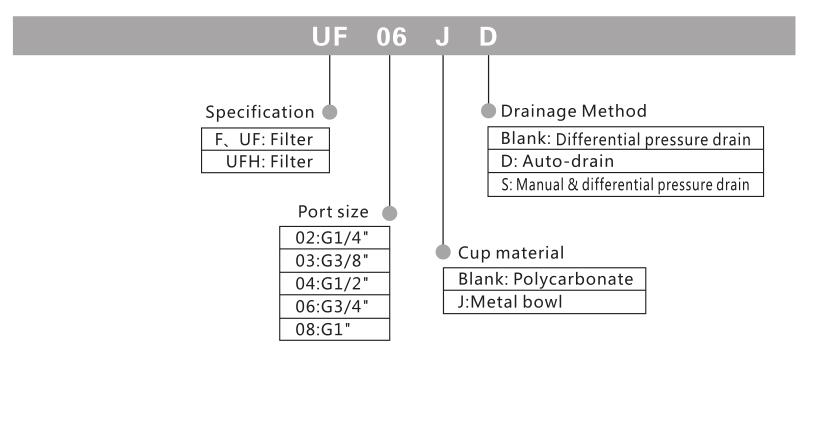

How to order

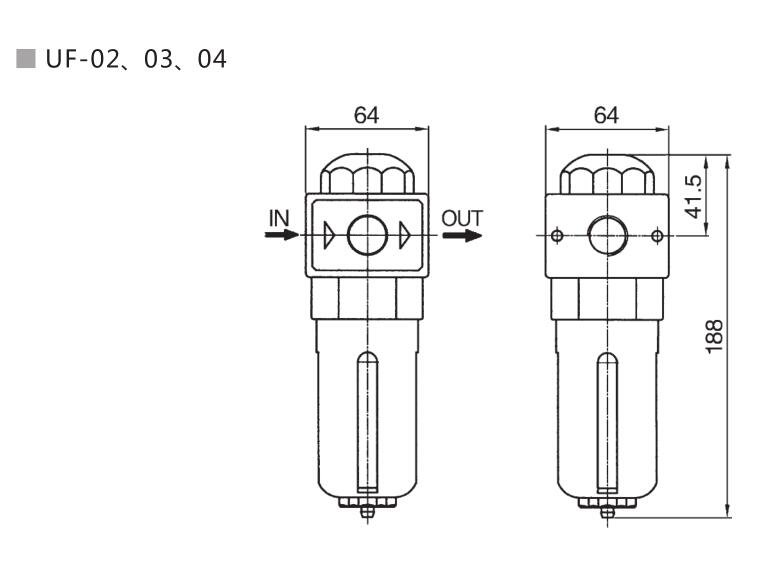

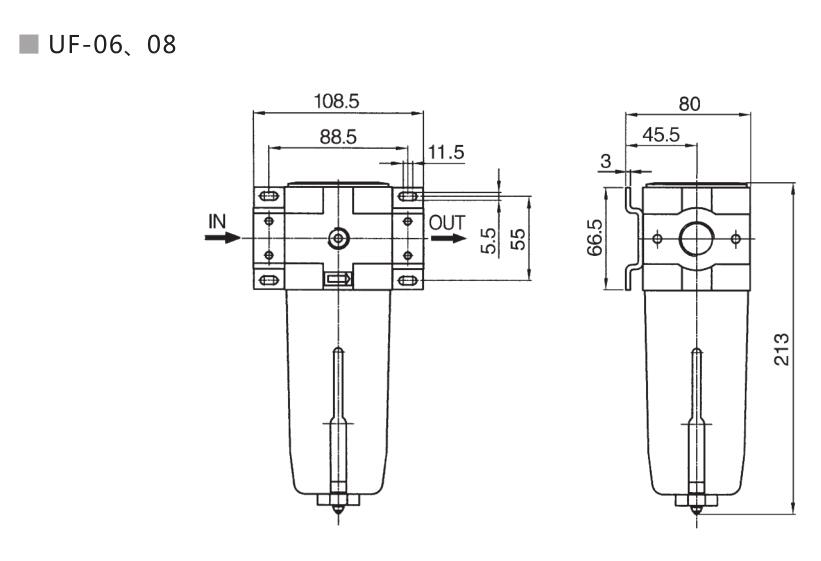

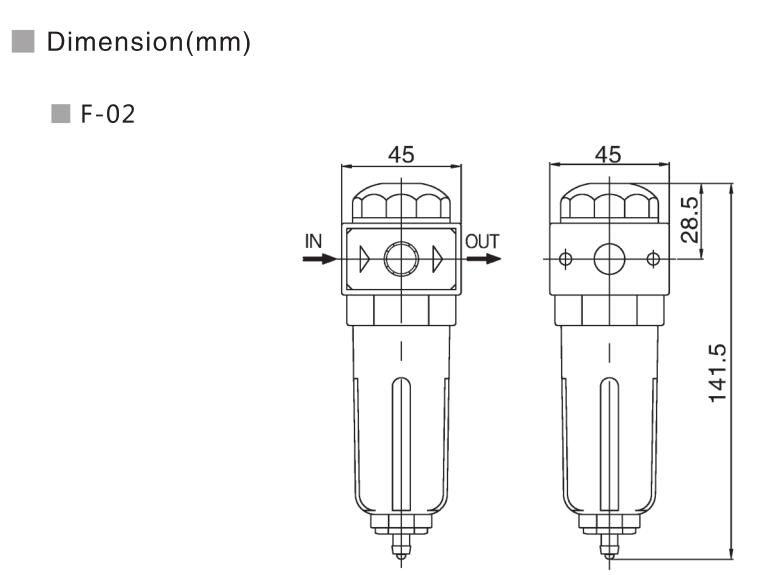

Drawings
