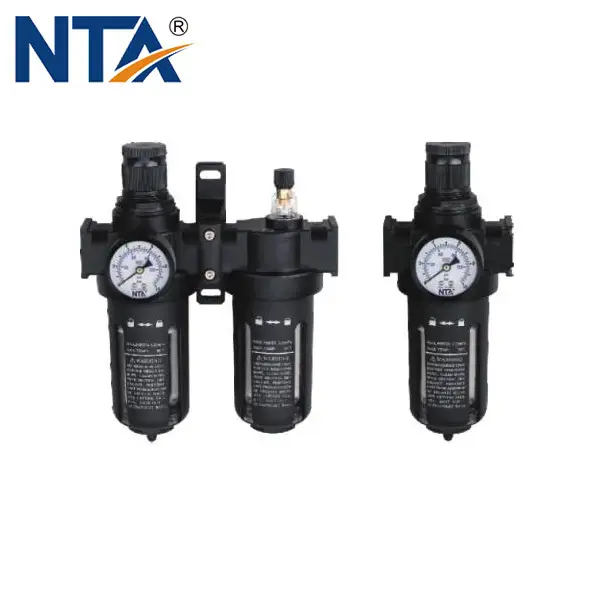

SFC Series Filter Regulator+Lubricator

DL compressed air lubricator is an ecnomic replacement of FESTO D series FRL LOE lubricator made in China,  it saves space and require less piping. It is a reliable compressed air preparation for applications in uncritical environments, freely combinable within the NTA D series FRL. DL 200 to DL600 have a metal bow guard, port thread M5, 1/8'', 1/4'', 3/8'', 1/2'', 3/4'', 1''. Working pressure from 0.15MPa to 1.2MPa, max input air pressure at 1.6MPa. Max flowrate from 500L/min to 11500L/min. Fixed bracket mounting is optional.

DFR Filter regulator is an Integrated filter and regulator units, it is an ecnomic replacement of FESTO D series FRL LFR/LFRS filter regulator made in China,  it saves space and require less piping. Easy to hold when unlocked. it is a reliable compressed air preparation for applications in uncritical environments, freely combinable within the NTA D series FRL. DFR 200 to DFR600 have a metal bow guard, port thread M5, 1/8'', 1/4'', 3/8'', 1/2'', 3/4'', 1''. Working pressure from 0.15MPa to 1.2MPa, max input air pressure at 1.6MPa. Max flowrate from 500L/min to 11500L/min. Grade of filtration 40 µm and 5 µm optional. Differential pressure drain and auto drain are available, special guide structure makes the flowing gas spin properly to seperate the water from compressed air and filter solid particals efficiently.  The complete series of filter regulator is offered with pressure gauge.

DC Series Filter regulator lubricator is an 3 in 1 air preparation unit for filtering, regulating and lubricating compressed air to ensure optimal performance in pneumatic systems. Titan Automation offers mutiple choices for filter regulator lubricators that can certainly fulfill all your needs. If you have any questions regarding our products, welcome to Contact Us anytime!
