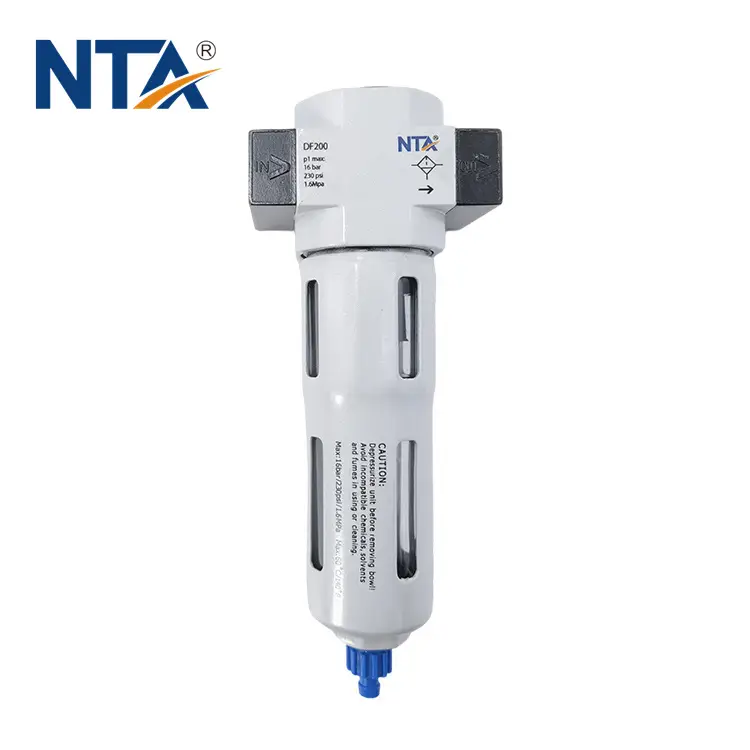

D Series Air Preparation Manufactuer Air Filter DC 200-01

DF Filter is a filter unit, it is an ecnomic replacement of FESTO D series FRL LF filter made in China, it saves space and require less piping. it is a reliable compressed air preparation for applications in uncritical environments, freely combinable within the NTA D series FRL. DF 200 to DF600 have a metal bow guard, port thread M5, 1/8'', 1/4'', 3/8'', 1/2'', 3/4'', 1''. Working pressure from 0.15MPa to 1.2MPa, max input air pressure at 1.6MPa. Max flowrate from 500L/min to 11500L/min. Grade of filtration 40 µm and 5 µm optional. Differential pressure drain and auto drain are available, special guide structure makes the flowing gas spin properly to seperate the water from compressed air and filter solid particals efficiently.

Working pressure

0.15~1.2MPa

Maxflowrate

500~11500L/min

Fluid

Compressedair

Filter precision

5μm or 40μm

Port size

M5·G1/8·G1/4·G3/8·G1/2·G3/4·G1

Inquiry

Write a Review

China Filter Regulator Lubricator Manufacturer - Get Quotes Today

Titan Automation is one of the most professional pneumatic filter regulator lubricator manufacturers and suppliers in China since 1972, specialized in providing customized service with competitive price. We warmly welcome you to wholesale bulk pneumatic filter regulator lubricator in stock here and get quotation from our factory.

Products Description

Pneumatic systems work on compressed air. A medium that transmits power to, for example, cylinders, grippers and valves, which can then perform their task. For example, gripping a product, creating a linear displacement or developing a holding force. The quality of the compressed air largely determines the performance of the pneumatic system. Among other things, in terms of efficiency, effectiveness, safety, reliability, accuracy and speed. It is therefore important for practically every industrial pneumatic system that the compressed air used is of the correct quality.

These filters are necessary to reduce contaminates and moisture in the compressed air at the machine. All pneumatic components benefit from this, but keep in mind that a filter that is too fine for the application can become blocked quickly. While a 40 μm filter works well to protect valves and cylinders, process instrumentation or high speed pneumatic tools will benefit from a finer particle filtration. Special, finer filters may also be needed for food, pharmaceutical and paint shop applications, and specify coalescing filters if oil vapors or aerosols need to be removed from the air stream.

Pneumatic Air Preparation Units DC Series Air Filter Regulator Lubricator 3

Air Preparation Filter is a filter unit, it is an ecnomic replacement of FESTO D series FRL LF filter made in China, it saves space and require less piping. it is a reliable compressed air preparation for applications in uncritical environments, freely combinable within the NTA D series FRL. DF 200 to DF600 have a metal bow guard, port thread M5, 1/8'', 1/4'', 3/8'', 1/2'', 3/4'', 1''. Working pressure from 0.15MPa to 1.2MPa, max input air pressure at 1.6MPa. Max flowrate from 500L/min to 11500L/min. Grade of filtration 40 µm and 5 µm optional. Differential pressure drain and auto drain are available, special guide structure makes the flowing gas spin properly to seperate the water from compressed air and filter solid particals efficiently.

Specification


Type	DC100-M5、01	DC200-01、02、03	DC400-03、04、06	DC600-06、08
Port Size	M5.1/8''	1/8''、1/4''、3/8''	3/8''、1/2''、3/4''	3/4''、1''
Gauge thread	M5	1/8''	1/4''	1/4''
Fluid	Compresses Air
Operating Pressure Range	0.15~0.85	0.15~1.2
Max.Flow Rate(L/min)	500	1700	3500	11500
Ambient temperature(°c)	-10~60
Filter Precision	5um or 40um
Cup Materials	Polycarbonate

Pneumatic Air Preparation Units DC Series Air Filter Regulator Lubricator 4

D Series Air Preparation Manufactuer Air Filter DC 200-01 7

D Series Air Preparation Manufactuer Air Filter DC 200-01 8

D Series Air Preparation Manufactuer Air Filter DC 200-01 9
