High Force Multi-position Compact Cylinder NTA SDAP Automation of Machines

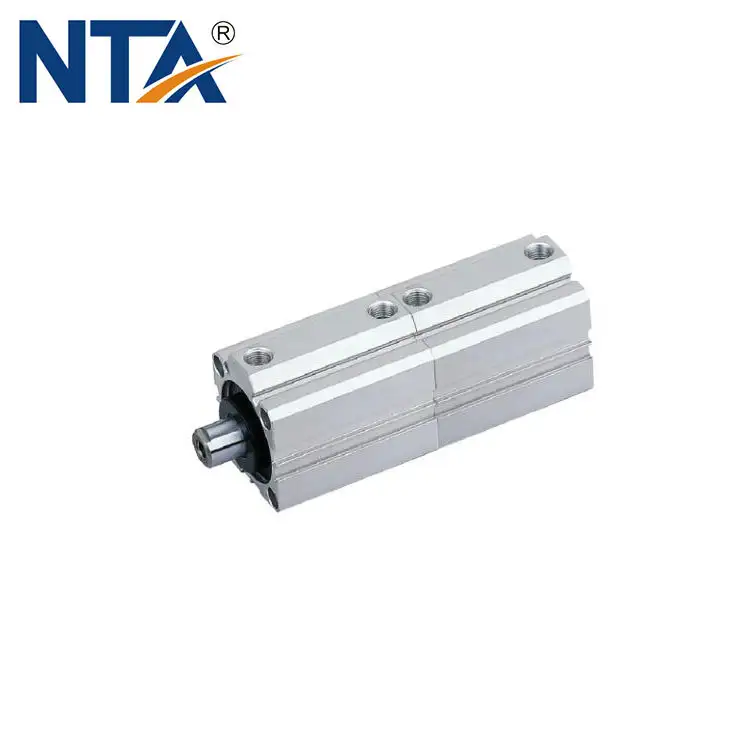

NTA series SDAP multi-position tandem compact air cylinder is connected by two SDA compact cylinders arranged in linear for doubling the pushing force in both directions of stroke.Both of the tandem have magnetic pistons and can be sensed by pneumatic cylinder auto switch. The sensors can be easily mounted on 4 cylinder surfaces without any other accessories. Only one piston rod is visible with this cylinder, it moves to different locations in one direction. Welcome to visit www.titan-automation.com

SEND INQUIRY NOW

Bore ID range

25mm~100mm

Motion

Double acting

Fluid

Compressed air

Working pressure

0.1~1.0MPa

SEND INQUIRY NOW

Product Details

Specification

How to order


Drawings

Basic Information

Year Established

--
Business Type

--
Country / Region

--
Main Industry

--
Main Products

--
Enterprise Legal Person

--
Total Employees

--
Annual Output Value

--
Export Market

--
Cooperated Customers

--

Compressed Air Compact Cylinder Price NTA ADVU ISO 15552 With Built in Magnet

NTA manufactures pneumatic compact cylinders that converting compressed air energy to be linear movement. This automatic pneumatic cylinder follows the ISO 6431 standard with bore diameters of 12mm~125mm. We are also able to design according to customers' requirements, just tell us your idea.We also have solutions with a magnetic built-in piston for position feedback by using together with electronic magnet sensors or cylinder reed switch. NTA is one of the best pneumatics brand selling in USA, Canada, Germany, UK and other European countries.The main advantages are their super compact dimensions and light weight. They are appropriate to use in limited space applications. The ISO15552 standard has bumper cushions on front and rear cap.Please contact NTA team for more technical informations
Single Acting Double Acting Compact Pneumatic Cylinder CQ2 Series

NTA Series CQ2 square body economical space saving compact air cylinder is suitable for a variety of applications,compact extruded cylinder barrels and end caps are hard anodized, extruded aluminum and are factory lubricated for best performance and reliability.The cylinders are compact and up to 30% lighter than interchangeable cylinders from other pneumatic parts suppliers. Auto switch mounting slots are built on 4 sides of the bodies, all series include a built-in magnet in the piston, steel piston rod is hard chrome plated.They can be used for clamping, ejecting, blocking, pushing/pulling, lifting, pick-up motion, product assembly, stamping, and tensioning applications. Our double-acting compact air ram cylinders use compressed air for both the extension and retraction of the piston, single-acting compact cylinder pneumatic use compressed air for extension and spring force to retract piston or the opposite way.
Low Profile Pneumatic Compact Cylinder SDA for Robotics and Automation

NTA series SDA square compact pneumatic cylinder is a light weight, space saving, it is designed for applications where cylinder length is critical. It is ideal for simple assembly and clamping movements, narrow installation space, and short strokes.Bore diameter ranges from 12mm to100mm, stroke length from 5mm to 50mm.NTA series SDA flat pneumatic cylinder designed for innovative, compact structure and easy to clean.The sensors can be mounted quickly and easily on 4 surfaces and over the complete cylinder lengths.Cylinder barrel consists of a extruded aluminium profile, front and rear covers are pressed in the barrel, it is easy to clean and preventing the accumulation of dusts.Threaded through-holes in 4 corners allow to install short stroke pneumatic cylinder directly to equipments, all range with built in magnet on piston so you can use auto swtiches to control extending or retracting.Mounting options: Clevis foot mounting, direct mounting.Welcome to contact sales@titan-automation.com
Multi-pressure Compact Pneumatic Cylinder NTA SDAT for Industrial Processes

NTA series SDAT multi force compact air cylinder is a cylinder design defined by a series of compact air cylinders by connecting two,three or MAX four pistons in series, the force of the cylinder can be multiplied accordingly. SDAT high force pneumatic pusher cylinder provides 2,3 or 4 times of force by connecting 2,3 or 4 cylinders,the accumulative force is transmitted to the first piston rod. It uses PU or NBR sealings to reach good sealing performance, both with magnet ring or without magnet ring types are optional, auto switch slots are located on 4 surfaces. Both front cap and rear cap has a fixed bumper to reduce the impact force for cylinder. Welcome to contact us for more prices.
