Air Gripper Pneumatic Cylinder NTA MHY Series for Industrial Robots 1
Air Gripper Pneumatic Cylinder NTA MHY Series for Industrial Robots 1

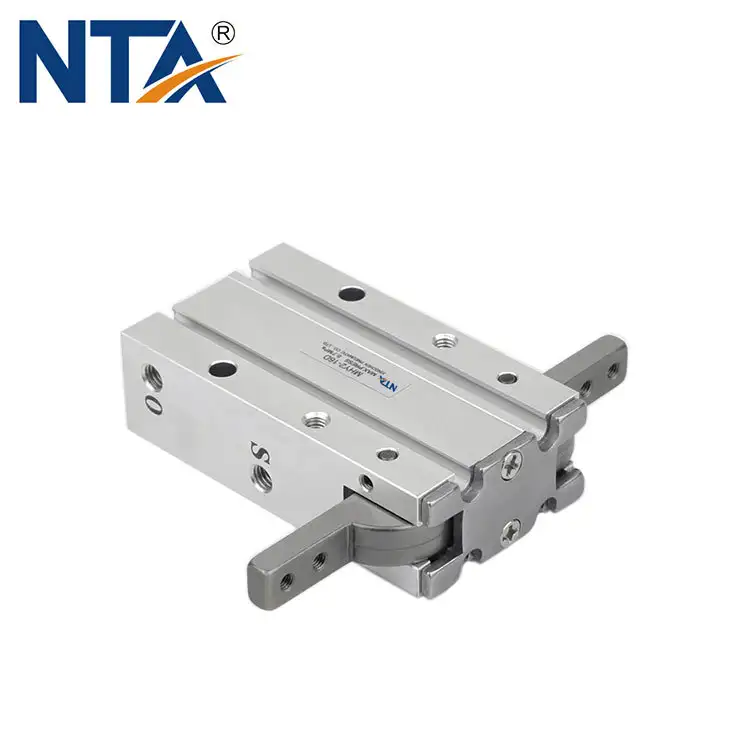

Air Gripper Pneumatic Cylinder NTA MHY Series for Industrial Robots

NTA series MHY 180° pivot open and close type mini pneumatic gripper also called pneumatic finger equipped with a double acting piston attached to a cross bar by a connecting rod. The linear movement from the cylinder is transfered  through a double toggle link mechanism to angular movement of the jaws.Piston body is hard anodized, there are four  sensor slots on two surfaces, pivot pins made in hardened steel reduces friction and wear.If you want to buy pneumatic collet gripper, please feel free to contact us sales@titan-automation.com, telephone&whatsapp number 008613616569784
Bore ID range
10mm~25mm
Motion
Double acting
Fluid
Compressed air
Working pressure
0.1~0.6MPa

    oops...!

    no product data.

    Go to homepage

    Specification

    Air Gripper Pneumatic Cylinder NTA MHY Series for Industrial Robots 2

    Air Gripper Pneumatic Cylinder NTA MHY Series for Industrial Robots 3

    How to order


    Drawings

    Air Gripper Pneumatic Cylinder NTA MHY Series for Industrial Robots 5

    Air Gripper Pneumatic Cylinder NTA MHY Series for Industrial Robots 6

    Air Gripper Pneumatic Cylinder NTA MHY Series for Industrial Robots 7

    Air Gripper Pneumatic Cylinder NTA MHY Series for Industrial Robots 8

    Air Gripper Pneumatic Cylinder NTA MHY Series for Industrial Robots 9

    Air Gripper Pneumatic Cylinder NTA MHY Series for Industrial Robots 10

    Air Gripper Pneumatic Cylinder NTA MHY Series for Industrial Robots 11

    Air Gripper Pneumatic Cylinder NTA MHY Series for Industrial Robots 12

    Air Gripper Pneumatic Cylinder NTA MHY Series for Industrial Robots 13

    Air Gripper Pneumatic Cylinder NTA MHY Series for Industrial Robots 14







    Recommended
    3 Finger Round Body Pneumatic Gripper MHS for Round Workpiece
    NTA series MHS pneumatic 3 finger grippers are vertically compact and lightweight due to the wedge shaped cam construction. They are suitable for gripping cylindrical workpieces, loading or unloading work pieces from the chuck of a lathe. There are two slots for mounting reed switches, its round design saves mounting space while providing a high holding force. Please feel free to contact us for pneumatic gripper kit prices, sales@titan-automation.com, telephone&whatsapp number 008613616569784
    Pneumatic Parallel Grippers NTA MHZ for Factory Automation
    NTA series MHZ mechanical gripper have true parallel motion that is actuated by a double acting air cylinder, it has linear guide improves rigidity and accuracy, MHZ parallel style has compact design and light weight with high dgree of mounting flexibility. Finger positions can be selected,  bore diameters cover 6mm, 10mm, 16mm, 20mm, 25mm, 32mm, 40mm. The NTA series MHZ pneumatic cylinder gripper is widely used on industrial robots, general machines, bottling, conveyer (handling) equipment, biofuels, packaging machines etc. Please contact us for different types of pneumatic linear grippers, email sales@titan-automation.com, telephone&whatsapp number 008613616569784
    Low Profile Air Gripper MHF with Strong Gripping Force
    NTA series MHF linear low profile air gripper is a low profile and space saving designing parallel open and close type actuator gripper, it improved accuracy with smooth operation. MHF pneumatic expansion gripper is a line of parallel grippers that features synchronized or compliant motion with two opposing pistons that share a common bore. Auto switches are mounted on slots on two sides of the cylinder, space-saving low-profile design,  reduced moment generation, improved accuracy with smooth operation, high degree of mounting flexibility with strong gripping force. Please feel free to contact us sales@titan-automation.com, telephone&whatsapp number 008613616569784
    Pneumatic Wide Parallel Compact Gripper MHL with Large Holding Force
    NTA series MHL wide parallel open and close air gripper has linear guide improves rigidity and accuracy. The series MHL parallel grippers utilize independent pistons to open and close its jaws, this long stroke pneumatic gripper is designed for applications that need to grip a big width object, that requires the long travel, the new version MHL motion is synchronized by a rack and gear construction. The double construction makes the pneumatic expanding gripper with a large holding force. Piston has a magnet ring for position sensing. Please feel free to contact us sales@titan-automation.com, telephone&whatsapp number 008613616569784
