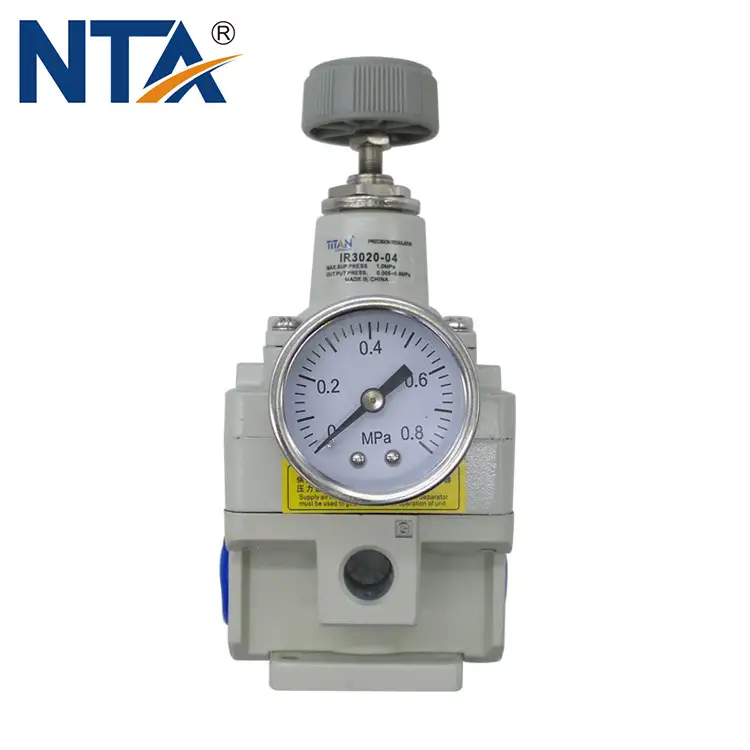

IR3020-04

0.15~1.2MPa
                               500~11500 L/min
                               Compressed air
                               5μm or 40μm
                               M5 ·G1/8

Series NTP round body heavy duty tie rod compact cylinders also known as pancake cylinders are perfect for space saving applications, they are also ideal for applications where high force and shorter stroke are needed. These cylinders can mount in the tight spaces, they can offer punch, clamp, lift, bend motions for machine tools, there are 4 through holes both on front and rear cap for mounting against a solid surface. Auto switch is availabe for NTP,  its high load bearing capacity, low friction coefficient, extremely smooth running, highly reliable performance and long operate life time allows our NTP round compact cylinders interchangeable with Bimba flat 1 pneumatic cylinder and Parker LP/LPM low profile air cylinders.

 NTA CM2 non-repairable round stainless steel air cylinder, with BSPP,BSPT or NPT threads connections. Long lasting service life time with self-adjusting end-position cushioning and extensive mounting accessories,good running performance .This pneumatic roundline cylinder uses stainless steel barrel corrosion resistant for aggressive ambient conditions. With cleaning-friendly structure, it is optimized for demanding use.Their slim design makes them particularly suitable for compact multiple pneumatic systems, constructed with stainless steel bodies and rolled-in high strength on front and end aluminum caps with full flow ports.To minimize friction, the inside of the barrel is polished to a mirror finish and all are pre-lubricated for optimum working performance and long, reliable life. NTA offers wide range of air powered automation elements with air pressure ranges from -12.5~580 psi. Welcome to contact us to find a product to meet almost any application requirements and we ensure ...

NTA series SCG1 all stainless steel round pneumatic cylinders are designed for corrosion prevention, chemical environments, food equipments, beverages and medical equipments where low-friction, and excellent wear characteristics are required, these cylinders withstand toughest wash down applications. SCG1 stainless steel round body air cylinders have an all-stainless exterior with 304 stainless steel cylinder caps ,piston rod, and nut for outstanding corrosion resistance performance. Its repairable design with thread connection and non-repairable structure with rolling depression connection, single acting and double acting actuations are optional. You can use cylinders together with our direction control valve, rapid air fittings, throttle control valve, PU tube, mufflers and other pneumatic parts.
