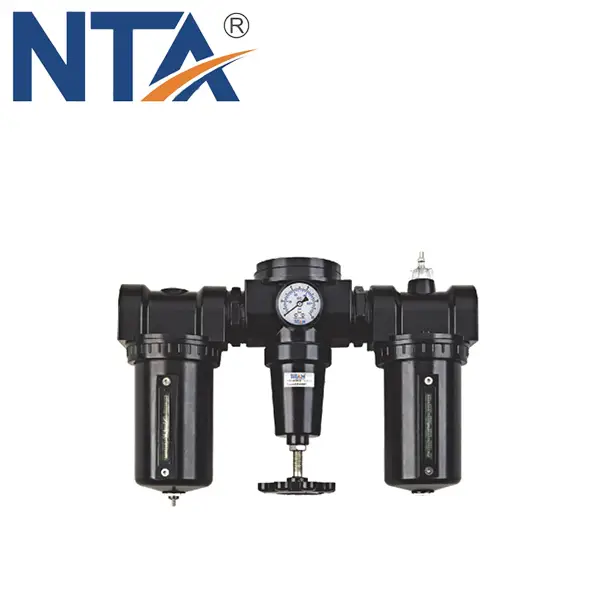

AC Big Flowrate Filter Regulator Lubricator
NTA AC big flowrate filter regulator lubricator is a big size integrated compressed air filter, compressed air pressure regulator and lubricator units made in China, it is designed for applications which demand large compressed air flowrate. It is a reliable compressed air preparation for applications in uncritical environments, freely combinable within the NTA A series big flowratelarge size FRL. Plastic bow and plastic bow with metal bow guard are optional for AC900, port thread 1-1/2'' and 2''. Working pressure from 0.15MPa to 0.85MPa. Grade of filtration 40 µm. Max flowrate 17500L/min. Differential pressure drain and auto drain are available, special guide structure makes the flowing gas spin properly to seperate the water from compressed air and filter solid particals efficiently. The complete series of filter regulator lubricator is offered with pressure gauge.
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.

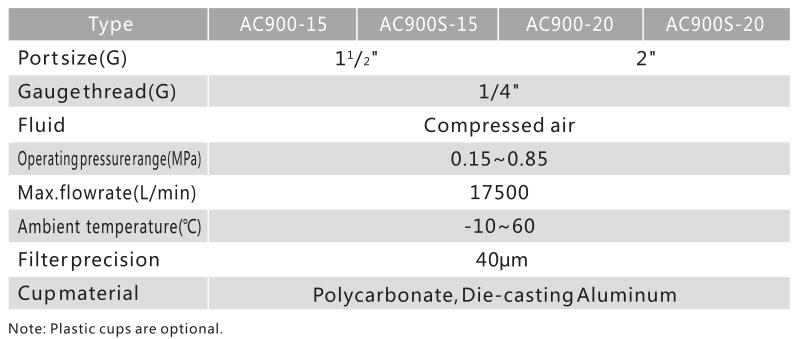

Specification
How to order

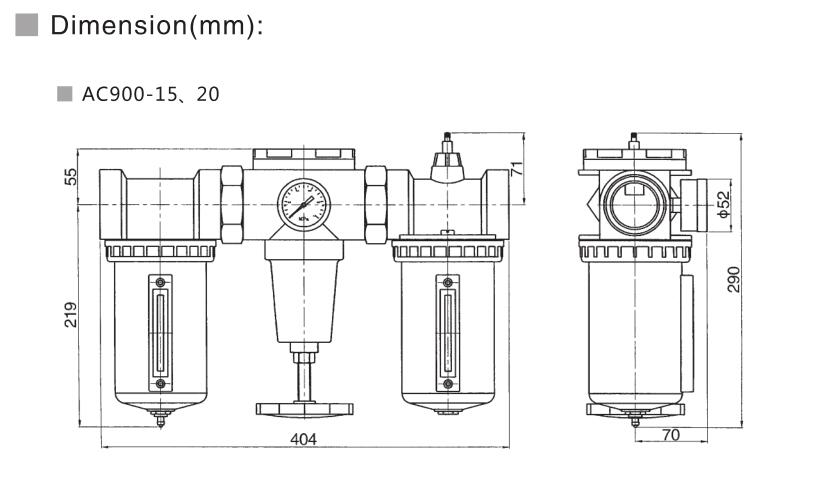

Drawings
{{item.score}} Stars
{{item.pre}}%
{{item.nickname ? (item.nickname.slice(0, 2) + '*****') : item.source === 1 ? 'mall buyer' : '--'}}
{{item.comment_time}}
Review in the {{item.country}}
{{itemAttr.params_key}}: {{itemAttr.params_value}}
NTA AR big flowrate air regulator is a big size compressed air pressure regulator unit made in China, it is designed for applications which demand large compressed air flowrate. It is a reliable compressed air regulator for applications in uncritical environments, freely combinable within the NTA A series big flowratelarge size FRL. Port thread 1-1/2'' and 2''. Working pressure from 0.15MPa to 0.85MPa. Max flowrate 17500L/min. The complete series of filter regulator lubricator is offered with pressure gauge.
NTA AF big flowrate air filter is a big size industrial air filter unit made in China, it is designed for applications which demand large compressed air flowrate. It is a reliable compressed air preparation for applications in uncritical environments, freely combinable within the NTA A series big flowratelarge size FRL. Plastic bow and plastic bow with metal bow guard are optional for AF900, port thread 1-1/2'' and 2''. Working pressure from 0.15MPa to 0.85MPa. Grade of filtration 40 µm. Max flowrate 17500L/min. Differential pressure drain and auto drain are available, special guide structure makes the flowing gas spin properly to seperate the water from compressed air and filter solid particals efficiently. The complete series of filter regulator lubricator is offered with pressure gauge.
NTA AC big flowrate filter regulator lubricator is a big size integrated compressed air filter, compressed air regulator and lubricator units made in China, it is designed for applications which demand large compressed air flowrate. It is a reliable compressed air preparation for applications in uncritical environments, freely combinable within the NTA A series big flowratelarge size FRL. Plastic bow and plastic bow with metal bow guard are optional for AC901, port thread 1-1/2'' and 2''. Working pressure from 0.15MPa to 0.85MPa. Grade of filtration 40 µm. Max flowrate 17500L/min. Differential pressure drain and auto drain are available, special guide structure makes the flowing gas spin properly to seperate the water from compressed air and filter solid particals efficiently. The complete series of filter regulator lubricator is offered with pressure gauge.
NTA AW big flowrate filter regulator is a big size integrated compressed air filter and compressed air pressure regulator units made in China, it is designed for applications which demand large compressed air flowrate. It is a reliable compressed air preparation for applications in uncritical environments, freely combinable within the NTA A series big flowratelarge size FRL. Plastic bow and plastic bow with metal bow guard are optional for AW900, port thread 1-1/2'' and 2''. Working pressure from 0.15MPa to 0.85MPa. Grade of filtration 40 µm. Max flowrate 17500L/min. Differential pressure drain and auto drain are available, special guide structure makes the flowing gas spin properly to seperate the water from compressed air and filter solid particals efficiently. The complete series of filter regulator lubricator is offered with pressure gauge.
