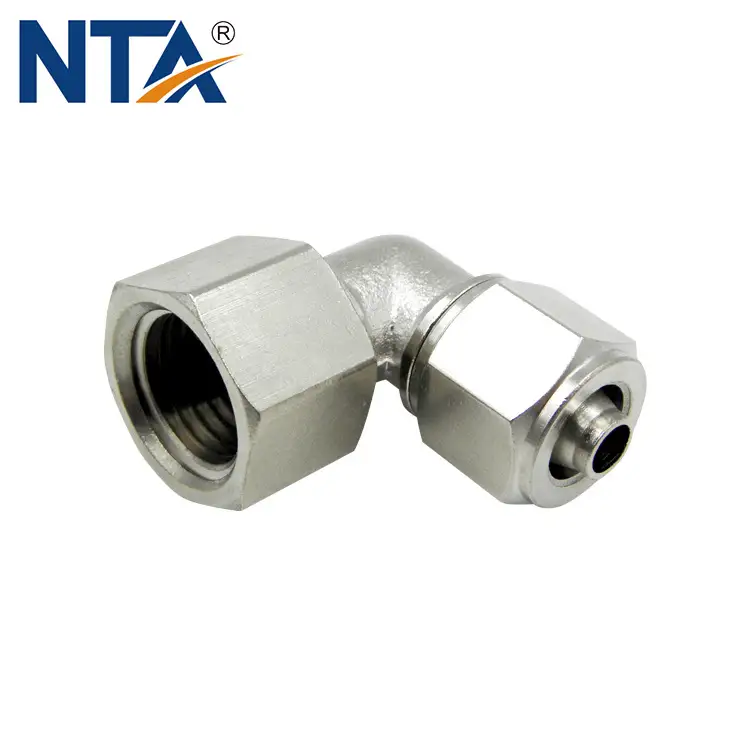

TPLF Nikel Plated Elbow Brass Push on Fittings/ Pneumatic Elbow Push on Fitting/Metal Screw Lock Elbow Fitting/Rapid Elbow Push on Fitting/Insert Fittings

NTA TPLF nikel plated elbow push on fitting/pneumatic elbow push on fitting/metal screw lock elbow fitting/rapid elbow push on fitting is used to pipe a female thread at right angles. can be easily installed. The push-in locking nuts can be tightened both manually and with a spanner even in case of stiff tubes like the PA or the Hytrel Polyester. The special shape of the guiding cone ensures that the tube cannot be accidentally cut. It is suitable for use with nylon and urethane tube. large retaining force, it can be used for a wide range of pressures, excellent resistance to high pressure and vacuum, excellent mechanical performance, Long threads to resist shock and vibration, excellent abrasion and corrosion resistance due to high phosphorus chemical nickel plating, Full flow, minimal pressure drop, one fitting for numerous applications: stock optimisation, manual connection and disconnection, compact and ergonomic. long lifespan, air through and break life cycle number reaching 17.4 million cycles, it is 2.8 to 348 times of lifetime from other Chinese fitting suppliers(0.05 to 6.3 millions cycles). NTA brass push-in fittings are 100% leak-tested in production,guaranteed quality. Metal push-on fitting applications: Food Process, Coffee Machines, In-Plant Automotive, Medical Equipment, Printing Machines, Misting, Welding Robots etc.
