Pneumatic Cylinder with Rod Lock NTA SZ for Factory Automation Systems

NTA SZ series pneumatic rod lock cylinder has a piston rod locking structure, its bore diameter covers 40mm, 50mm, 63mm, 80mm,100mm, 125mm ,160mm and 200mm, stroke length could be made according to customers' needs. They use PU or NBR sealings, magnet ring is installed on piston, two adjustable air cushions are located at front cap and rear cap. SZ series standard 10 bar pneumatic cylinder system all external components manufactured of 316 aliminum, tie Rod construction, working pressure rated to 10bar(145psi), our wide range of options and sizes makes it fast and easy to select a proper cylinder for your automatic equipments.
Bore ID range
40mm~200mm
Motion
Double acting
Fluid
Compresse dair
Working pressure
0.1~1.0MPa

    oops...!

    no product data.

    Go to homepage

    Specification

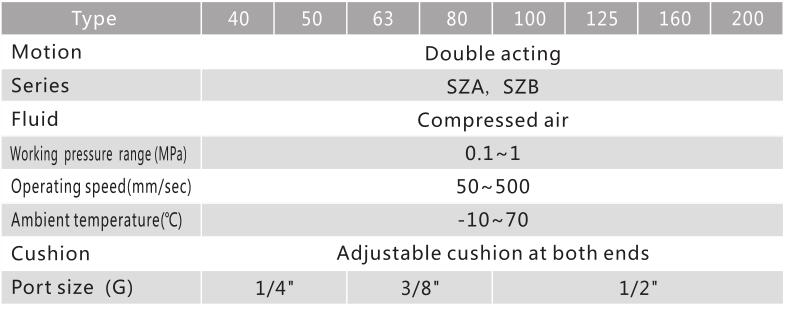

    Pneumatic Cylinder with Rod Lock NTA SZ for Factory Automation Systems 2

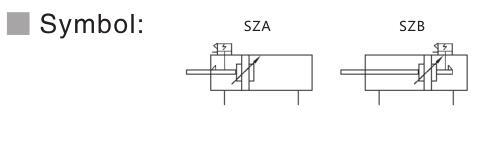

    Pneumatic Cylinder with Rod Lock NTA SZ for Factory Automation Systems 3

    How to order



    Drawings

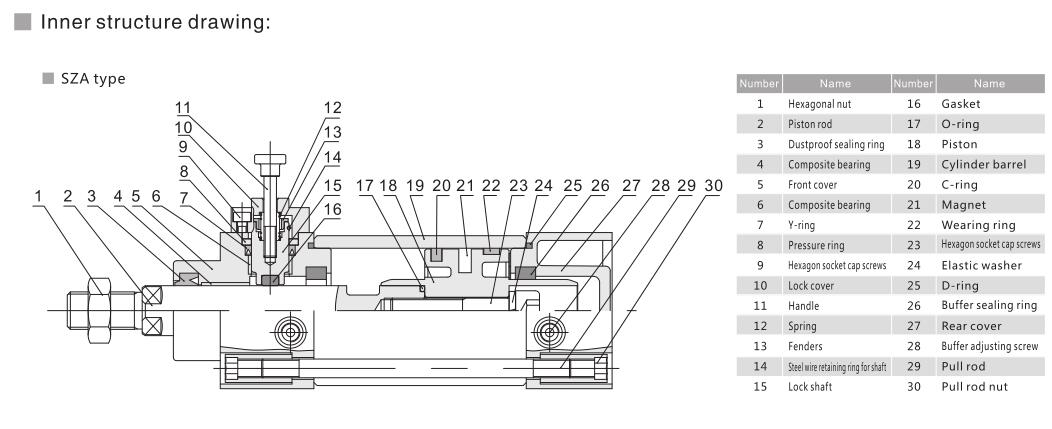

    Pneumatic Cylinder with Rod Lock NTA SZ for Factory Automation Systems 5

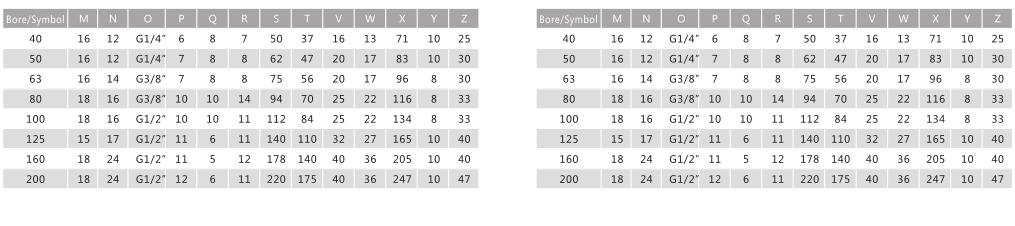

    Pneumatic Cylinder with Rod Lock NTA SZ for Factory Automation Systems 6

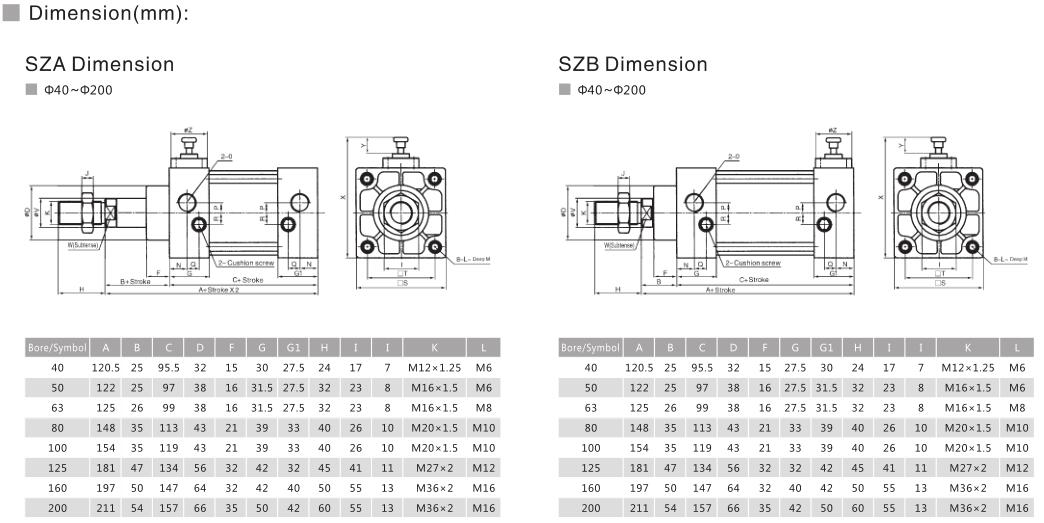

    Pneumatic Cylinder with Rod Lock NTA SZ for Factory Automation Systems 7
