Stainless Steel Round Mini Pneumatic Cylinder NTA MI for Automatic Systems

Stainless Steel Round Mini Pneumatic Cylinder NTA MI for Automatic Systems

NTA MI series stainless steel round body pneumatic cylinders are designed according to ISO6432 standard, its bore diameter covers 8mm, 10mm, 12mm, 16mm,20mm,25mm, 32mm and 40mm , stroke length could be made according to customers' needs. MI series mini air cylinder pneumatic front cap and rear cap has a fixed bumper to reduce the impact force for cylinder.  Except the double acting single rod type, it also has double acting double rod type and double acting double rod stroke adjustable type. MI series is available in 8 bore sizes (8mm, 10mm,12mm, 16mm, 20mm, 25mm, 32mm, 40mm) with storke lengths up to 300mm. We offer different mounting options to fit a variety of applications,mounting front and rear, mounting with hex nut, swivel mounting, foot mounting, flange mounting.Please contact NTA for pneumatic air cylinder price.
SEND INQUIRY NOW
Bore ID range
8mm~40mm
Motion
Double acting
Fluid
Compressed air
Working pressure
0.1~1.0MPa
SEND INQUIRY NOW
  • Product Details

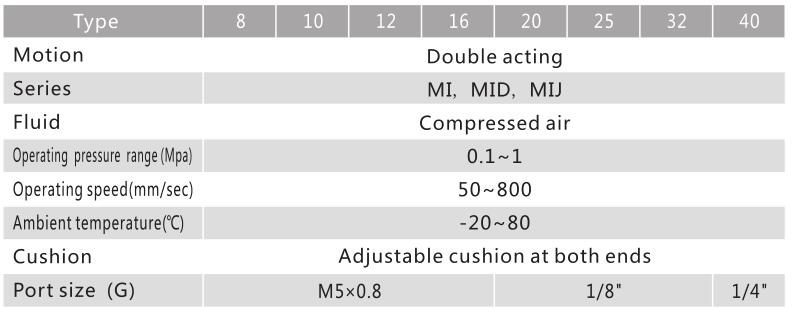

Specification

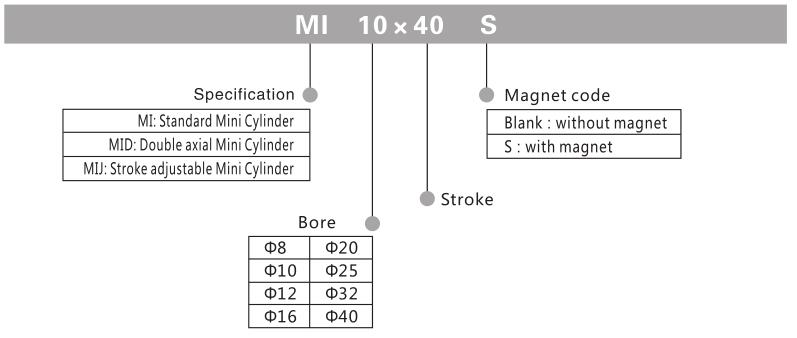

How to order

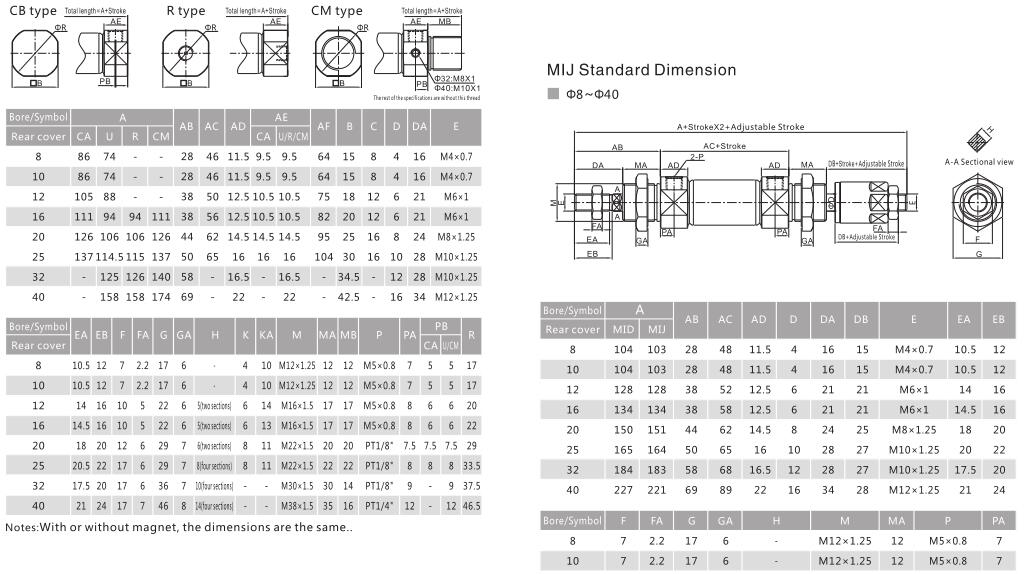

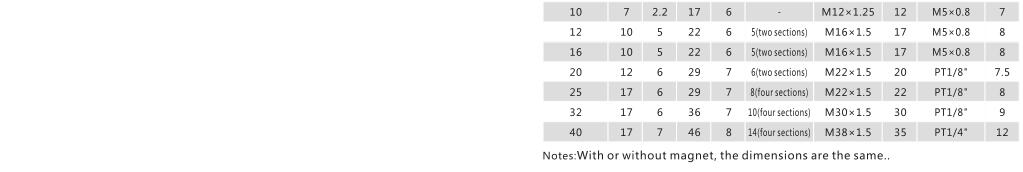

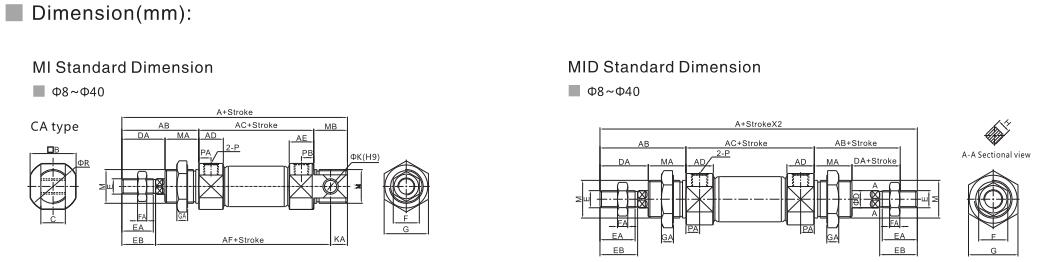

Drawings
