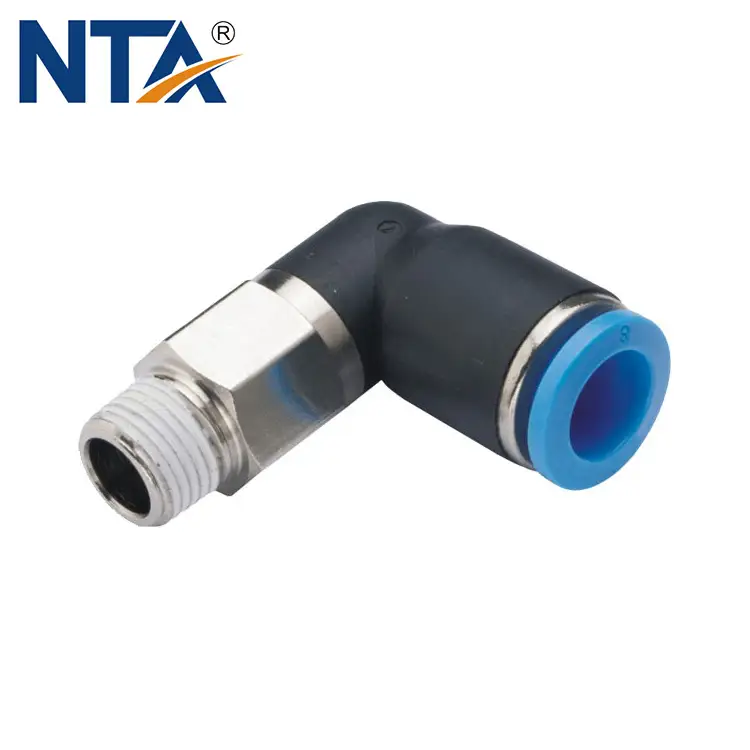

GPL Male Elbow Plastic Push-in Fitting/ Pneumatic Fitting/Compressed Air Fitting/One Touch Tube Fitting

NTA GPL male thread high quality plastic push in elbow fitting is used to pipe a female thread at right angles. It is suitable for use with nylon and urethane tube, large retaining force, it can be used for a wide range of pressures from a low vaccum up to a high pressure of 1.2MPa/174PSI, long lifetime, air through and break life cycle number reaching 17.4 million cycles, it is 2.8 to 348 times of lifetime from other Chinese fitting suppliers(0.05 to 6.3 millions cycles). The air fitting structure(push in fitting/one touch fitting) is quick installation, simple and flexible, space-saving, easy to connect tube by one touch. Even after installation,body part rotates allowing for positioning, all tapered threads are pre-coated with Teflon with fine seal performance.Nickel-Plated brass body ensures anti-corrosion and anti-contamination.Fittings are equipped with a gasket, O-ring and Teflon-treatment on the thread, thread seal re-usable. Sleeve color bue, black, red, grey, green optional. Sleeve shape round. BSPT thread (R thread), BSPP thread(G thread), and NPT threads are available
