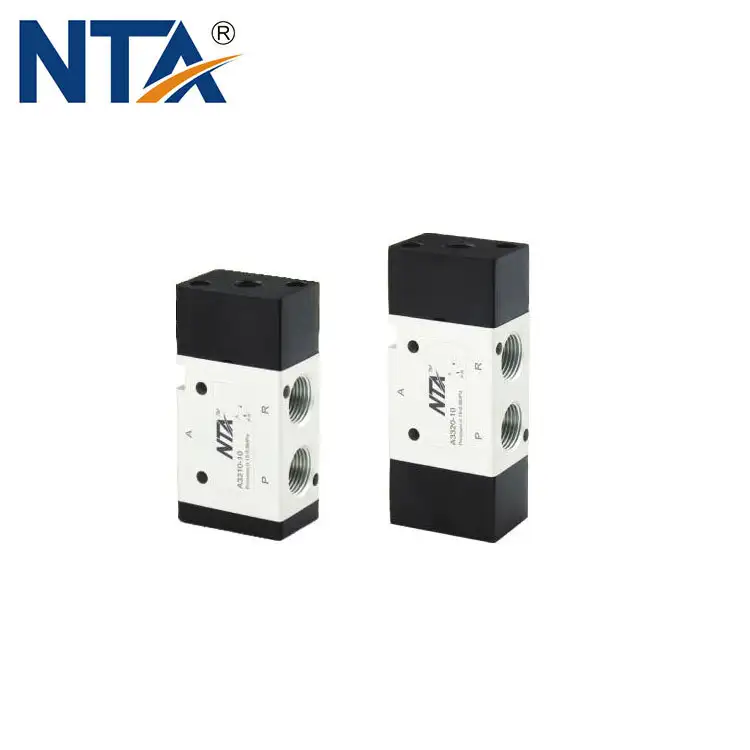

A3300 Series 3/2 Pneumatic Directional Control Valve

A3300 Series 3/2 Pneumatic Directional Control Valve

0.15~0.8MPa
3 port 2 position
Air filtered by 40μm filter element
Internal pilot
G1/4·G3/8
SEND INQUIRY NOW
Workingpressure
0.15~0.8MPa
Valvetype
3port2position
Fluid
Airfilteredby40¼mfilterelement
Actingtype
Internalpilot
Portsizte
G1/4·G3/8
SEND INQUIRY NOW
  • Product Details

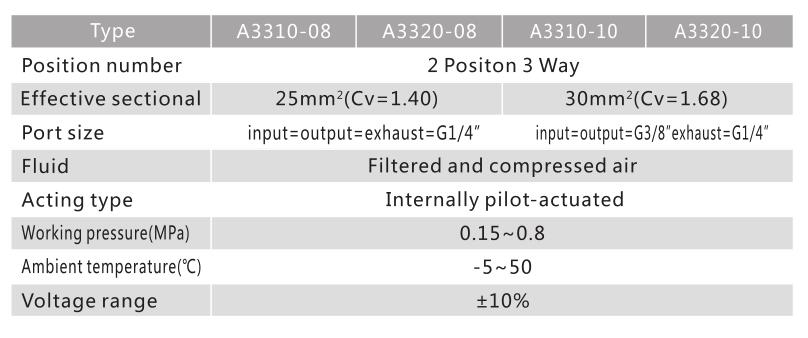

Specification

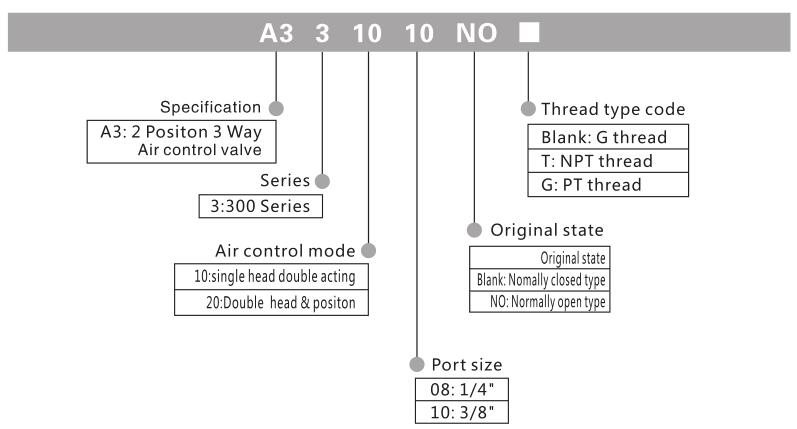

How to order

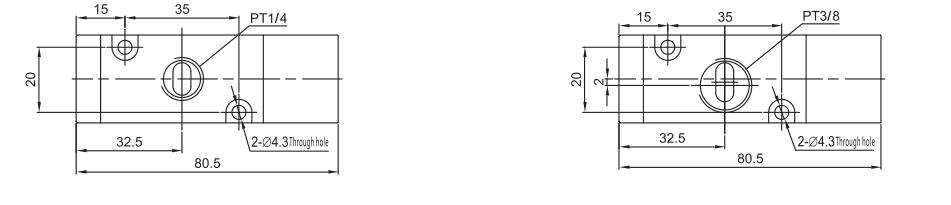

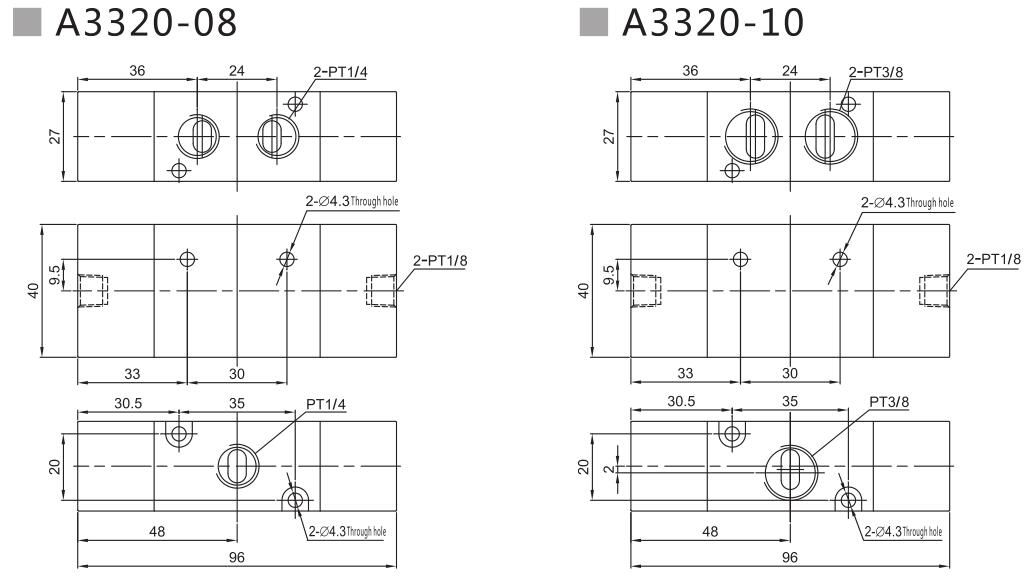

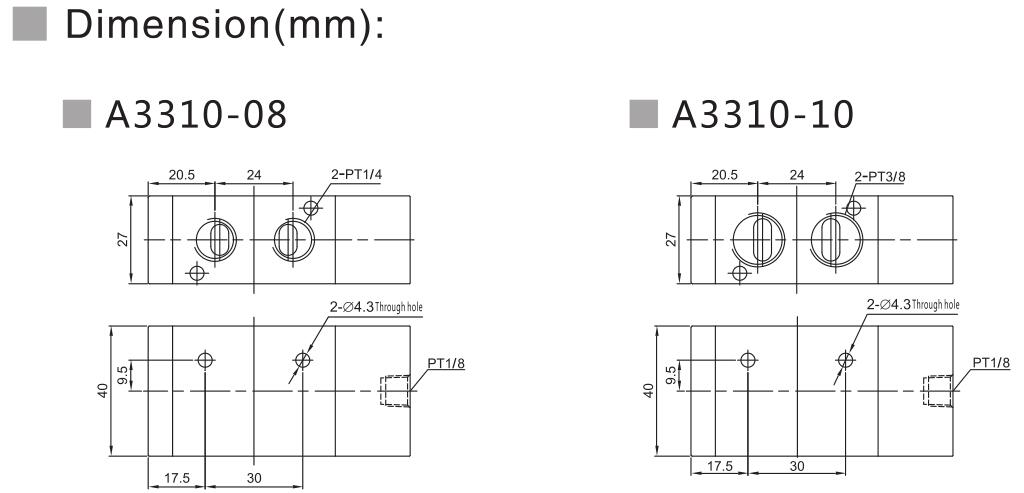

Drawings
