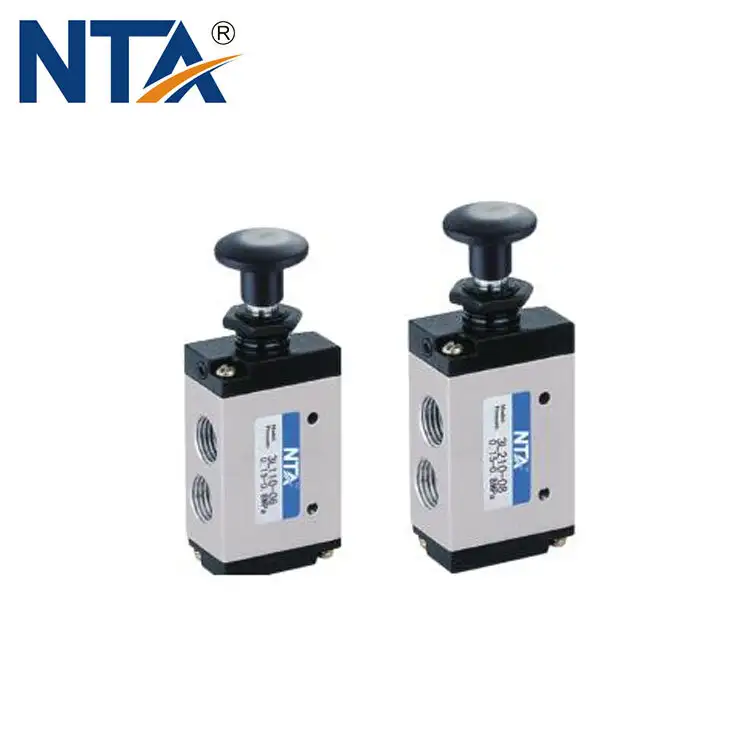

Manual Valve
HOME > PRODUCTS > Directional Valve > Manual Valve
VR
Recommended
Replay
Replay
Recommended
JM Series Mechanical Valve
JM Series Mechanical Valve
HSV Series Hand Valve
HSV Series Hand Valve
FV Series Foot Valve
FV Series Foot Valve
4L Series 5/2 Hand Valve
4L Series 5/2 Hand Valve
3L Series 3/2 Hand Valve

3L Series 3/2 Hand Valve

0~0.8MPa
3 port 2 position
Air filtered by 40μm filter element
Manual type
G1/8·G1/4·G3/8
SEND INQUIRY NOW
Workingpressure
0.15~0.8MPa
Valvetype
3port2position
Fluid
Airfilteredby40¼mfilterelement
Actingtype
Manualtype
Portsizte
G1/8·G1/4·G3/8
SEND INQUIRY NOW
  • Product Details

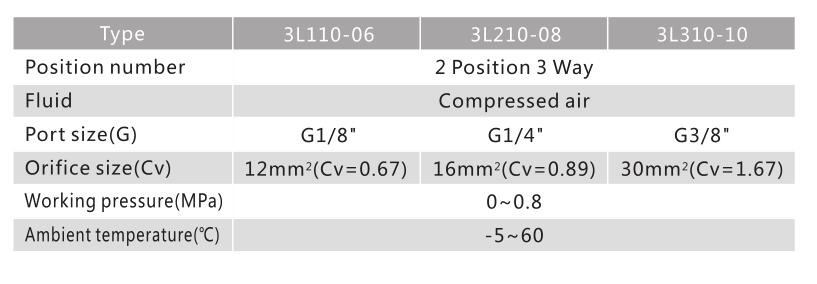

Specification

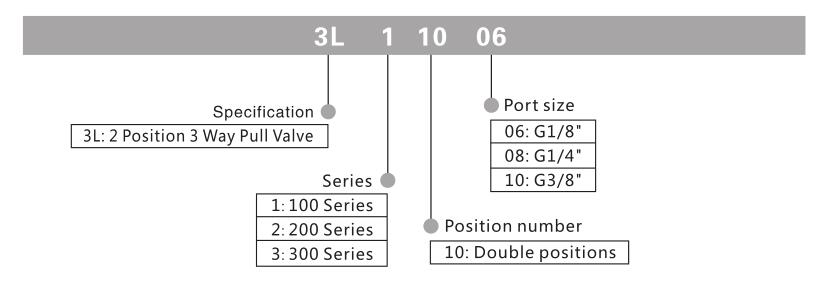

How to order

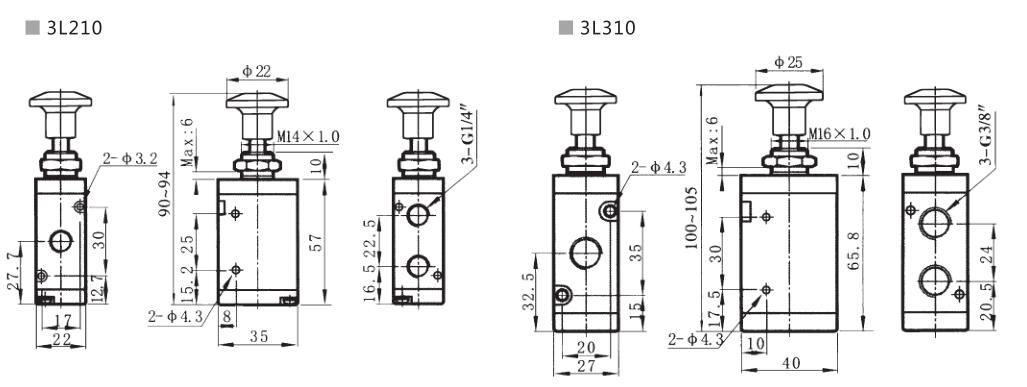

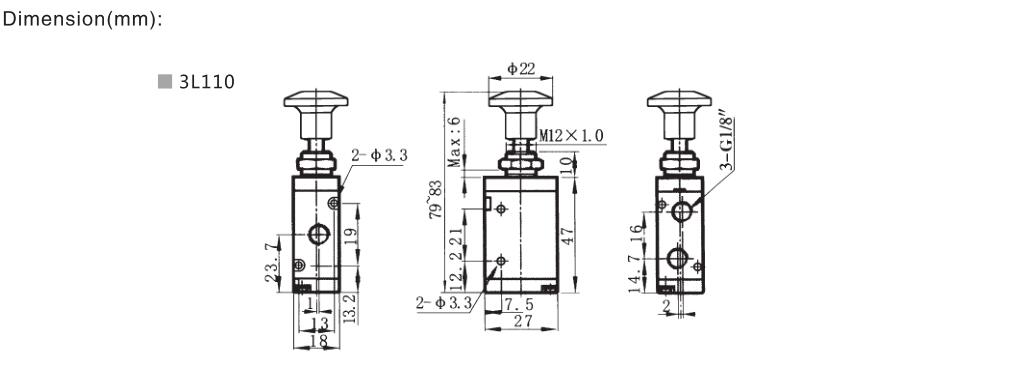

Drawings












































Basic Information
  • Year Established
    --
  • Business Type
    --
  • Country / Region
    --
  • Main Industry
    --
  • Main Products
    --
  • Enterprise Legal Person
    --
  • Total Employees
    --
  • Annual Output Value
    --
  • Export Market
    --
  • Cooperated Customers
    --

Recommended

  • JM Series Mechanical Valve
    JM Series Mechanical Valve
    0~0.8MPa                                2 port 2 position                                Air filtered by 40μm filter element                                Mechanical type                                G1/4
  • HSV Series Hand Valve
    HSV Series Hand Valve
    0.2~0.8MPa                                2 port 2 position                                Air filtered by 40μm filter element                                Manual type                                G1/8·G1/4·G3/8·G1/2·G3/4·G1
  • FV Series Foot Valve
    FV Series Foot Valve
    0~0.8MPa                                3 port 2 position/4 port 2 position                                Air filtered by 40μm filter element                                Mechanical type                                G1/4
  • 4L Series 5/2 Hand Valve
    4L Series 5/2 Hand Valve
    0~0.8MPa                                5 port 2 position                                Air filtered by 40μm filter element                                Manual type                                G1/8·G1/4·G3/8
