MSQF-G Female Slotted(non return) Brass/Metal Elbow Type/Universal Type/Push-lock Type Throttle Control 1
MSQF-G Female Slotted(non return) Brass/Metal Elbow Type/Universal Type/Push-lock Type Throttle Control 1

MSQF-G Female Slotted(non return) Brass/Metal Elbow Type/Universal Type/Push-lock Type Throttle Control

NTA MSQF-G female slottednon return brass/metal elbow type/universal type/push-lock type throttle control valve/air flow control valve/pneumatic flow control valve/air flow controller/flow control regulator is used to control action speed of pneumatic cylinder/pneumatic actuators by control air flowrate in the pneumatic system, it precisely permit the optimal rate of airflow for the smooth cylinder movement of driving devices, the compact design provides a comparable range of speed as the conventional speed control do. Electroless nickel plated type is standard. Uni-directional airflow is available for either exhaust or inlet flow control methods. 360°swivel piping is possible. It is suitable for use with nylon and urethane tube, large retaining force, it can be used for a wide range of pressures from a low vaccum up to a high pressure of 1.6MPa/232PSI, long lifetime, air through and break life cycle number reaching 17.4 million cycles, it is 2.8 to 348 times of lifetime from other Chinese fitting suppliers0.05 to 6.3 millions cycles.  The air fitting structurepush in fitting/one touch fitting  is quick installation, simple and flexible, space-saving, easy to connect tube by one touch.

Workingpressure
0~1.6MPa
Femalethread
M5, 1/8, 1/4, 3/8, 1/2
Fluid
Air
Lifetime
Longlifetime16MillionCycles(closewithFESTO)

    Hoppla...!

    Keine Produktdaten

    Gehen Sie zur Homepage


    Die NTA -Flow -Steuerungsregulatoren bieten eine präzise Anpassung, Genauigkeit und Kompaktheit an, die die Lösung für alle Anwendungen bereitstellen. Diese Durchflussregelungsregulatoren sind mit Polymer-, Nickel-plattierter Messing- oder Aluminiumkörpern, externen oder vertieften Einstellschrauben erhältlich. Durch diesen höheren maximalen Fluss als die Standardregulierungsbehörden und eine präzise Anpassung können Sie diese Produktpalette mit Genauigkeit verbessern.


    Funktionen/Vorteile:

    - Verbesserte Produktivität

    • höherer maximaler Durchfluss als Standardregulatoren

    • Voller Fluss mit minimalem Druckabfall (Modell 7060)

    • optimale Kontrolle der Zylinderstabgeschwindigkeit

    • 100% lecker in der Produktion getestet

    • Datumskodierung, um Qualität und Rückverfolgbarkeit zu gewährleisten

    • Reduzieren Sie Druckluft- und Energieverbrauch


    - Genauigkeit & Leistung

    • Genauige Einstellung für eine genaue Durchflussregelung von Anfang an bis maximale Öffnung

    • Verschiebungsgeschwindigkeit konstanter Zylinderstab

    • Langzeitstabilität des Flusses

    • Reduziertes Gewicht (Polymerversion)

    • Mechanische Festigkeit und Korrosionsbeständigkeit mit einer nickelgeplanten Messingversion


    - Ergonomie & Großer Bereich

    • Externe Einstellschraube: Einfach eingestellt werden ohne Werkzeug und abschließbar

    • Einstellschraube einverkehrt: kompakter und schützt den Einstellmechanismus

    • Uni-Regisseur: Auspuff oder Einlass

    • BIDirektional: Einstellung des Luftstroms in beide Richtungen

    • 360 ° Positionierung

    • NPT -Version auf Anfrage


    Märkte:

    • Fabrikautomatisierung

    • Fahrzeugmontageanlagen

    • Lebensmittel und Getränke

    • Halbleiter

    • Kleidung tragen

    • Verpackungsmaschinerie

    • Schiene


    Anwendungen:

    • Pneumatische Zylinderkontrolle

    • Niederdruck -Druckluftdurchflussregulation


    Technologien:

    • Durchflussregelung

    • BIDirektionaler Regler

    • Uni-Regulierungsbehörde

    • Pneumatische Kontrollen

    • Drehauslass


    Technische Eigenschaften:

    • Flüssigkeiten: Druckluft. Andere Flüssigkeiten: Kontaktieren Sie uns

    • Materialien: Nickelbeschichtete Messing, technisches Polymer, Edelstahl, NBR

    • Druck: Vakuum bis 10 bar

    • Temperatur: 0 ° C bis +70 ° C


    Vorschriften:

    • DI: 2002/95/EC (ROHS)

    • RG: 1907/2006 (REACH)

    • DI: 97/23/EC (PED)


    Produkttypen:

    • Durchflussregler mit Einstellungsschraubenabgasen / Versorgung, männlicher BSPP und metrischer Gewinde

    • BIDirektionaler Durchflussregler mit Einstellschraube, männlicher BSPP und metrischer Gewinde

    • Kompakter Durchflussregler Auspuff / Versorgung, männlicher BSPP / BSPT -Gewinde

    • BIDirektionaler kompakter Durchflussregler, männlicher BSPP / BSPT-Faden

    • Miniaturflussregler Auspuff, männlicher BSPP und metrischer Gewinde / BSPT

    • Miniaturflussreglerversorgung, männliches BSPP und metrischer Gewinde / BSPT

    • BIDirektionaler Miniaturflussregler, männlicher BSPP und metrischer Gewinde

    • Kompakter Durchflussregler Drehauslass Auspuff / Versorgung, männlicher BSPP / BSPT -Faden

    • Kompakter Durchflussregler Drehauslass Auspuff, männlicher BSPT -Faden

    • Miniatur -Schwenk -Auslassdurchflussregler Auspuff / Versorgung, männlicher BSPP und metrischer Gewinde / BSPT

    • Inline-Einweg-Flussregler

    • bidirektionaler Inline-Durchflussregler

    • Panel-montierbare In-Line-Einweg-Flussregler

    • Inline-Einweg-Flussregulator, weiblicher BSPP-Thread

    • Clips verbinden

    • Gerade Durchflussregler Auspuff, männlicher BSPP -Gewinde

    • Compact Plug-In-Durchflussregler, Abgas / Versorgung

    • Miniatur-Plug-In-Durchflussregler, Abgas / Versorgung

    • Durchflussregler, Auspuff, männlicher BSPP und metrischer Gewinde

    • Durchflussregler, Abgas, männliches/weibliches BSPP und metrischer Gewinde

    • Durchflussregler mit Messingkompressionsanpassung, Abgas, männlichem BSPP -Faden

    • Kompakter Durchflussregler, Abgas / Versorgung, männliches BSPP -Faden

    • Kompakter Durchflussregler, männlicher BSPP -Thread

    • Miniaturflussregler Auspuff, männlicher BSPP und metrischer Gewinde

    • Kompakter Durchflussregler Auspuff / Versorgung, männliches / weibliches BSPP -Faden

    • Miniaturflussregulierungsbehörde, männliches/weibliches BSPP und metrischer Gewinde

    • Durchflussreglerauspuff mit Messingkompressionsanpassung, männlicher BSPP -Gewinde

    • Panel-montierbare Inline-Durchflussregulator, weibliche BSPP und metrische Gewinde



    • Pa

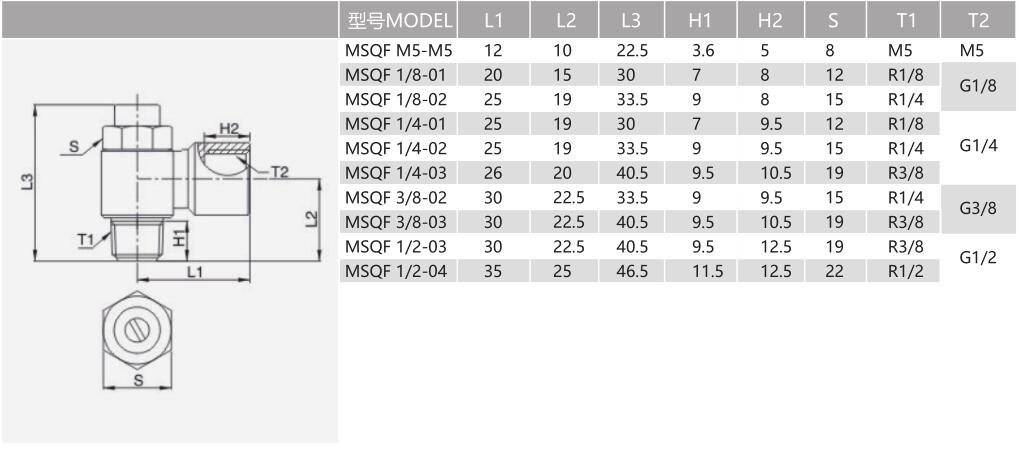

    Wie man bestellt

    MSQF 参数.jpg
