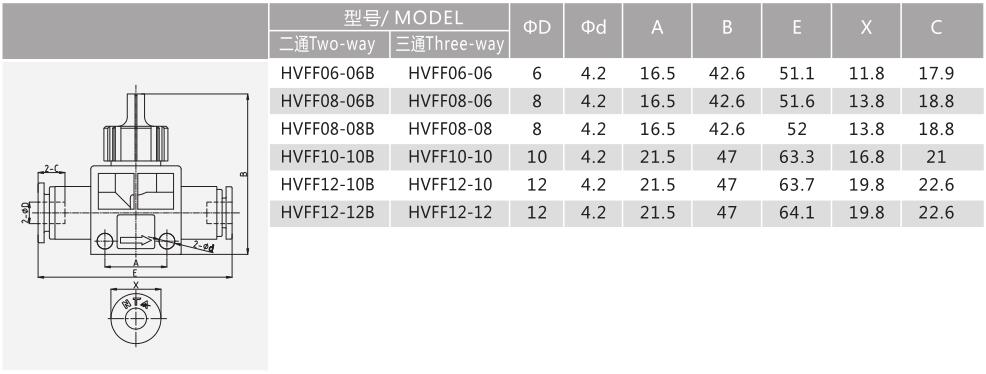

HVFF Shut Off Valve/Finger Valve/Hand Valves/Residual Relief 3 Port Valve

NTA HVFF air flow from push in connector to push in connector high quality shut off valve//Finger Valve/Hand Valves/Residual Relief 3 Port Valve is used to turn on or shut off the compressed air flow in the pneumatic system. Operating force is reduced, poppet valve construction seldom suffers seal defection. The 3-port valve discharges residual pressure from 2A with the handle set at SHUT. It is suitable for use with nylon and urethane tube, large retaining force, it can be used for a wide range of pressures from a low vaccum up to a high pressure of 1.2MPa/174PSI, long lifetime, air through and break life cycle number reaching 17.4 million cycles, it is 2.8 to 348 times of lifetime from other Chinese fitting suppliers0.05 to 6.3 millions cycles. The air fitting structurepush in fitting/one touch fitting is quick installation, simple and flexible, space-saving, easy to connect tube by one touch. All tapered threads are pre-coated with Teflon with fine seal performance.Nickel-Plated brass body ensures anti-corrosion and anti-contamination.Fittings are equipped with a gasket, O-ring and Teflon-treatment on the thread, thread seal re-usable. Sleeve color bue, black, red, grey, green optional. Sleeve shape round.

Workingpressure

0~1.2MPa

TubeOD

4, 6, 8, 10, 12, 16mm

Fluid

Air

Lifetime

Longlifetime16MillionCycles(closewithFESTO)

Anfrage

Eine Rezension schreiben

Spezifikation

Empfohlen

HVSS-G-Absperrventil/Fingerventil/Handventil/Rest Relief 3-Anschlussventil

NTA HVSS-G-Luftstrom vom geraden G/BSPP-Gewinde zu Gewinde, hochwertiges Absperrventil. Die Betriebskraft wird reduziert, die Konstruktion von Pubpet -Ventilen leidet selten nach Versiegelung. Das 3-Port-Ventil entlädt den Restdruck von 2A, wobei der Griff am geschlossen ist. Es ist für die Verwendung mit Nylon- und Urethanrohr und großer Halterkraft geeignet. Es kann für einen weiten Bereich von Drücken von einem niedrigen Impfstoff bis zu einem hohen Druck von 1,2 MPa/174psi, langer Lebensdauer, Luft durch und brechen Lebenszykluszahl, die 17,4 Millionen Zyklen erreicht haben. Die Luftanpassungsstruktur in der Anpassung/eine Touch-Anpassung ist eine schnelle Installation, einfach und flexibel, platzsparend, einfach zu einem Röhrchen mit einer Berührung angeschlossen. Alle sich verjüngten Gewinde werden mit Teflon mit feiner Seal-Leistung vorgeschoben.

HVSS Shut Off Valve/Finger Valve/Hand Valves/Residual Relief 3 Port Valve

NTA HVSS air flow from thread to thread high quality shut off valve//Finger Valve/Hand Valves/Residual Relief 3 Port Valve is used to turn on or shut off the compressed air flow in the pneumatic system. Operating force is reduced, poppet valve construction seldom suffers seal defection. The 3-port valve discharges residual pressure from 2A with the handle set at SHUT. It is suitable for use with nylon and urethane tube, large retaining force, it can be used for a wide range of pressures from a low vaccum up to a high pressure of 1.2MPa/174PSI, long lifetime, air through and break life cycle number reaching 17.4 million cycles, it is 2.8 to 348 times of lifetime from other Chinese fitting suppliers0.05 to 6.3 millions cycles. The air fitting structurepush in fitting/one touch fitting is quick installation, simple and flexible, space-saving, easy to connect tube by one touch. All tapered threads are pre-coated with Teflon with fine seal performance.Nickel-Plated brass body ensures a...

HVSF Shut Off Valve/Finger Valve/Hand Valves/Residual Relief 3 Port Valve

NTA HVSF air flow from thread to push in connector high quality shut off valve//Finger Valve/Hand Valves/Residual Relief 3 Port Valve is used to turn on or shut off the compressed air flow in the pneumatic system. Operating force is reduced, poppet valve construction seldom suffers seal defection. The 3-port valve discharges residual pressure from 2A with the handle set at SHUT. It is suitable for use with nylon and urethane tube, large retaining force, it can be used for a wide range of pressures from a low vaccum up to a high pressure of 1.2MPa/174PSI, long lifetime, air through and break life cycle number reaching 17.4 million cycles, it is 2.8 to 348 times of lifetime from other Chinese fitting suppliers0.05 to 6.3 millions cycles. The air fitting structurepush in fitting/one touch fitting is quick installation, simple and flexible, space-saving, easy to connect tube by one touch. All tapered threads are pre-coated with Teflon with fine seal performance.Nickel-Plated brass bod...

HVFS Shut Off Valve/Finger Valve/Hand Valves/Residual Relief 3 Port Valve

NTA HVFS air flow from push in connector to thread high quality shut off valve//Finger Valve/Hand Valves/Residual Relief 3 Port Valve is used to turn on or shut off the compressed air flow in the pneumatic system. Operating force is reduced, poppet valve construction seldom suffers seal defection. The 3-port valve discharges residual pressure from 2A with the handle set at SHUT. It is suitable for use with nylon and urethane tube, large retaining force, it can be used for a wide range of pressures from a low vaccum up to a high pressure of 1.2MPa/174PSI, long lifetime, air through and break life cycle number reaching 17.4 million cycles, it is 2.8 to 348 times of lifetime from other Chinese fitting suppliers0.05 to 6.3 millions cycles. The air fitting structurepush in fitting/one touch fitting is quick installation, simple and flexible, space-saving, easy to connect tube by one touch. All tapered threads are pre-coated with Teflon with fine seal performance.Nickel-Plated brass bod...
