Tie Rod Pneumatic Cylinder NTA DNG for Industrial Automation for Can Crusher 1
Tie Rod Pneumatic Cylinder NTA DNG for Industrial Automation for Can Crusher 1

Tie Rod Pneumatic Cylinder NTA DNG for Industrial Automation for Can Crusher

DNG series tie rod cylinders pneumatic is a profile cylinder based on ISO6431 standard,it is widely used on European-built machineries for high speed manufacturing and food processing. With fixed or adjustable cushioning optional for customers. , it is a equivalent with piston rod and variants which comply with one or several product standards, stroke length could be made according to customers' needs. DNG series pneumatic cylinder with magnetic piston uses NBR,PU and VITON sealings, magnet ring is installed on piston. Except the double acting single rod type, it also has double acting double rod type and double acting double rod stroke adjustable type. DNG series only uses material from our quanlity approved suppliers, aluminum alloy from top China supplier, sealings from Japan Mitsubishi , USA Parker and Taiwan, all the different large pneumatic cylinder components are machined by high precision CNC we imported from Japan, USA and Germany.Please contact us to find out your local distributors.


Bore ID range
32mm~200mm
Motion
Double acting
Fluid
Compressed air
Working pressure
0.1~1.0MPa

    Hoppla...!

    Keine Produktdaten

    Gehen Sie zur Homepage

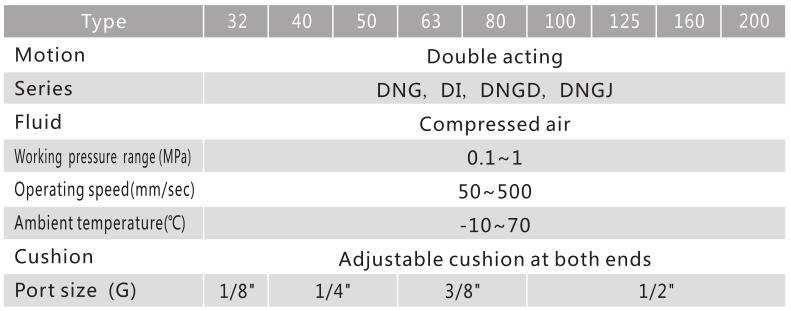

    Spezifikation

    Tie Rod Pneumatic Cylinder NTA DNG for Industrial Automation for Can Crusher 2

    Tie Rod Pneumatic Cylinder NTA DNG for Industrial Automation for Can Crusher 3

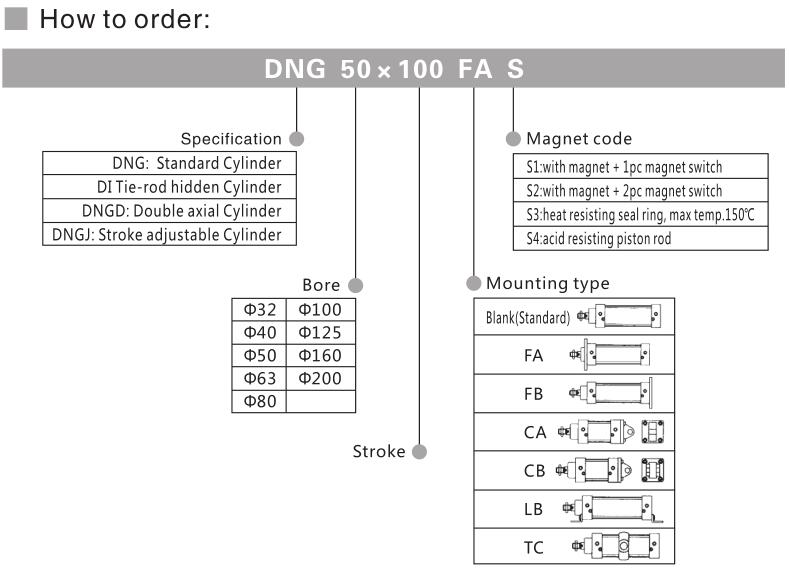

    Wie man bestellt

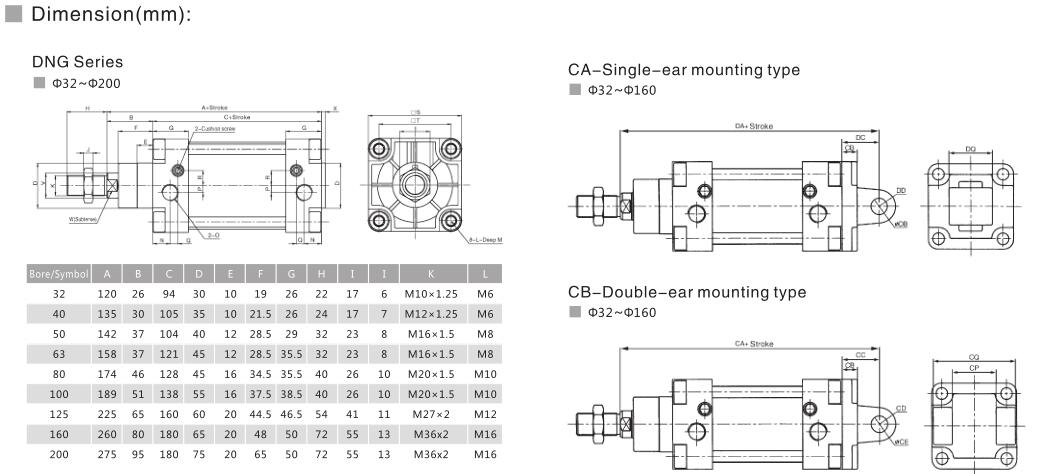

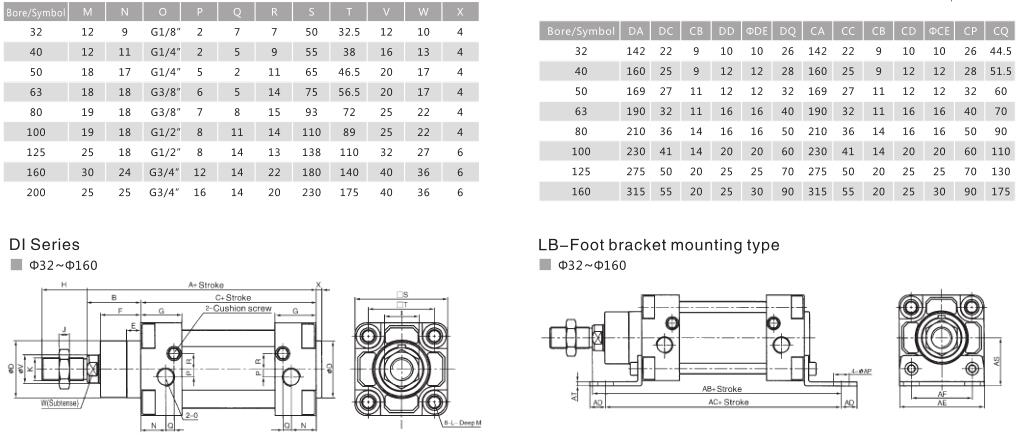

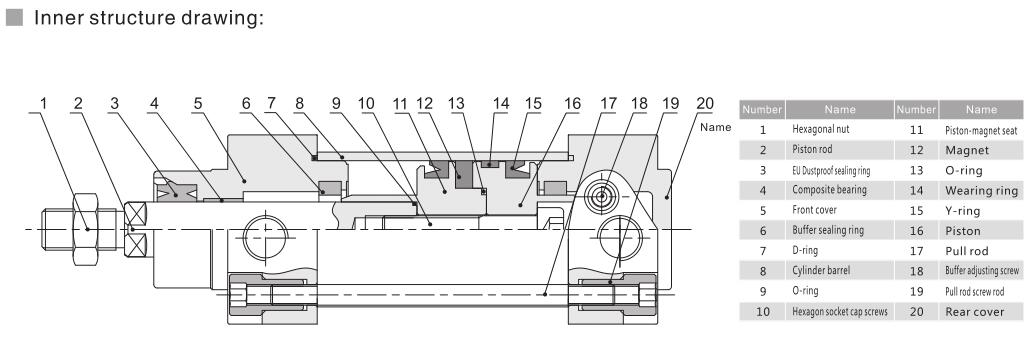

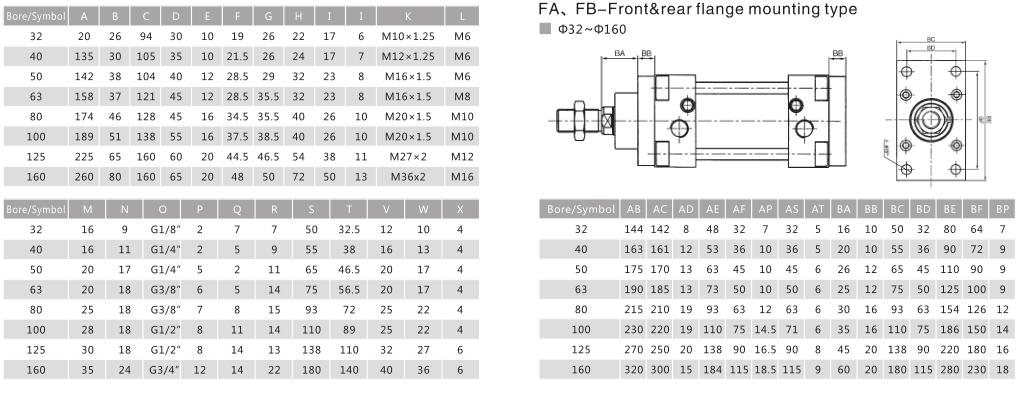

    Zeichnungen

    Tie Rod Pneumatic Cylinder NTA DNG for Industrial Automation for Can Crusher 5

    Tie Rod Pneumatic Cylinder NTA DNG for Industrial Automation for Can Crusher 6

    Tie Rod Pneumatic Cylinder NTA DNG for Industrial Automation for Can Crusher 7

    Tie Rod Pneumatic Cylinder NTA DNG for Industrial Automation for Can Crusher 8






    Empfohlen
    Luft betriebene Zylinder NTA -Serie SC China für die Prozessautomatisierung
    Die SC-Serie billiger pneumatischer Zylinder verfügt über eine Konstruktion von Spurstangen und ist reparierbar. Diese kostengünstige Struktur liefert unseren Kunden eine Kostenreduzierung, die jedoch mit leichtem Gewicht haltbar ist. NTA -Stangenstangenzylinder Der beste Wert in der Industrieautomatisierungsindustrie. Wir sind eines der zuverlässigsten Luftzylinderunternehmen der Welt. Bitte kontaktieren Sie uns, um weitere Informationen über Komponenten zu erhalten, die in einem pneumatischen System verwendet werden
    Große Bohrungsstangenstange Hochleistungs -pneumatische Zylinder NTA für Hochleistungsanwendungen
    NTA bietet den Kunden einen hohen, großen pneumatischen Zylinder mit hoher Starrheit und perfekter Haltbarkeit, die sicherstellen, dass auch in einer schwierigen Umgebung funktioniert. Die Bohrungsdurchmesser 400 mm, 500 mm, 600 mm, 700 mm. Zylinder vorne und hintere Kappen werden aus dem 6061-T6-Aluminiumgießteil bearbeitet, sie werden für Korrosionswiderstand anodiert. Aluminiumfass und Stahlfass sind optional für unterschiedliche Luftdruckanforderungen, die Kolbenstange ist hart verchromt, das Material bietet eine hervorragende Festigkeit für robuste Umgebung. NTA Aluminiumlegierung schwere Luftzylinder ist starke Leistung und leichter, Stangenwischer verwendet hochlebiges Polyurethan. Wenn Sie nach hochwertigen Pneumaitc-Komponenten für leichte Dienst und Hochleistungs-Pneumatik suchen, hat NTA eine, die Ihre Anforderungen sicher erfüllt.
    Numatics Air Cylinder Price  NTA Big Bore QGB for High Temperature Environments
    NTA QGB series big bore tie rod double acting air powered cylinders are manufactured to meet the highest standards of quality and reliability. With multiple different configurations of rod diameter, stroke length, force in or out and different pressure ranges, it is for almost all applications requiring linear motion. Bore diameters from 200mm to 400 mm,it has magnetic piston which allows the autoswitches to sense stroke position.NTA Manufactures one of the most extensive lines of tie rod cylinders in pneumatic industry. The strong designs of NTA pneumatic cylinders have been proven in some of the most exacting industrial environments. 1 ton 5 ton 10 ton pneumatic cylinder.  Our cylinder in pneumatic system for standard temperature -10°C to +70°C, we also supply  -35℃ low temperature air cylinder and +180℃ high temperature pneumatic cylinder options suitable for processing applications in low temperature environment in winter and high temperature environment like aluminium manufactu...
    Hochkraft doppelte pneumatische Zylinder mit Magnetkolben zum Verkauf
    Die NTA -GPM -Serie ist Standard -Doppelaktion Pneumatic Cylinder ist eine Metrikluftzylinder, die sehr eng an NFPA -Zylinder (US -Version) entwirft. Sie sind entweder Einzelakten (Federrückgabe oder Federausdehnung) oder doppelte Wirkung. 4 Zoll 6 -Zoll -Zylinderbohrung Pneumatischer Zylinder 50 mm, 100 mm Bohrung mit 24 Zoll 200 mm 800 mm Hub werden häufig verwendet. Sie verwenden PU -Dichtungen, um einen stabilen höheren Arbeitsdruck zu erreichen. Zwei einstellbare Luftkissen befinden sich an der vorderen Kappe und der hinteren Kappe. Mit Ausnahme des doppelt wirkenden Einzelstabentyps verfügt er auch doppelt wirkende Doppelstabentyp und doppelt wirkende Doppelstabstriche einstellbar. Die GPM -Serie verwendet Material aus unseren quanlity zugelassenen Lieferanten Aluminiumlegierung von Top China -Lieferanten
