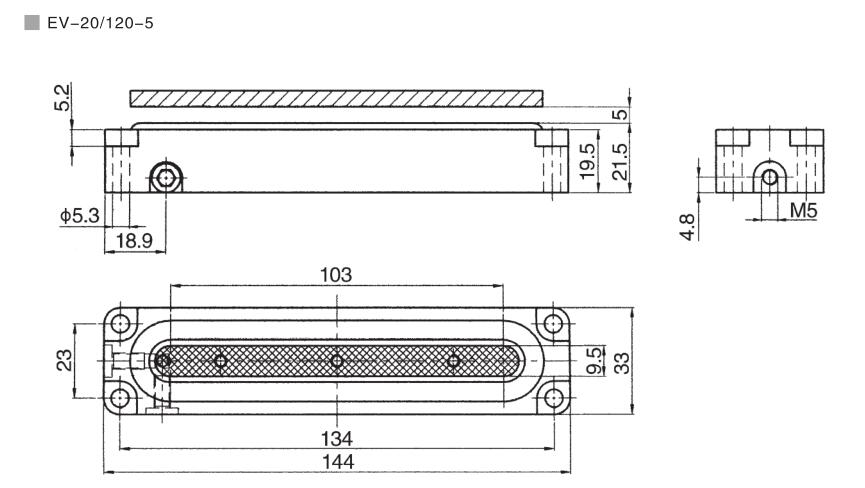

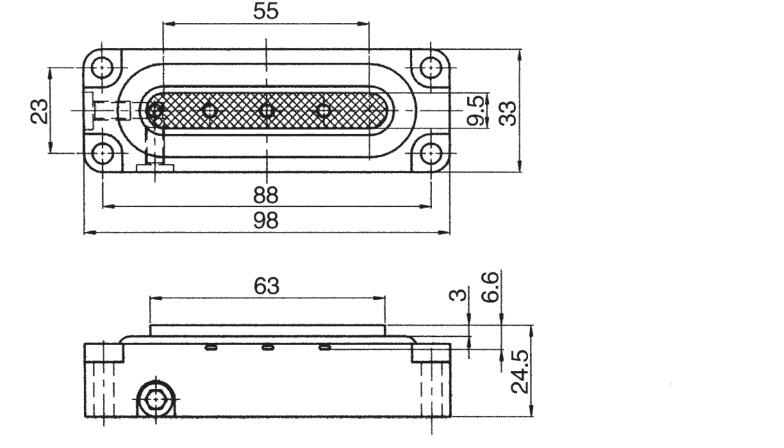

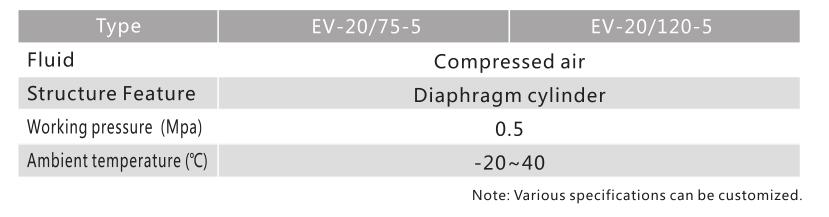

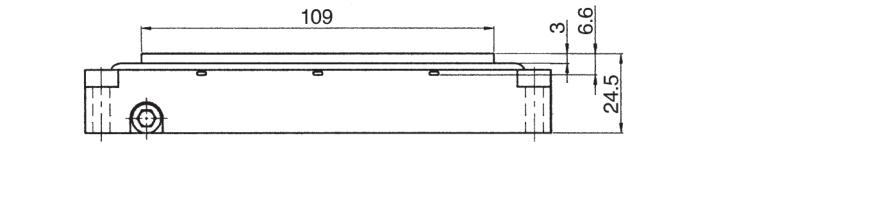

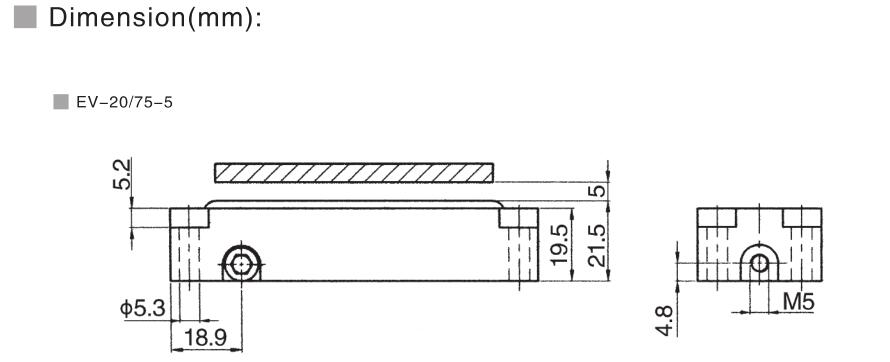

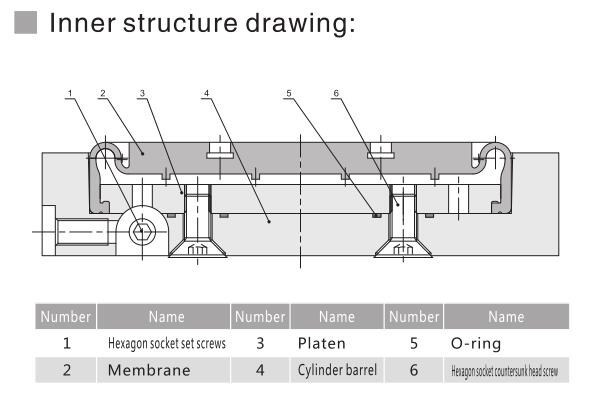

Diaphram Clamping Module NTA EV with Short Stroke

NTA series MK pneumatic swing clamp cylinder combines pneumatic linear actuator and swivel unit in one product. Its bore diameter covers 25mm, 32mm, 40mm, 50mm, 63mm. Swiveling and clamping movements are actuated in one step, ACK pneumatic toggle clamp is double acting, piston with magnet is suitable for using together with NTA pneumatic cylinder limit switch for position sensing. Rotary clamp cylinders are used for clamping workpieces in varieties of applications, they can clamp all kinds of small parts like wooden parts to sheet metal and PCB, they are also used on welding equipments. please contact us via email sales@titan-automation.com

NTA ACK series pneumatic angle cylinder covers bore diameter covers 25mm, 32mm, 40mm, 50mm, 63mm.  NTA ACK series pneumatic angle cylinder uses PU or NBR sealings to reach good sealing performance, rotating angle 90° and 180° are optional. ACK series pneumatic angle cylinder only uses material from our quanlity approved suppliers, aluminum barrel from top China supplier, sealings from Japan Mitsubishi , USA Parker and Taiwan, all the air cylinder components are machined by high precision CNC we imported from Japan, USA and Taiwan. Application: agricultural equipments, car repair equipments, automatic packaging equipments, automatic car washing machine, entertainment robot, beverage filling equipment, CNC lathe, laser process equipment, automobile assembly line, electronic products assembly line, semiconductor equipment etc.

NTA series CU free mount pneumatic cylinder,is space-saving with multiple surfaces capable of mounting directly. Offered in rich variations, bore diameter covers 6mm, 10mm, 16mm, 20mm, 25mm, 32mm.  Series CU free mount pneumatic cylinder uses PU or NBR sealings to reach good sealing performance. The multiple surface direct mounting with a square body and no brackets allows the freedom of the mounting surface.This enables space-saving designs for equipment. Being shorter and lighter, it has variety of ways and compact enough to be screwed on machines directly.Axial mounting, vertical mounting and lateral mounting. There are 4 auto switch slots on 2 surfaces. If you need to know more information about NTA pneumatic pistons, please kindly email to jet@titan-automation.com

NTA series MU small free mount pneumatic cylinder,is a space-saving single rod double acting tiny air cylinder, it is available with 6mm, 8mm,10mm bore diameters, magnet piston allows to use together with auto-switches, the standard cylinder includes switch mounting grooves and rubber bumpers designs. Please feel free to contact NTA for cylinder prices and find out our penumatic components distributors near you.
